Contact for Pricing
Minimum Qty: 2000
Multiplier: 2000
*Contact for lower quantities*
Overview

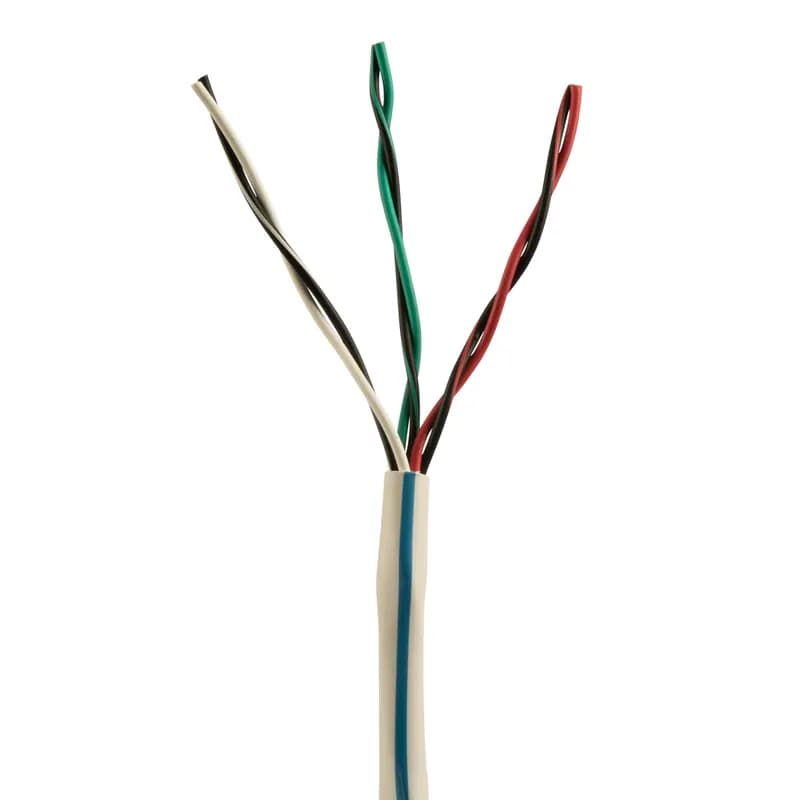

- UL 1400-2 compliant Class 4 Copper Cable
- 16/19 AWG stranded copper conductors, twisted in pairs
- PVC insulation with flame-retardant CMP-rated jacket
- Designed for end-to-end Fault Managed Power Systems (FMPS)
- Suitable for plenum spaces and high-power industrial applications
Specifications
Color | Blue |
Conductor Material | Copper |
Insulation Material | PVC |
Jacket Material | Polyvinyl Chloride (PVC) |
Material | PVC |
Number Of Conductors | 3 |
Outside Diameter | 0.35 in |
Outside Diameter | 8.89 mm |
Series | PXUP |
Size | 16/19 AWG |
Standard | UL-1400-2 (Class 4), NEC Article 725, UL 13 type CL3P NEC Article 726, UL 1400-2 Type CL4P, NEC Article 800, UL 444 CMP |
Temperature Rating | 167 °F |
Type | FMPS Power Cable |
Package Dimensions (L x W x H) | 48 IN x 44 IN x 40 IN |
Package Dimensions (L x W x H) | 121.92 cm x 111.76 cm x 101.6 cm |
Package Weight (Imperial) | 680.0000 L |
Package Weight (Metric) | 308.4480 kg |
PSMDA7004BL-LED
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
BTC0614
Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 6 Str-14 AWG, Length 1-9/64, Width 3/8 Inch, Height 11/16 Inch, 13/64 Bolt Inch HoleFrequently Asked Questions
What standards does this cable comply with?
The cable is UL listed and compliant with UL 1400-2, UL1581, UL2556, and NFPA 70 Article 726 for Class 4 cabling.
What are the cable's conductor specifications?
The conductors are 16/19 AWG stranded tinned copper, insulated with PVC and twisted in pairs.
What are the operating and installation temperature ranges?
Installation temperature is 0ºC to 50ºC (32ºF to 122ºF). Operating temperature is -20ºC to 75ºC (-4ºF to 167ºF).
What is the maximum pulling tension for the cable?
The maximum pulling tension for the cable is 45 lbs.
What is the minimum bend radius for the cable?
The minimum bend radius is 10 times the cable diameter.
What is the voltage rating of the cable?
The voltage rating for the cable, according to UL 1400-2, is 450 Vrms.
What system is this cable designed for?
It is a component of an end-to-end Class 4 Fault Managed Power System (FMPS) and optimized for Panduit's system.
What type of jacket does the cable have?
The cable has a flame retardant (CMP) PVC jacket.
What is the cable's flame rating?
The cable has a CL4P flame rating.
What is the nominal cable diameter?
The nominal cable diameter is 0.350 in. (8.9mm).
