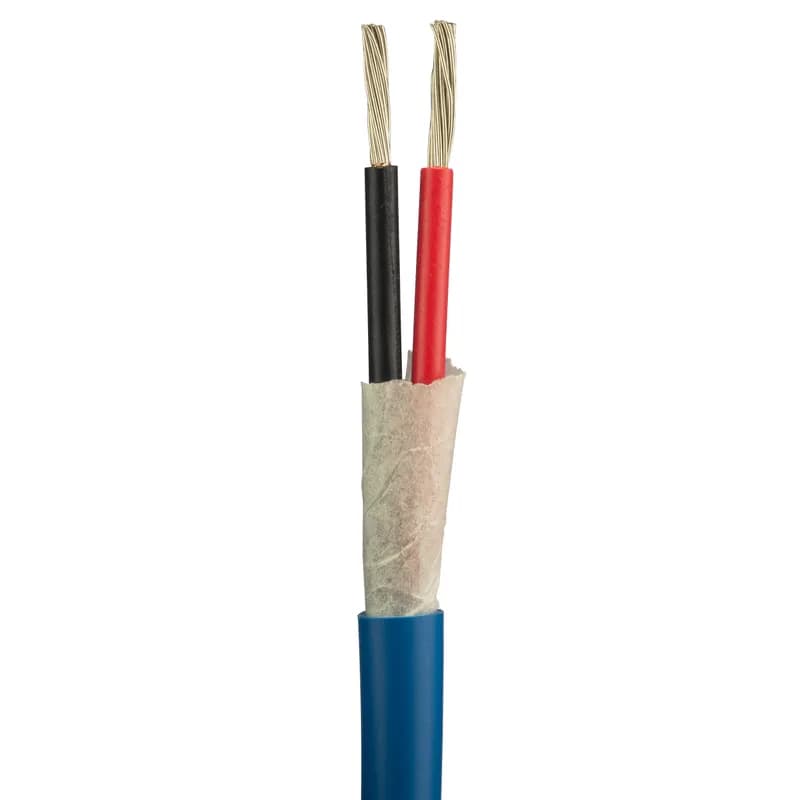

Panduit PXUP118AWH-CQ - Class 4 Copper Cable shall be UL listed and compliant with UL 1400-2 for Class 4 cabling. It shall be a component of an end-to-end Class 4 Fault Managed Power System (FMPS) that efficiently and safely carries significant power at higher voltages over long distances. The conductors shall be 18/19 AWG stranded copper insulated with polyvinyl chloride. The copper conductors shall be twisted in pairs and covered by a flame retardant (CMP) PVC jacket.

Panduit PXUP118AWH-CQ Class 4 Copper Cable shall be UL listed and compliant with UL 1400-2 for Class 4…

UPC: 613056898721


Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 2000

Multiplier: 2000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit PXUP118AWH-CQ is a UL listed Class 4 Copper Cable, specifically designed as a component for an end-to-end Class 4 Fault Managed Power System (FMPS). This system enables the efficient and safe transmission of significant power at higher voltages over extended distances. The cable features 18/19 AWG stranded copper conductors, insulated with polyvinyl chloride for reliable performance. These copper conductors are twisted in pairs to minimize interference and are further protected by a flame retardant (CMP) PVC jacket, ensuring safety and compliance in various installations. The PXUP118AWH-CQ is compliant with UL 1400-2 for Class 4 cabling, underscoring its suitability for advanced power distribution applications where fault management is critical. Its construction is optimized for delivering power reliably and safely, making it a key element in modern power infrastructure. This cable is engineered to meet the stringent requirements of Class 4 cabling standards, providing a robust solution for power delivery needs.
  • UL listed Class 4 Copper Cable
  • Component of end-to-end Class 4 Fault Managed Power System (FMPS)
  • 18/19 AWG stranded copper conductors
  • Polyvinyl chloride insulation
  • Flame retardant (CMP) PVC jacket

Specifications

Conductor Material
Copper
Construction
U/UTP
Insulation Material
PVC
Jacket Material
Polyvinyl Chloride (PVC)
Number Of Conductors
1
Outside Diameter
0.197 in
Outside Diameter
5.0038 mm
Standard
UL-1400-2 (Class 4), NEC Article 725, UL 13 type CL3P NEC Article 726, UL 1400-2 Type CL4P, NEC Article 800, UL 444 CMP
Temperature Rating
167 °F
Type
FMPS Power Cable
Voltage Rating
NA V
Package Dimensions (L x W x H)
48 IN x 44 IN x 40 IN
Package Dimensions (L x W x H)
121.92 cm x 111.76 cm x 101.6 cm
Package Weight (Imperial)
882.0000 L
Package Weight (Metric)
400.0752 kg
