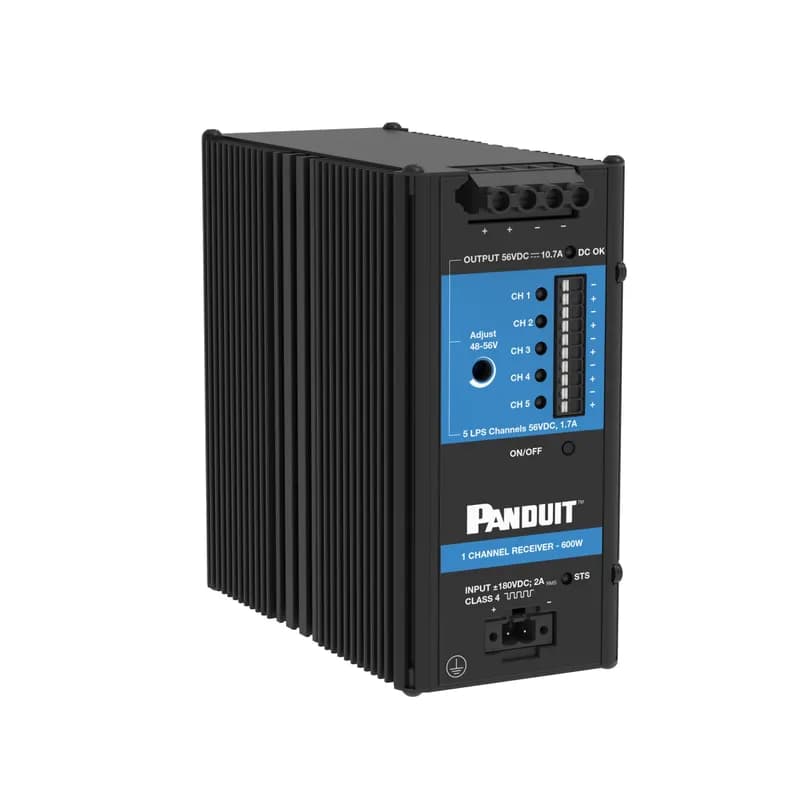

Panduit PXR1AFFNA Our FMPS Class 4 Receiver with 600W, adjustable 48-56VDC output, utilizes one 600W…
UPC: 613056919358
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600W adjustable output (48-56VDC) with five 100W LPS outputs
- Supports up to three transmitter module inputs for scalable power distribution
- DIN mount bracket included for panel installation; compact footprint
- Compatible with ±48VDC-powered devices including cameras, radios, and access controls
Specifications
Connection Type | Connectors |
Connection Type | Integrated Connectors |
Current Rating | 12.5 A (600W / 48V) |
Mounting Type | DIN Mount |
Poles | 1P+G (600W) + 5x 100W LPS |
Series | FMPS Class 4 Receiver |
Standard | UL-1400-1 (Class 4), IEC 62368-1, IEC 61508-1, IEC 61508-2 , EN 55032, FCC 47 CFR Part 15 Subpart B, EN55035, CE, ICES-003, REACH, RoHS Compliant |
Type | Receiver |
Voltage Rating | 48-56 VDC |
Package Dimensions (L x W x H) | 7.87 IN x 7.87 IN x 3.31 IN |
Package Dimensions (L x W x H) | 19.9898 cm x 19.9898 cm x 8.4074 cm |
Package Weight (Imperial) | 3.1000 L |
Package Weight (Metric) | 1.4062 kg |
ACS380-040S-07A2-4
ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
XT2NU3090BFF000XXX
C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A
MPET4-10R
Modular Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - - No contact block
NNC75X75WH2
The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.
UTP6AL1MBU
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Frequently Asked Questions
How many outputs does the PXR1AFFNA have?
It has one 600W output and five 100W LPS outputs.
What is the power rating of each LPS output?
Each of the five LPS outputs is rated at 100W.
What is the output voltage range of the PXR1AFFNA?
The output voltage range is adjustable between 48-56VDC.
Does the PXR1AFFNA include mounting hardware?
Yes, it includes a DIN mount bracket for panel installation.
Is the PXR1AFFNA Class 4 PoE compliant?
Yes, the PXR1AFFNA is designed for Class 4 PoE applications.
