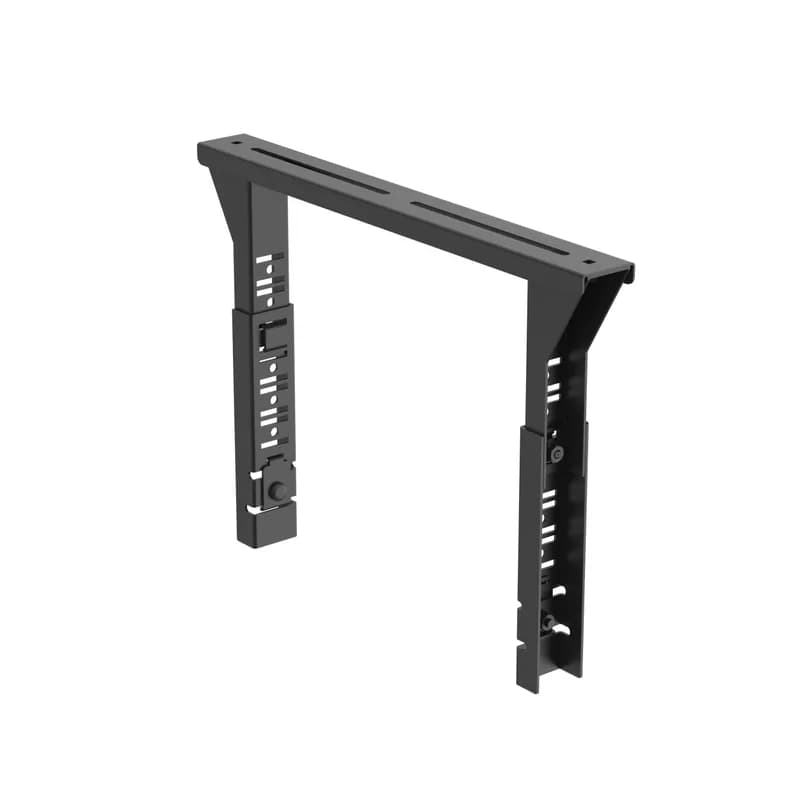

Panduit PWB12FRTBBL The Stacking Trapeze Bracket attaches to 12 inch (300mm) wide Wire Basket Pathway to…
UPC: 613056899551
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Supports second tier of 4x4, 6x4, and 12x4 FiberRunner channel or Wire Basket pathway
- Adjustable vertical clearance from 6.5" (165mm) to 9.5" (241mm)
- Compatible with 12" (300mm) wide Wire Basket Pathway systems
- Includes all necessary mounting hardware (Carriage Bolts, Keps Nuts, C-Clips)
- Black powder-coat finish for corrosion resistance and professional appearance
Specifications
Color | Black |
Color* | Black |
Length | 16.5 in |
Length | 419.1 mm |
Mounting Type | Stacking Bracket |
Series | Stacking Trapeze Bracket |
Size | 12 inch (300mm) |
Standard | RoHS Compliant |
Package Dimensions (L x W x H) | 24 IN x 6 IN x 2.5 IN |
Package Dimensions (L x W x H) | 60.96 cm x 15.24 cm x 6.35 cm |
Package Weight (Imperial) | 3.2000 L |
Package Weight (Metric) | 1.4515 kg |

FIDT2X2LBL
The FiberRunner 1-Port Spillout is used with a 2x2 fitting. The spillout is used to route cable into three separate 1.5 inch (3.8mm) diameter split corrugated tubing.
PWB24FRTBBL
The Stacking Trapeze Bracket attaches to 24 inch (600mm) wide Wire Basket Pathway to support a second tier of 4x4, 6x4, and 12x4 FiberRunner channel or Wire Basket pathway up to 12". It adjusts 6.5 inches (165mm) to 9.5 inches (241mm) over the top surface of the bottom Wire Basket Pathway. It is offered in black powder-coat.
PWB18FRTBBL
The Stacking Trapeze Bracket attaches to 18 inch (450mm) wide Wire Basket Pathway to support a second tier of 4x4, 6x4, and 12x4 FiberRunner channel or Wire Basket pathway up to 12". It adjusts 6.5 inches (165mm) to 9.5 inches (241mm) over the top surface of the bottom Wire Basket Pathway. It is offered in black powder-coat.
PWB30FRTBBL
The Stacking Trapeze Bracket attaches to 30 inch (750mm) wide Wire Basket Pathway to support a second tier of 4x4, 6x4, and 12x4 FiberRunner channel or Wire Basket pathway up to 12". It adjusts 6.5 inches (165mm) to 9.5 inches (241mm) over the top surface of the bottom Wire Basket Pathway. It is offered in black powder-coat.
PWBFESBL-30
Wire Basket Flat Expansion Splice Bar can be used to create horizontal sweeping bends, end-to-end basket width reductions, and accommodate small gaps between joined pathway sections. It can be used for all Wire Basket sizes ranging from 4" through 36". This kit comes packaged in quantities of 30 pieces, in electro-zinc finish.Frequently Asked Questions
What is the vertical adjustment range of the PWB12FRTBBL?
The PWB12FRTBBL offers a vertical clearance range of 6.5 inches (165mm) to 9.5 inches (241mm) above the top surface of the lower Wire Basket Pathway.
What is the finish of the PWB12FRTBBL?
The PWB12FRTBBL features a black powder-coat finish for corrosion resistance and a professional appearance.
What is the maximum width of Wire Basket Pathway supported by the PWB12FRTBBL?
The PWB12FRTBBL is designed for use with 12-inch (300mm) wide Wire Basket Pathway systems.
What pathways are compatible with the PWB12FRTBBL?
The PWB12FRTBBL supports 4x4, 6x4, and 12x4 FiberRunner channel or Wire Basket pathway systems when installed above a 12-inch (300mm) wide Wire Basket Pathway.
Can the PWB12FRTBBL be used with FiberRunner channels?
Yes, the PWB12FRTBBL supports FiberRunner channel systems in 4x4, 6x4, and 12x4 configurations.
What hardware is included with the PWB12FRTBBL?
The bracket includes two Direct Attach Brackets, two Adjustable Brackets, two FiberRunner Mount Clips, one Trapeze Bracket, two Bracket Clips, six Carriage Bolts, ten Keps Nuts, and four C-Clips.
What are the mounting options for the PWB12FRTBBL?
The PWB12FRTBBL mounts to Wire Basket side walls using provided Carriage Bolts, Bracket Clips, and Keps Nuts.
Is the PWB12FRTBBL suitable for outdoor use?
The black powder-coat finish provides corrosion resistance, making it suitable for harsh industrial environments, but specific environmental ratings should be verified for outdoor applications.
How to Install PWB**FRTBBL Stacking Trapeze Brackets
This guide provides instructions for installing Panduit PWB**FRTBBL Stacking Trapeze Brackets to a wire basket side wall and then attaching a FiberRunner or another wire basket as a top tier.
Estimated time: 30m
Tools needed:
Wrench, Pliers
Supplies needed:
Direct Attach Bracket (qty. 2), Adjustable Bracket (qty. 2), FiberRunner Mount Clip (qty. 2), Trapeze Bracket (qty. 1), Bracket Clip (qty. 2), Carriage Bolt (qty. 6), Keps Nut (qty. 10), C-Clip (qty. 4)
- Install Direct Attach and Adjustable Brackets
Secure two Direct Attach Brackets to the Wire Basket Side Wall using two Carriage Bolts, two Bracket Clips, and two Keps Nuts per bracket. Then, secure two Adjustable Brackets to the Direct Attach Brackets using two C-Clips and two Keps Nuts per bracket.
- Secure Trapeze Bracket
Attach the Trapeze Bracket to the two Adjustable Brackets using two Carriage Bolts and two Keps Nuts. Ensure it is firmly secured.
- Install FiberRunner Mount Clips (Optional)
If installing a FiberRunner, secure two FiberRunner Mount Clips to the Trapeze Bracket, each using one Carriage Bolt and one Keps Nut.
- Attach FiberRunner Top Tier
For FiberRunner installation, first insert the FiberRunner into the FiberRunner Clips. Then, secure the FiberRunner to the Trapeze Bracket using the FiberRunner Mount Clips, Carriage Bolts, and Keps Nuts. Use one set of hardware (1 Carriage Bolt, 1 FiberRunner Mount Clip, 1 Keps Nut) for smaller width FiberRunner, or two sets of hardware (2 Carriage Bolts, 2 FiberRunner Mount Clips, 2 Keps Nuts) for same size or 24-inch FiberRunner.
- Attach Wire Basket Top Tier
If installing another Wire Basket as the top tier, secure it to the Trapeze Bracket using two C-Clips and two Keps Nuts.
