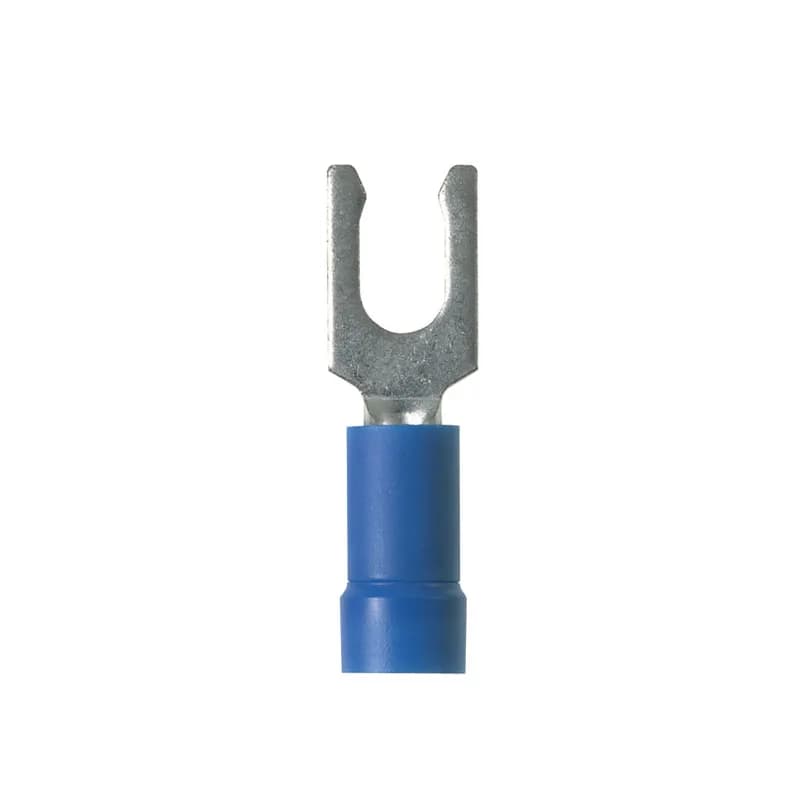

Panduit PV14-10LFN-C - Locking Fork Terminal, vinyl insulated, funnel entry, 18- 14 AWG, #10 stud size, narrow tongue, standard package.
Panduit

PV14-10LFN-C

UPC: 074983808700

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit PV14-10LFN-C is a vinyl-insulated locking fork terminal designed for reliable electrical connections in industrial applications. Engineered by Panduit, a trusted name in electrical infrastructure, this terminal (SKU: PV14-10LFN-C) offers a secure and efficient solution for wire termination. It features a vinyl insulation material, providing electrical isolation and protection. The funnel entry design facilitates easier wire insertion, minimizing the risk of wire strand fraying and ensuring a complete crimp. This terminal is rated for wire gauges ranging from 18 to 14 AWG, making it versatile for various wiring needs. The #10 stud size ensures compatibility with standard mounting hardware. Its narrow tongue design allows for efficient use of space in terminal blocks and connection points. The locking feature provides an added layer of security, preventing accidental disconnection under vibration or stress. Manufactured in the USA, this terminal adheres to high-quality standards. The PV series designation indicates its placement within Panduit's comprehensive line of electrical connectors. This product is supplied in a standard package, suitable for both small-scale projects and larger industrial installations. Key specifications include: Wire Range: 18-14 AWG, Stud Size: #10, Insulation Material: Vinyl, Connection Type: Locking Fork Terminal, Mounting Type: Stud Mount, Series: PV, Country of Origin: US. The PV14-10LFN-C is an essential component for creating durable and safe electrical connections in control panels, machinery, and other industrial equipment where secure wire termination is paramount. Its robust construction and user-friendly design contribute to efficient installation and long-term performance.
  • Vinyl insulated locking fork terminal for secure connections
  • Accommodates wire gauges from 18 to 14 AWG
  • Designed for #10 stud size mounting
  • Funnel entry simplifies wire insertion
  • Narrow tongue for space-efficient applications

Specifications

Color
Blue
Connection
Funnel Entry
Enclosure
Fork shape
Finish
Tinned
Insulation
Vinyl
Material
Copper
Mounting
5/16 In.
Size
#10
Standard
CSA Certified LR31212;UL Listed 587H E52164
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
600 V
Wire Size
14 AWG
Package Dimensions (L x W x H)
9.9 IN x 2.3 IN x 4.35 IN
Package Weight (Imperial)
1.45 lbs
