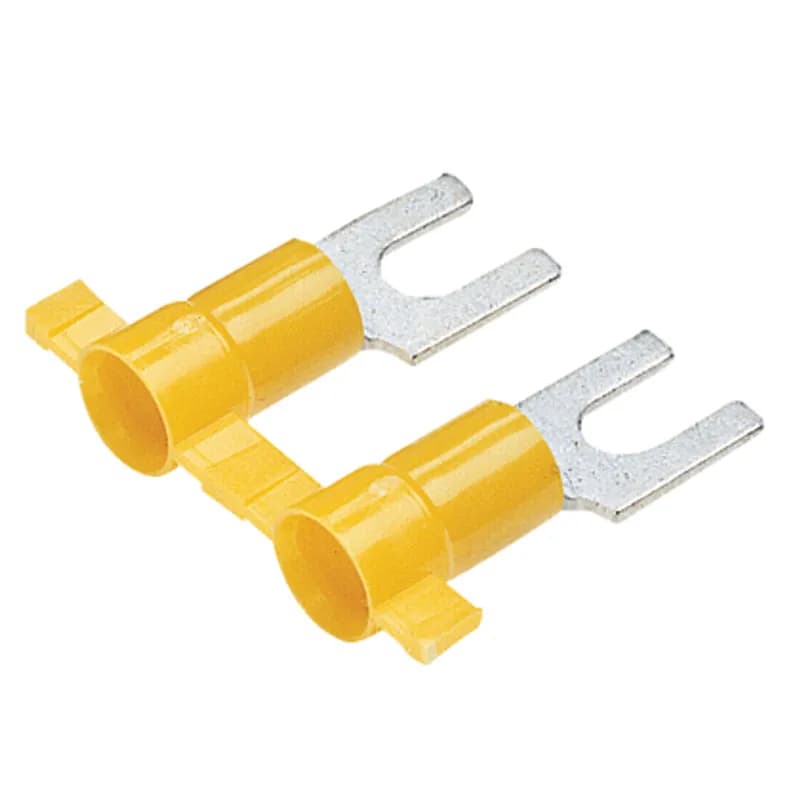

Panduit PV10-6FB-2K - Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #6 stud size.
Panduit

PV10-6FB-2K

UPC: 074983804481

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 2000

Multiplier: 2000

*Contact for lower quantities*

Overview

The Panduit PV10-6FB-2K is a vinyl-insulated fork terminal engineered for secure, high-reliability electrical connections in industrial and commercial applications. Designed for wire sizes ranging from 12 to 10 AWG, this terminal ensures compatibility with common conductor gauges while accommodating a #6 stud size for standard termination points. The funnel entry design simplifies wire insertion, reducing installation time and minimizing the risk of wire strand fraying during crimping. A plastic insulation crimp secures the wire while providing insulation support, preventing damage in bending applications. With a maximum insulation temperature of 221°F (105°C) and UL Flammability rating of UL 94V-0, the PV10-6FB-2K meets rigorous performance standards for high-voltage applications up to 600V per UL 486A/B. Its locking fork design eliminates the need to remove fasteners during installation, streamlining assembly and maintenance. Ideal for use in control panels, motor starters, and electrical enclosures where reliable, long-lasting terminations are critical. Compatible with Panduit’s CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, and UP14ZLW crimping tools for consistent, professional results.
  • Wire range: 12 to 10 AWG for compatibility with common conductor sizes
  • Stud size: #6 for standard termination onto studs or screw terminals
  • Funnel entry design for easier wire insertion and reduced strand fraying
  • Plastic insulation crimp provides secure, insulated connections with strain relief
  • Internal barrel serrations ensure maximum tensile strength and reliable wire contact
  • UL Flammability rated UL 94V-0, maximum insulation temperature 221°F (105°C)
  • UL and CSA rated up to 600V per UL 486A/B for high-voltage applications
  • Locking fork design eliminates need to remove fasteners during installation
  • Compatible with Panduit CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, and UP14ZLW crimping tools

Specifications

Color
Vinyl
Color
Yellow
Connection
Funnel Entry
Connection Type
Plastic insulation crimp
Enclosure
Fork shape
Finish
Tinned
Insulation
Vinyl
Material
Copper
Material
Plastic
Mounting
11/32 In.
Series
PV
Size
#6
Size
#6 stud size
Standard
CSA Certified LR31212;UL Listed 587H E52164
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Fork Terminal
Voltage Rating
600 V
Wire Size
10 Awg
Package Dimensions (L x W x H)
26.1 IN x 25.4 IN x 2.4 IN
Package Weight (Imperial)
11.4 lbs

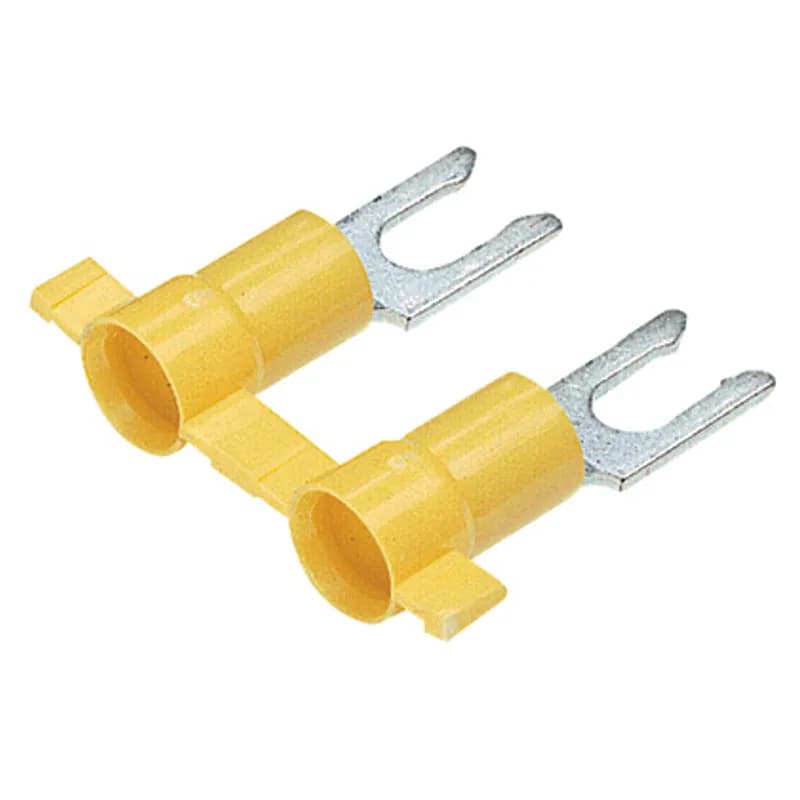

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, 1/4 stud size.

PV10-14LFB-2K

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, 1/4 stud size.
Bi-Metal Pin Connectors with Insulating Cover, 600V, Aluminum Cable Size 3/0 AWG to Copper Pigtail Wire Size 1/0 AWG, Tin Plated, Die Code 60, Die Color Code Ruby

61940

Bi-Metal Pin Connectors with Insulating Cover, 600V, Aluminum Cable Size 3/0 AWG to Copper Pigtail Wire Size 1/0 AWG, Tin Plated, Die Code 60, Die Color Code Ruby
18--10 Red Wire Connector

MWNR1810V

18--10 Red Wire Connector
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16 - 14 AWG wire range, 1/4 stud size.

PV14-14FB-3K

Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16 - 14 AWG wire range, 1/4 stud size.
Fork Terminal, non-insulated, 18- 14 AWG, #6 stud size, bulk package.

P14-6F-M

Fork Terminal, non-insulated, 18- 14 AWG, #6 stud size, bulk package.
High Temperature Ring Terminal, 22 18 AWG #8 stud size, non-insulated, bulk package.

P18-8RHT6-M

High Temperature Ring Terminal, 22 18 AWG #8 stud size, non-insulated, bulk package.
The P18-10RHT6-M Pan-Term Terminal is a non-insulated, nickel-plated, ring terminal for high temperature applications. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint from high vibration. Internal barrel serrations assure good wire contact and maximum tensile strength.

P18-10RHT6-M

The P18-10RHT6-M Pan-Term Terminal is a non-insulated, nickel-plated, ring terminal for high temperature applications. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint from high vibration. Internal barrel serrations assure good wire contact and maximum tensile strength.
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #10 stud size.

PV10-10FB-2K

Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #10 stud size.
