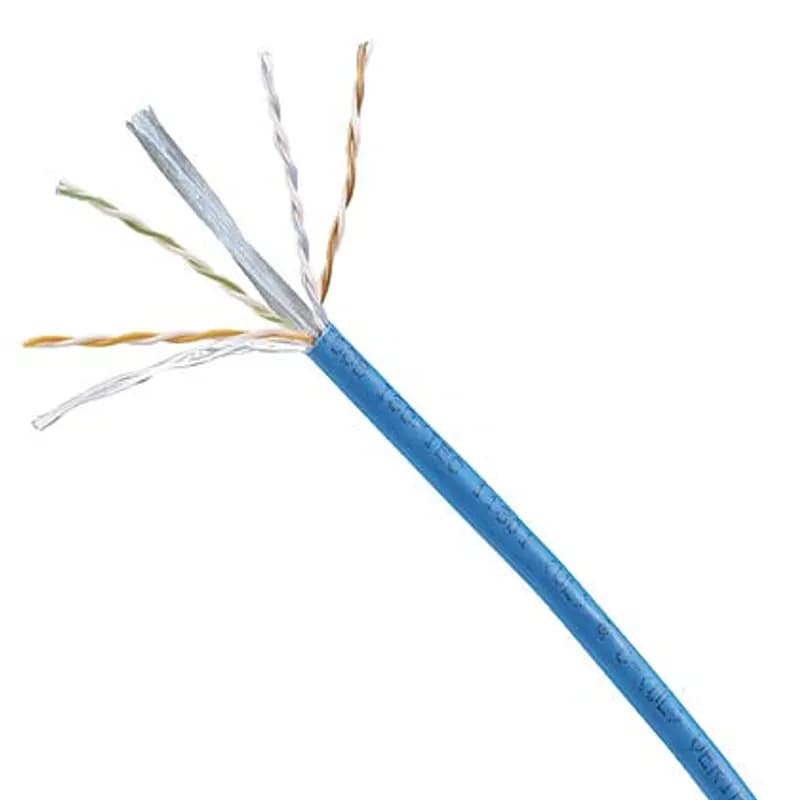

Panduit PUR6C04OR-M - Category 6 UTP cable shall meet ANSI/TIA-568.2-E and IEC 61156-5Category 6 component standards. The conductors shall be 24 AWGcopper insulated with HDPE polymer. The copper conductors shall betwisted in pairs, separated by a cross divider and covered by a lowsmoke zero halogen or flame retardant PVC (CMR) jacket.
Panduit

PUR6C04OR-M

UPC: 613056909229

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Overview

The Panduit PUR6C04OR-M is a Category 6 Unshielded Twisted Pair (UTP) cable engineered to meet stringent industry standards, including ANSI/TIA-568.2-E and IEC 61156-5 Category 6 component specifications. This cable is constructed with 24 AWG solid copper conductors, each insulated with High-Density Polyethylene (HDPE) polymer to ensure signal integrity and minimize crosstalk. The four twisted pairs are meticulously separated by a central cross divider, a design element crucial for maintaining performance characteristics and preventing electromagnetic interference (EMI) in high-density installations. The jacket material is a Flame Retardant PVC (CMR) rated for use in riser applications, offering a Low Smoke Zero Halogen (LSZH) alternative for environments where fire safety is paramount. This construction ensures compliance with building codes and enhances safety in plenum spaces. The 24 AWG gauge provides a balance of flexibility and conductivity suitable for various networking applications, including data transmission, voice, and video over IP networks. The PUR6C04OR-M is designed for reliable connectivity in structured cabling systems, supporting data rates up to 1 Gigabit Ethernet (1000BASE-T) and beyond, making it suitable for enterprise networks, data centers, and commercial installations requiring dependable network infrastructure. Key Specifications: * **Manufacturer:** Panduit * **SKU:** PUR6C04OR-M * **Series:** Category 6 UTP * **Conductor Gauge:** 24 AWG * **Conductor Material:** Copper * **Insulation Material:** HDPE Polymer * **Jacket Material:** Flame Retardant PVC (CMR) / Low Smoke Zero Halogen (LSZH) * **Standards Compliance:** ANSI/TIA-568.2-E, IEC 61156-5 Category 6 component standards. This cable is ideal for new installations or upgrades where reliable, high-speed data transmission is essential. Its robust construction and adherence to industry standards ensure consistent performance and longevity within your network infrastructure.
  • Category 6 UTP cable meeting ANSI/TIA-568.2-E and IEC 61156-5 standards.
  • 24 AWG solid copper conductors with HDPE insulation for signal integrity.
  • Twisted pairs separated by a cross divider to minimize crosstalk.
  • Flame Retardant PVC (CMR) jacket with Low Smoke Zero Halogen (LSZH) properties.
  • Suitable for riser applications and environments requiring enhanced fire safety.

Specifications

Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Jacket Material
Polyvinyl Chloride (PVC)
Number of Conductors
4
Outside Diameter
0.233 in
Outside Diameter
5.9182 mm
Resistance
Flame-Retardant
Temperature Rating
167 °F
Type
Bulk Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
16.9 IN x 9.2 IN x 16.9 IN
Package Dimensions (L x W x H)
42.926 cm x 23.368 cm x 42.926 cm
Package Weight (Imperial)
28.8000 L
Package Weight (Metric)
13.0637 kg
