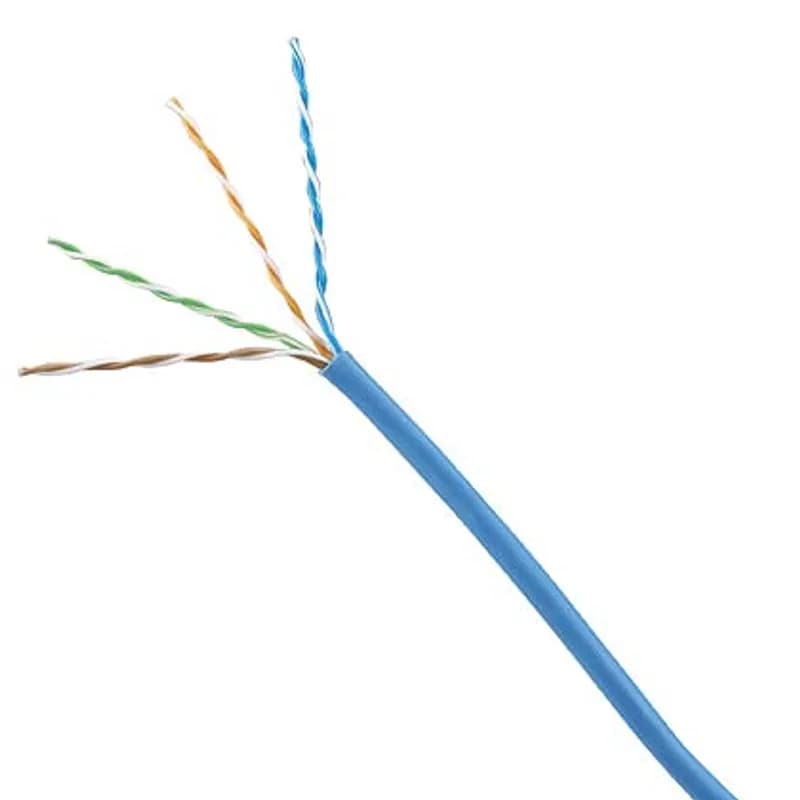

Panduit PUR6C04BL-WZ - Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.

Panduit PUR6C04BL-WZ Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The…

UPC: 613056899674


Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 12000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

Panduit TX6™ Category 6 U/UTP Copper Cable (SKU: PUR6C04BL-WZ) delivers certified performance for high-speed Ethernet networks. This 24 AWG solid copper cable features HDPE insulation and a low smoke, flame-retardant PVC (CMR-rated) jacket, meeting ANSI/TIA-568.2-E Category 6 component standards for reliable data transmission. Each pair is twisted to minimize crosstalk and electromagnetic interference, ensuring signal integrity across applications up to 100 meters. Designed for riser applications, the CMR jacket complies with NEC and building codes, reducing flame and smoke spread in vertical installations. The cable supports Gigabit Ethernet (1000BASE-T), 10GBASE-T (up to 55 meters), and legacy systems including 10BASE-T and 100BASE-TX. It also handles ATM and Token Ring protocols at specified data rates. Key specifications include: - Conductor: 24 AWG solid copper - Insulation: HDPE - Jacket: Low smoke, flame-retardant PVC (CMR-rated) - Pair construction: U/UTP (unshielded twisted pair) - Length: 1000 ft. per reel - Color: Black jacket with blue conductors - Temperature range: 0°C to 50°C during installation; -20°C to 90°C during operation - Installation tension: 25 lbf (110N) maximum Ideal for enterprise networks, data centers, and commercial buildings, this cable ensures backward compatibility with Category 5e systems while delivering enhanced performance for modern networking demands. Its certified channel performance in a 4-connector configuration supports applications up to 250MHz.
  • 24 AWG solid copper conductors with HDPE insulation
  • Low smoke, flame-retardant PVC (CMR-rated) jacket for riser applications
  • Supports Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T (up to 55m)
  • Twisted pair construction minimizes crosstalk and EMI
  • Certified to ANSI/TIA-568.2-E Category 6 standards

Specifications

Color
Blue
Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Jacket Material
Polyvinyl Chloride (PVC)
Material
PVC, HDPE, Copper
Number of Conductors
4
Outside Diameter
0.22 in
Outside Diameter
5.588 mm
Series
PUR6C04BL
Shielded
Unshielded
Size
24 AWG
Temperature Rating
NA °F
Type
Bulk Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
44.7 IN x 40.8 IN x 43.5 IN
Package Dimensions (L x W x H)
113.538 cm x 103.632 cm x 110.49 cm
Package Weight (Imperial)
1044.0000 L
Package Weight (Metric)
473.5584 kg
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMDA7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.

PUR6C04YL-WZ

Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.
The NetKey® Cat 6 shielded F/UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield and CM jacket. The white CM cable is supplied 305 meters (1,000 feet) to a reel.

NFC6C04WH-FEG

The NetKey® Cat 6 shielded F/UTP copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by an overall metallic foil shield and CM jacket. The white CM cable is supplied 305 meters (1,000 feet) to a reel.
The NK5e™ Cat 5e U/UTP CM copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CM), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.

NUC5C04BU-CE

The NK5e™ Cat 5e U/UTP CM copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant PVC (CM), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.
Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.

NUC5C04BU-ME

Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.
Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.

NUC5C04IG-ME

Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.
The NK6™ Cat 6 copper cable is constructed of 24 AWG copper conductors with high-density polyethylene (HDPE) insulation. The copper conductors shall be twisted in pairs and separated by a cross divider and covered by a flame retardant PVC (CM) Intl. Blue jacket.

NUC6C04BU-FE

The NK6™ Cat 6 copper cable is constructed of 24 AWG copper conductors with high-density polyethylene (HDPE) insulation. The copper conductors shall be twisted in pairs and separated by a cross divider and covered by a flame retardant PVC (CM) Intl. Blue jacket.
Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.

NUC5C04WH-ME

Category 5e cable shall meet ANSI/TIA-568.2-E Category 5e and ISO 11801 Class D channel standards. The conductors shall be 24 AWG copper insulated with HDPE. The copper conductors shall be twisted in pairs and all four pairs shall be covered by flame retardant PVC (CM) jacket.

Frequently Asked Questions

What standard does this cable meet?

The cable meets the ANSI/TIA-568.2-E Category 6 component standard.

What is the conductor gauge and insulation type?

The conductors are 24 AWG solid copper with HDPE insulation.

What type of jacket does the cable have?

The cable has a low smoke, flame-retardant PVC (CMR) jacket.

What is the insulation diameter?

The insulation diameter is between 0.035 in. and 0.039 in.

What is the cable's flame rating?

The cable has a UL1666 flame rating.

Is this cable compliant with PoE standards?

Yes, it meets IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt for PoE applications.

What is the maximum installation tension?

The maximum installation tension for the cable is 25 lbf (110 N).

What are the cable's temperature ratings?

The installation temperature range is 32°F to 122°F, and the operating temperature range is -4°F to 167°F.

What is the nominal cable diameter?

The nominal cable diameter is 0.220 in. (5.6mm).

What applications does this cable support?

It supports Ethernet (10BASE-T to 10GBASE-T), ATM (155 Mb/s to 1.2 Gb/s), and Token Ring 4/16.
