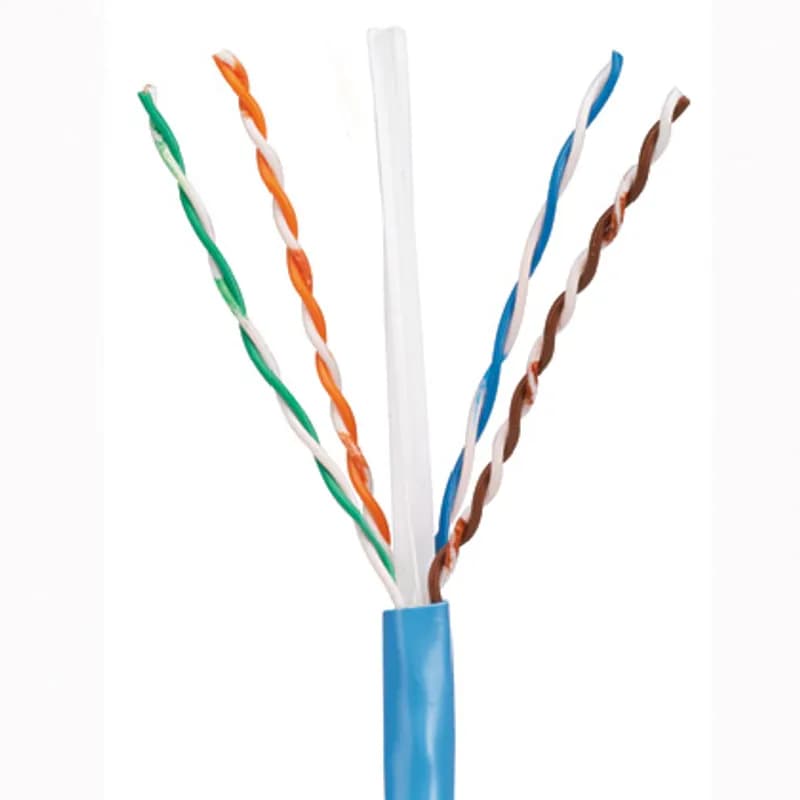

Panduit PUR6004GR-ME - Category 6 cable shall exceed IEC 61156-5 and ANSI/TIA-568.2-ECategory 6 component standards. The conductors shall be 23 AWGconstruction with HDPE insulation. The copper conductors shall betwisted in pairs, with all four pairs separated by a cross-divider andcovered by a flame-retardant PVC (CMR) jacket.
Panduit

PUR6004GR-ME

UPC: 613056909120

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Overview

The Panduit PUR6004GR-ME is a Category 6 cable engineered to exceed IEC 61156-5 and ANSI/TIA-568.2-D component standards. This cable features 23 AWG solid copper conductors, ensuring reliable signal transmission for data networking applications. Each conductor pair is insulated with High-Density Polyethylene (HDPE) for enhanced electrical performance and signal integrity. To minimize crosstalk and maintain signal quality, all four conductor pairs are meticulously twisted and separated by an integrated cross-divider. This construction is crucial for achieving the performance levels required by Category 6 standards, supporting data rates up to 1 Gbps and bandwidth up to 250 MHz. The cable is finished with a flame-retardant PVC (CMR) jacket, designed for use in vertical cable runs within building risers. This jacket provides essential fire safety characteristics, meeting the requirements for in-wall installations. The PUR6004GR-ME is suitable for structured cabling systems in commercial and enterprise environments, supporting applications such as Gigabit Ethernet, Voice over IP (VoIP), and video streaming. Key Specifications: - Manufacturer: Panduit - SKU: PUR6004GR-ME - Conductor Gauge: 23 AWG - Insulation: HDPE - Jacket Type: Flame-retardant PVC (CMR) - Standards Compliance: Exceeds IEC 61156-5 and ANSI/TIA-568.2-D Category 6 component standards.
  • Exceeds IEC 61156-5 and ANSI/TIA-568.2-D Category 6 component standards.
  • 23 AWG solid copper conductors for reliable data transmission.
  • HDPE insulation on conductors for optimal electrical performance.
  • Integrated cross-divider separates twisted pairs to minimize crosstalk.
  • Flame-retardant PVC (CMR) jacket suitable for vertical riser installations.

Specifications

Color
Gray
Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Jacket Material
Polyvinyl Chloride (PVC)
Material
PVC, HDPE, Copper
Number of Conductors
4
Outside Diameter
0.236 in
Outside Diameter
5.9944 mm
Resistance
Flame-Retardant
Series
PUR6004
Size
23 AWG
Temperature Rating
167 °F
Type
Bulk Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
15.9 IN x 10.8 IN x 14.76 IN
Package Dimensions (L x W x H)
40.386 cm x 27.432 cm x 37.4904 cm
Package Weight (Imperial)
27.9000 L
Package Weight (Metric)
12.6554 kg
