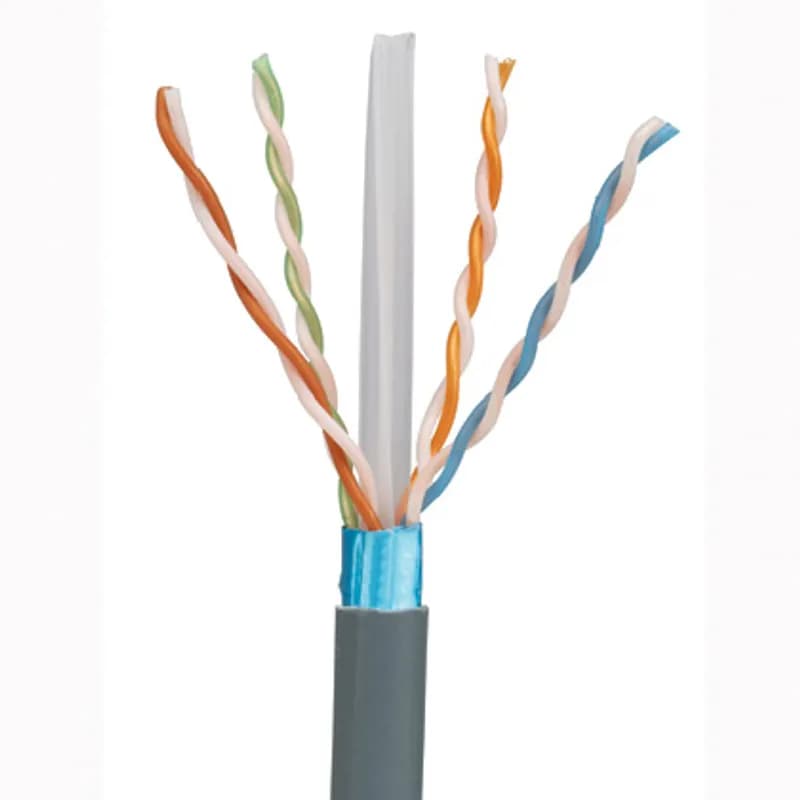

Panduit PUP6C04OR-W The TX6 Cat 6 U/UTP copper cable is constructed of 24 AWG copper conductors with…
UPC: 613056775268
Documents & Media
Contact for Pricing
Minimum Qty: 36000
Multiplier: 36000
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 24 AWG solid copper conductors for optimal signal transmission
- FEP/HDPE insulation minimizes crosstalk and interference
- CMP-rated flame-retardant PVC jacket meets plenum space requirements
- Supplied in 1,000-foot easy-pay-out carton for efficient installation
- Supports 1 Gbps data rates with 250 MHz bandwidth
Specifications
AWG size | 24 |
Color | Orange |
Material | Copper |
Material | PVC, FEP, HDPE, Copper |
Material | PVC, FEP/HDPE, Copper |
Material | FEP/HDPE/PVC |
Number of Pins | 4 |
Series | TX6 |
Series | TX6 Cat 6 U/UTP |
Size | 24 AWG |
Package Dimensions (L x W x H) | 44 IN x 48 IN x 51 IN |
Package Weight (Imperial) | 1010.98 lbs |
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color Gray
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
AL-R2-R2
Power Distribution Block (2) 500 MCM-4 AWG Primary (2) 500 MCM-4 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
CPP24FMWBLY
The Mini-Com Flush Mount Modular Patch Panel accepts up to 24 Mini-Com Modules for unshielded applications in 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel mounts flush with the rack and can be identified with adhesive labels and is black.
VP24382TV25Y
The Voice Patch Panel (RJ45 To RJ21), 1 Pair, Flat, 24 Port is a specialty patch panel with RJ21 connector interface.
Frequently Asked Questions
What electrical performance standards does this cable meet?
The cable meets ANSI/TIA-568.2-D Category 6 Standard for both channel and component performance at swept frequencies up to 250 MHz.
What type of conductors and insulation does the cable use?
The cable uses 24 AWG solid copper conductors covered by FEP/polyolefin insulation.
What is the flame rating of the TX6 Category 6 cable?
The cable has a Plenum flame rating, meeting NFPA 262 and CSA FT-6 standards.
Is the cable compliant with Power over Ethernet (PoE) standards?
Yes, the cable meets IEEE 802.3af, IEEE 802.3at, and IEEE 802.2bt for PoE applications.
What is the maximum installation tension for this cable?
The maximum installation tension for the cable is 25 lbf (110 N).
What are the temperature ratings for installation and operation?
The cable has an installation temperature rating of 32°F to 122°F (0°C to 50°C) and an operating temperature rating of -4°F to 167°F (-20°C to 75°C).
What material is used for the cable jacket?
The cable jacket is made of low smoke, flame-retardant PVC.
What is the nominal cable diameter?
The nominal cable diameter is 0.197 in (5.0 mm).
What is the cable's weight per 1000 feet?
The cable weighs 27 lbs. per 1000 feet (12.2 kg per 305 m).
How is the cable packaged and what length is provided?
The cable is packaged in 1000 ft (305 m) lengths within an easy payout carton, tested to ISTA Procedure 1A.
