Contact for Pricing

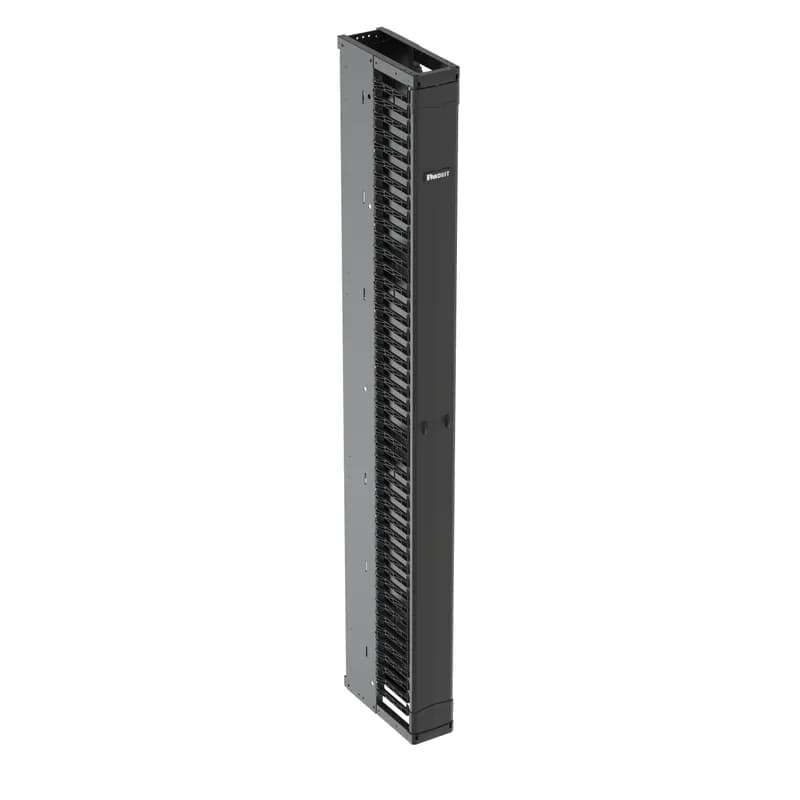

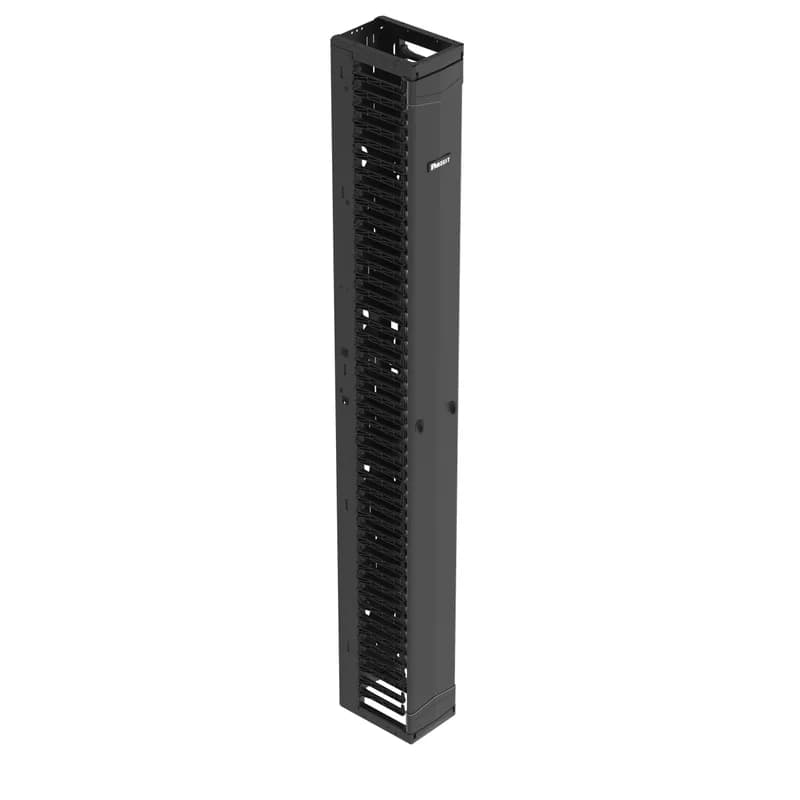

Overview
- Ultra-high-density capability frees up valuable floor space.
- Fully pre-assembled for lower overall costs and faster installation.
- Single-sided access with a metal backbone and molded plastic fingers.
- Includes one full-length metal, dual-hinging, push-to-close door.
- 45 RU capacity, 6 inches wide, black finish.
Specifications
Color | Black |
Depth | 12 in |
Depth | 304.8 mm |
Material | Metal, Plastic |
Material | Metal and Plastic |
Series | PatchRunner 2 |
Size | 45 RU, 6 inches wide |
Size | 45 RU, 6 in width |
Standard | RoHS Compliant, UL 2416, CSA C22.2 |
Type | Single-Sided Manager |
Width | 6 in |
Width | 152.4 mm |
Package Dimensions (L x W x H) | 86.75 IN x 14.5 IN x 8.5 IN |
Package Weight (Imperial) | 36.86 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the Panduit PR2VGK accessory?
The PR2VGK is a kit containing five pass-through bend radius grommets.
How many grommets are included in the PR2VGK kit?
The PR2VGK kit includes five pass-through bend radius grommets.
What are the main benefits of using these cable managers?
They manage high-density networking equipment in less space, free up rack space, and reduce the number of racks needed, resulting in significant cost savings.
What are the key features of the vertical cable manager?
It has a metal backbone with plastic fingers for bend radius control, pass-through holes, and accepts a hinged, push-to-close door. It can manage all rack cables without horizontal managers.
Does the cable manager require horizontal managers?
No, the vertical panel can manage all cables on the rack without the aid of horizontal cable managers.
How do the doors function on the cable manager?
The manager accepts a metal, hinged, push-to-close door that can open to the right or left. Door support brackets are integrated, requiring no assembly.
How do the curved fingers improve cable management?
Curved fingers support cables transitioning to the vertical pathway, eliminating the need for horizontal managers and maintaining bend radius for network performance.
What rack types are compatible with these managers?
They are compatible with 2-post aluminum racks and 4-post steel racks, both with #12-24 threaded rails or cage nut rails.
How do the integrated door brackets benefit installation?
Integrated door brackets mean no brackets to install, leading to faster installation and reduced labor costs.
Are there replacement parts for the cable manager fingers?
Yes, 15 RU and 6 RU finger section replacement kits are available for the cable managers.
How to Install the PATCHRUNNER 2 Vertical Cable Manager
This guide provides step-by-step instructions for installing the PATCHRUNNER 2 Vertical Cable Manager onto a rack, ensuring proper mounting and configuration.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Dead blow hammer
Supplies needed:
M10 Serrated Flange Bolts, M10 Serrated Flange Nuts, M6 x 16mm Serrated Hex Head Bolts, M6 Serrated Hex Head Nuts
- Mount the Vertical Cable Manager
Secure the Vertical Cable Manager to the rack using (4) M10 Serrated Flange Bolts and (4) M10 Serrated Flange Nuts. Ensure that the manager is level and firmly attached.
- Install the Door
Align the door hinge pins with the slots on the door supports and push the door closed until it is securely locked in place.
- Install the Bottom and Top Panels
Attach the bottom panel using the integrated hook and fasten it with (2) M10 x 16mm serrated hex head bolts and (2) M10 serrated hex head nuts. Repeat the process for the top panel using (2) M6 x 16mm serrated hex head bolts and (2) M6 serrated hex head nuts.
- Install the Waterfall
Adjust the width of the waterfall to fit your rack by loosening the (4) Phillips head screws. Align the waterfall slots around the backbone part of the manager and fasten it using (4) M6 x 8mm screws.
