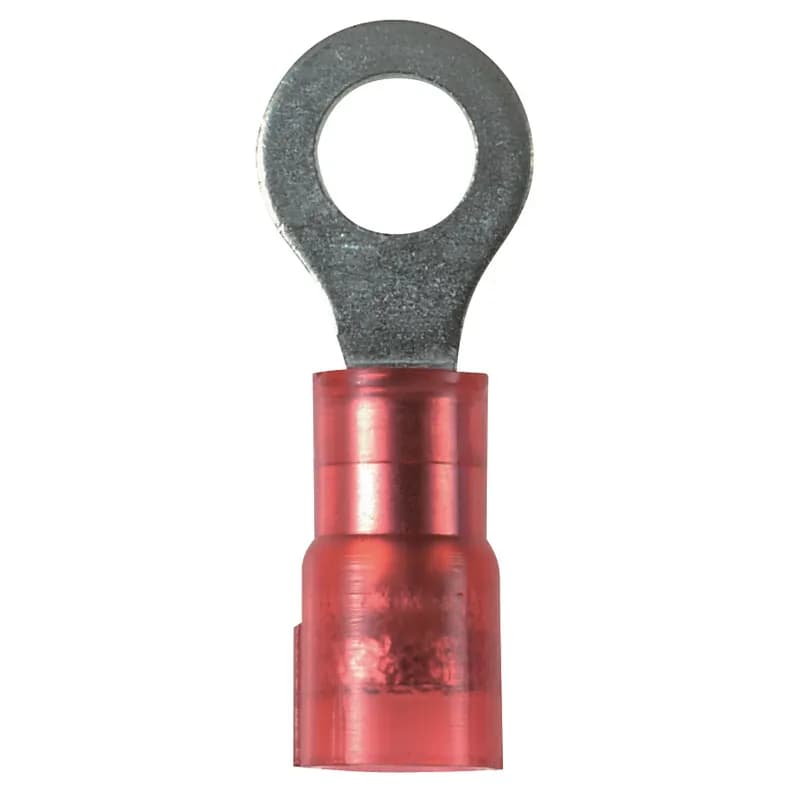

Panduit PMNF6-5R-L - Ring Terminal, 4.0 6.0mm wire range, M5 stud size, nylon barrel insulated, funnel entry, bulk package.
Panduit

PMNF6-5R-L

UPC: 074983843145

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 250

Multiplier: 50

*Contact for lower quantities*

Overview

The Panduit PMNF6-5R-L is a high-reliability nylon insulated ring terminal designed for secure electrical connections in demanding industrial applications. This terminal supports a wire range of 4.0 to 6.0mm² (12-10 AWG), making it ideal for heavy-duty wiring systems where robust terminations are critical. The M5 stud size ensures compatibility with standard industrial fasteners, providing a stable and vibration-resistant connection. The nylon barrel insulation offers superior protection against abrasion and environmental factors, while the funnel entry design simplifies wire insertion and reduces installation time. Internal barrel serrations guarantee maximum wire contact and tensile strength, ensuring long-term reliability even in high-vibration environments. Rated for up to 600V per UL 486A/B and UL 94 HB flammability, this terminal meets stringent safety and performance standards. The continuously molded design ensures consistent crimping results when used with Panduit’s CT-100, CT-1550, or CT-2500/L crimping tools, delivering uniform terminations every time. With a maximum insulation temperature of 221°F (105°C), the PMNF6-5R-L is suitable for use in a wide range of industrial, commercial, and utility applications, including machinery, control panels, and electrical distribution systems. Bulk packaging provides cost-effective solutions for high-volume installations.
  • Nylon insulated barrel for abrasion and environmental protection
  • Funnel entry design for easy wire insertion and reduced installation time
  • Internal barrel serrations ensure maximum wire contact and tensile strength
  • UL 486A/B and CSA rated for up to 600V applications
  • Compatible with Panduit CT-100, CT-1550, CT-2500/L crimping tools for consistent terminations
  • Maximum insulation temperature: 221°F (105°C)
  • Bulk packaging for high-volume installations

Specifications

Color
Yellow
Connection
Funnel Entry
Enclosure
Ring shape
Finish
Tinned
Insulation
Nylon
Material
Copper
Mounting
9/32 In.
Size
m5
Standard
UL Listed 587H E52164, CSA Certified LR31212
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
600 V
Wire Size
10 Awg
Package Dimensions (L x W x H)
10.1 IN x 2.2 IN x 4.35 IN
Package Weight (Imperial)
1.55 lbs
