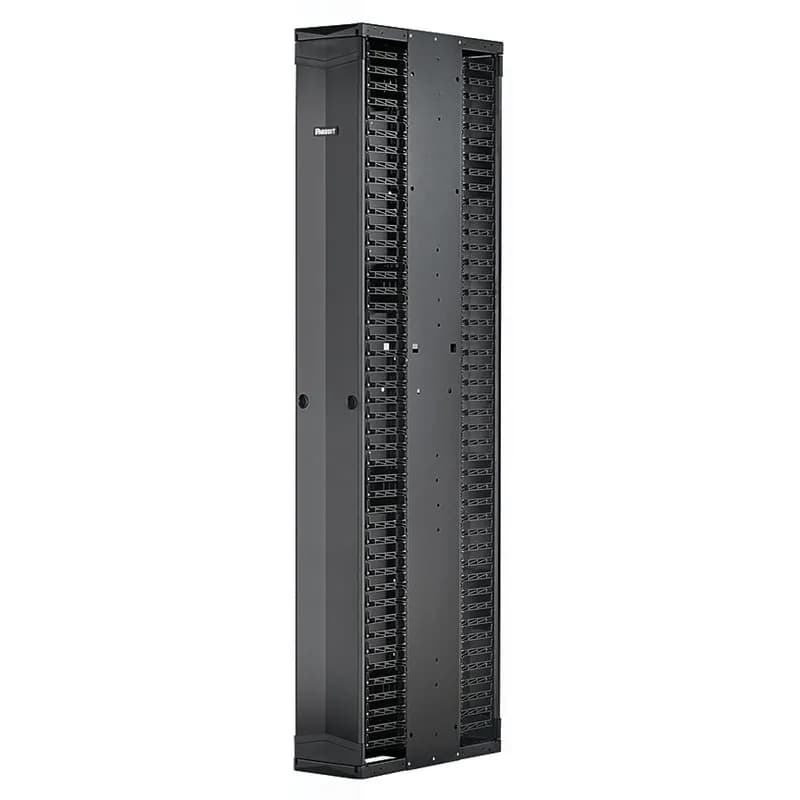

Panduit PE2VSD06 - The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 6 inches wide, 6 bonus vertical RU, and is black.
Panduit

PE2VSD06

UPC: 613056685734

Documents & Media
BrochureTechnical BulletinTechnical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

The Panduit PE2VSD06 Enhanced Vertical Cable Manager offers ultra-high-density cable management with its innovative zero RU patching feature, maximizing space utilization in data centers and network closets. This 45 RU manager measures 6 inches wide and provides an additional 6 bonus vertical RU for enhanced flexibility. Its dual-sided design incorporates a robust metal backbone complemented by molded plastic fingers, ensuring secure cable routing and retention. A full-length metal door, featuring dual hinges and a convenient push-to-close mechanism, offers easy access and protection for managed cables. The PE2VSD06 arrives partially pre-assembled, significantly reducing deployment time and installation complexity. Finished in black, this manager is built for durability in demanding network environments. Ideal for high-density applications requiring organized cable pathways and a minimal physical footprint, the PE2VSD06 streamlines network infrastructure deployment. SKU: PE2VSD06. Country of Origin: US.
  • 45 RU capacity with 6 bonus vertical RU
  • Zero RU patching capability for space efficiency
  • Dual-sided design with metal backbone and plastic fingers
  • Full-length metal, dual-hinging, push-to-close door
  • Partially pre-assembled for rapid installation

Specifications

Color
Black
Depth
26.8 In.
Environmental Conditions
Indoor
Material
Metal and Plastic
Series
PatchRunner 2
Series
PatchRunner 2 Enhanced
Size
45 RU, 6 inches wide, 6 bonus vertical RU
Size
45 RU, 6 inches wide
Standard
RoHS Compliant, UL 2416, CSA C22.2
Type
Dual-Sided Manager
Width
6 In.
Package Dimensions (L x W x H)
83.7 IN x 12 IN x 20.7 IN
Package Weight (Imperial)
67.64 lbs
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VSD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, 9 bonus vertical RU, and is black.

PE2VSD08

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 8 inches wide, 9 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, 9 bonus vertical RU, and is black.

PE2VSD0896

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 8 inches wide, 9 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VFD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, and is black.

PR2VFD0696

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 42 RU, 6 inches wide, and is black.

PR2VFD0679

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 42 RU, 6 inches wide, and is black.
The fiber splice tray kit is for up to 12 ribbon fiber fusion splices (144 fibers). It fits in Panduit FRMHSS-4RU and FRMHSST-4RU 4RU Splice Enclosures and FWMHSS*S-3456 and FWMHSS*S-6912 Wall Mount Fiber Splice Enclosures.

FST144R

The fiber splice tray kit is for up to 12 ribbon fiber fusion splices (144 fibers). It fits in Panduit FRMHSS-4RU and FRMHSST-4RU 4RU Splice Enclosures and FWMHSS*S-3456 and FWMHSS*S-6912 Wall Mount Fiber Splice Enclosures.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 10 inches wide, 12 bonus vertical RU, and is black.

PE2VSD1096

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 10 inches wide, 12 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 10 inches wide, 12 bonus vertical RU, and is black.

PE2VD10

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 45 RU, 10 inches wide, 12 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 10 inches wide, 12 bonus vertical RU, and is black.

PE2VD1096

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 10 inches wide, 12 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, 12 bonus vertical RU, and is black.

PE2VSD10

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, 12 bonus vertical RU, and is black.

How to Install the PE2VSD06 Vertical Manager

This guide provides step-by-step instructions for installing and configuring the PE2VSD06 Vertical Manager on a rack.

Estimated time: 1h

Tools needed:

3mm Allen Wrench, 5mm Allen Wrench, 15mm Wrench, Flat Head Screwdriver

Supplies needed:

M5 flat head screws, M10 Serrated Flange Bolts, M10 Serrated Flange Nuts, Cage nuts

  1. Install Door Supports

    Slide the Door Support assembly vertically into the cable manager, ensuring the 40/60 open areas match. Secure in place using M5 flat head screws with a 3mm hex allen wrench at the top and bottom.

  2. Mount the Vertical Manager to the Rack

    Align the vertical cable manager with the rack and secure it using three M10 Serrated Flange Bolts and three M10 Serrated Flange Nuts. Use the forward holes on the top and bottom and the rear hole in the center.

  3. Install Fingers

    Using a flat head screwdriver, gently pry up the plastic latches in four places while applying forward pressure to the finger section. Push the finger section into the manager until it clicks into place.

  4. Install the Door

    Align the door hinge pins with the slots on the door supports and push the door closed until it is secured.

  5. Mount EIA 19” Equipment

    Attach cage nuts to the square cutouts in the cable manager horizontal panels and secure the equipment using appropriate screws.
