Overview
- Designed for 300-pair cable applications in 110-style systems
- Vertical orientation maximizes space utilization and reduces clutter
- Compatible with Panduit Pan-Punch 110-style bases and connectors
- Constructed in the USA for durability and reliability
- Integrates seamlessly with existing structured cabling infrastructure
Specifications
Application | (1) Used to Connect, Manage, Identify and Cross-Connect Communications Equipment Wiring in Telecommunications Closets and Main Distribution Frames, (2) Used in Voice Networks and Data Local Area Networks |
Color | Black |
Connection Type | 110-style |
Depth | 7.18 In. |
Fits EMT* | NA IN |
Height | 23.93 IN |
Material | Polymer |
Material | Steel |
Material | Poly |
Mounting Type | Vertical |
Series | Pan-Punch 110-style |
Series | Pan-Punch Series |
Size | 300-pair |
Standard | RoHS Compliant |
Type | 110 System Cable Manager |
Width | 7.75 In. |
Package Dimensions (L x W x H) | 24.5 IN x 10.7 IN x 9.3 IN |
Package Weight (Imperial) | 8 lbs |
SN25F

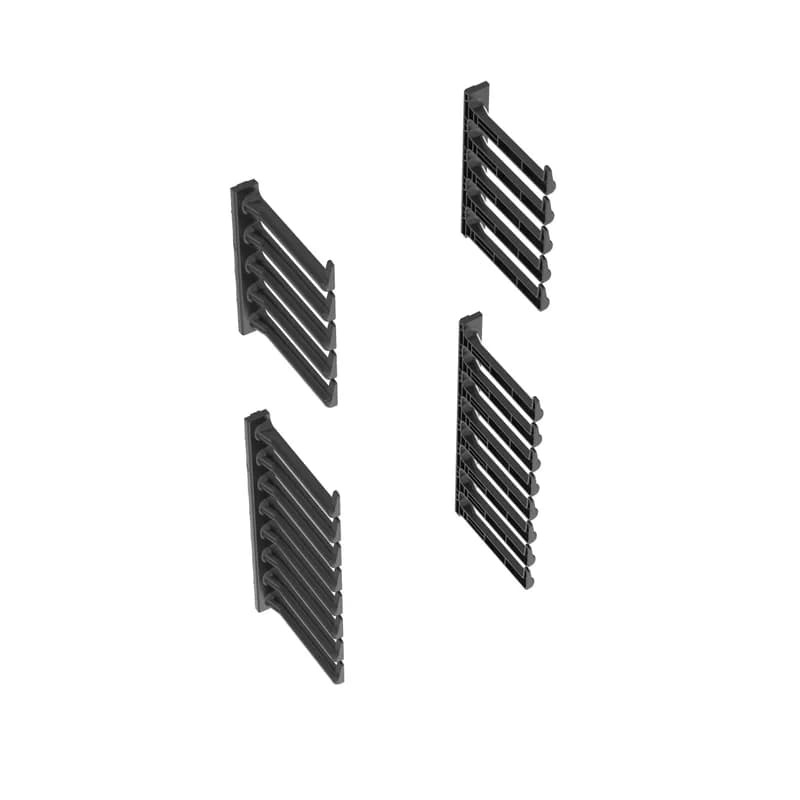

The cable management finger kit is designed to be used in any 42 RU or 45 RU, S-Type or N-Type cabinet. It is 14.1" H by 6.8" W by 6.8" D and is black.
FHMPW-6-BCG
The HD Flex Fiber Adapter Panel features 6 MPO ports with type B adapters. It features key-up to key-up adapters and is charcoal gray with lime green dust plugs.
FHMPW-6-ABL
The HD Flex Fiber Adapter Panel features 6 MPO ports with type A adapters. It features key-up to key-down adapters and is black with lime green dust plugs.
OFCD9519BF

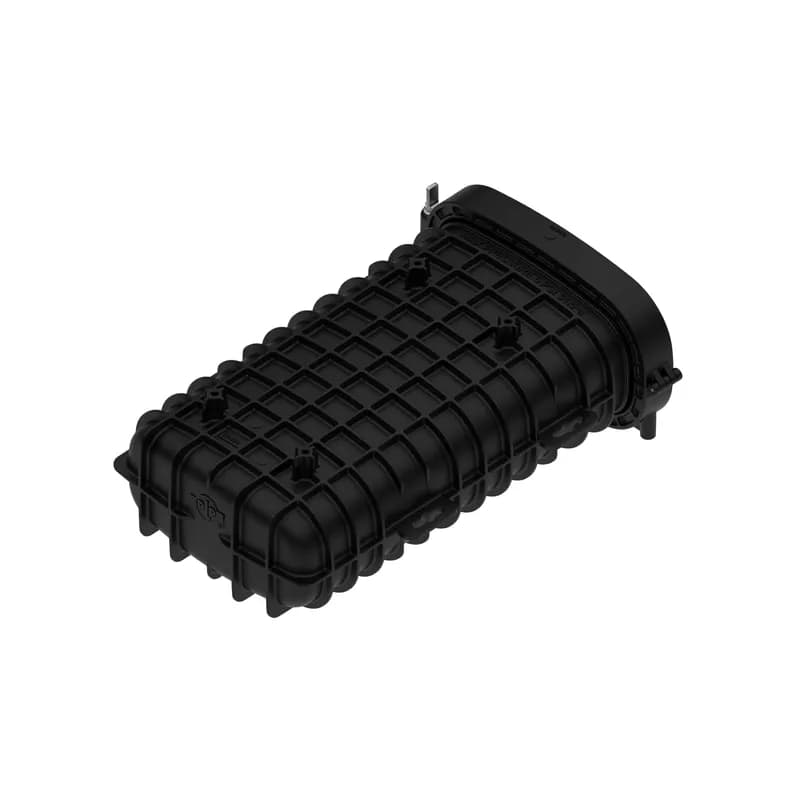

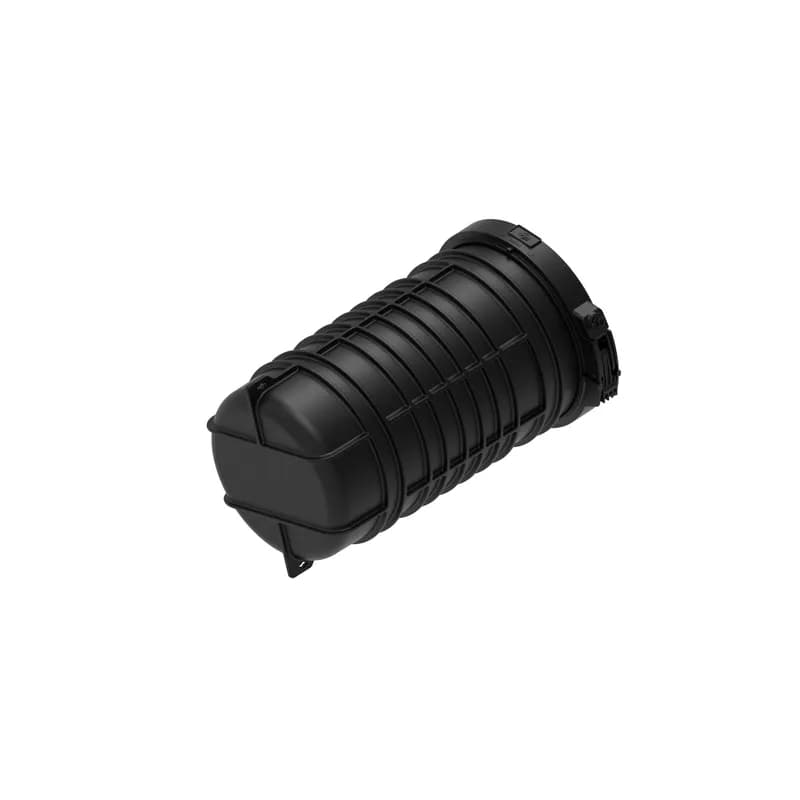

The Dome Fiber Splice Closure houses, organizes, managse and protects fiber optic cables and splices. The closure provides a hermetic seal and provide IP68 rated protection when properly used with the provided grommet to seal cable entry and exits. The closure can accommodate buffer tube or ribbon fiber splices, when the appropriate splice tray is installed. To be included are the enclosure dome, appropriate tray organizer, and grommet kit.
OFCD1610BR
The Dome Fiber Splice Closure houses, organizes, managse and protects fiber optic cables and splices. The closure provides a hermetic seal and provide IP68 rated protection when properly used with the provided grommet to seal cable entry and exits. The closure can accommodate buffer tube or ribbon fiber splices, when the appropriate splice tray is installed. To be included are the enclosure dome, appropriate tray organizer, and grommet kit.
OFCD6517RF
The Dome Fiber Splice Closure houses, organizes, managse and protects fiber optic cables and splices. The closure provides a hermetic seal and provide IP68 rated protection when properly used with the provided grommet to seal cable entry and exits. The closure can accommodate buffer tube or ribbon fiber splices, when the appropriate splice tray is installed. To be included are the enclosure dome, appropriate tray organizer, and grommet kit.
OFC144RST

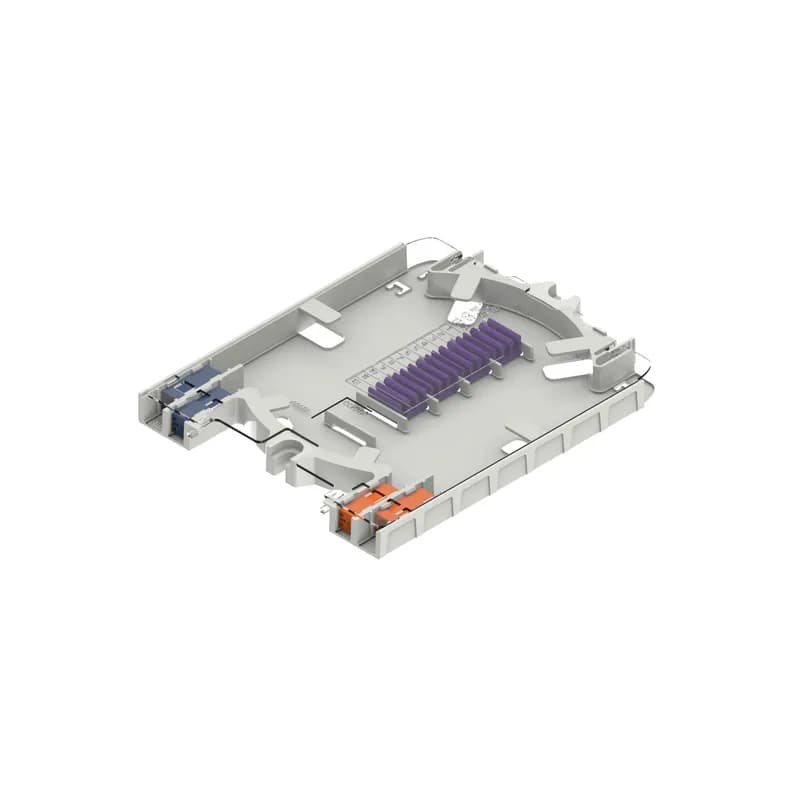

Ribbon fiber splice tray to be used with the outdoor closures: OFCI1810BR, OFCD1610BR, OFCD6517BF, OFCD6517RF, OFCD9519BF
ISTPH6X20MBL
Patch Cord, IndustrialNET, Cat6A, Shielded, 600V, RJ45 plug to RJ45 plug, Black, 20 meter
Frequently Asked Questions
What is the maximum number of pairs for the P110BW300-X?
The P110BW300-X supports up to 300 pairs.
What is the electrical performance standard for this product?
It exceeds all channel and component requirements of ANSI/TIA-568-C.2 Category 5e standard.
What type of cabling does the P110BW300-X support?
It is designed for use with unshielded twisted pair copper wire and cable.
What is the compatibility of the P110BW300-X?
The P110BW300-X is compatible with existing 110 installations.
How many cycles can the connecting block withstand?
The connecting block can withstand repeated terminations up to 200 cycles.
Can the P110BW300-X be used for small projects?
Yes, it can be used on jobs as small as 100-pair.
What installation features does the P110BW300-X have?
It features easy installation with color-coded wire strips for sorting and troubleshooting.
What is the maintenance requirement for the P110BW300-X?
The product includes features that assist in long-term maintenance, such as color-coded wire strips.
What is the temperature resistance of the P110BW300-X?
The product meets IEC 512-9b requirements for temperature life with minimal circuit resistance change.
Are there safety warnings for the P110BW300-X?
The documentation does not specify any safety warnings or precautions.
How to Install the P110B100-X Tower System
This guide provides step-by-step instructions for installing the P110B100-X Tower System, including mounting, wiring, and initial setup.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Cable ties
- Mount the tower
Secure the tower to the wall using #12 wood screws (not provided) or equivalent. Ensure the bottom of the tower is at least 8 inches from the floor to allow space for the horizontal cable manager trough.
- Route the cables
Route the cable bundle into the tower and fan out individual cables into their appropriate positions through the cutouts provided. Leave 12 to 18 inches of slack and use cable ties to secure the bundle to the raised tabs on the back of the tower.
- Secure the base
Position the base over the slots in the tower and secure it with two #12 sheet metal screws (supplied). Place the conductors into the index strip and install the connecting blocks as per the instruction sheet PN51* (provided).
- Install vertical cable managers
Install vertical cable managers (P110VCM300 for 300 pair and P110VCM900 for 900 pair) adjacent to the towers using #12 wood screws (not provided) or equivalent.
- Attach horizontal cable manager trough
Attach the horizontal cable manager trough to the towers and vertical cable managers using #12 sheet metal screws and #12 external tooth lockwashers (provided). Fasten securely to ensure grounding.
- Attach ground lug
Attach the ground lug (P/N: LAM2A2/0-14-6) with a 1/4" x 3/4" machine screw, nut, and 1/4" external tooth lockwasher (provided) to the bottom of the horizontal cable manager trough.
