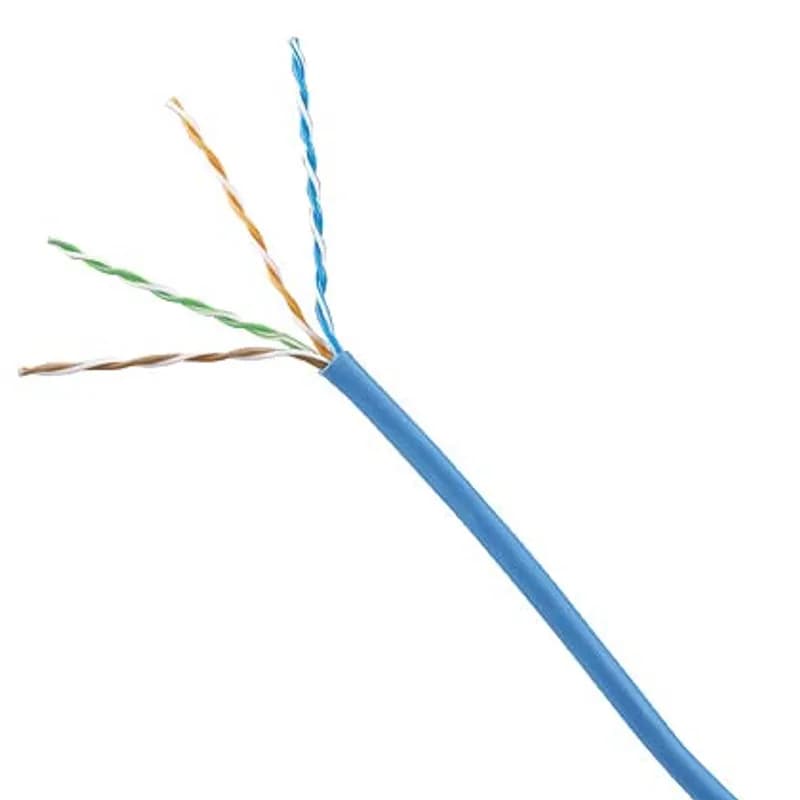

Panduit NUL5C04BU-CE - The NK5e™ Cat 5e U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs. All four pairs shall be covered by a flame retardant HDPE (LSZH), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.

Panduit NUL5C04BU-CE The NK5e™ Cat 5e U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with…

UPC: 074983194674


Documents & Media
Installation Instructions

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

Panduit NK5e™ Cat 5e U/UTP LSZH copper cable (SKU: NUL5C04BU-CE) delivers reliable 100 MHz performance for high-speed Ethernet networks. This 24 AWG solid copper cable features HDPE insulation with twisted pairs to minimize crosstalk and ensure signal integrity. The flame-retardant LSZH (Low Smoke Zero Halogen) blue jacket meets critical safety standards for installations requiring low smoke and zero halogen emissions, such as data centers, office networks, and industrial environments. Designed for ANSI/TIA-568-C.2 Category 5e compliance, this cable supports Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) applications. It is third-party tested for certified channel performance in a 4-connector configuration up to 100 meters, ensuring reliable data transmission. The cable’s 24 AWG solid copper conductors provide optimal conductivity, while the HDPE insulation and LSZH jacket enhance durability and safety. Packaged in a 1000 ft (305m) easy-payout carton, the NK5e™ cable simplifies deployment with descending length markings for efficient installation and reduced cable waste. Its compact 5.2mm nominal diameter and 10 kg/305m weight make it ideal for space-constrained environments. The cable meets IEEE 802.3af and IEEE 802.3at PoE standards, supporting power-over-Ethernet applications.
  • 24 AWG solid copper conductors with HDPE insulation for optimal signal integrity
  • LSZH (Low Smoke Zero Halogen) blue jacket meets critical safety standards
  • Supports Ethernet 10BASE-T, 100BASE-T, and 1000BASE-T (Gigabit Ethernet)
  • Third-party tested for certified channel performance up to 100 meters
  • Packaged in 1000 ft easy-payout carton with descending length markings

Specifications

Application
Indoor
Conductor Material
Copper
Construction
U/UTP
Jacket Material
LSZH Material
Number of Conductors
4
Outside Diameter
NA in
Shielded
Unshielded
Temperature Rating
NA °F
Type
Bulk Copper Cable
Voltage Rating
NA V
Package Dimensions (L x W x H)
9 IN x 14 IN x 14 IN
Package Dimensions (L x W x H)
22.86 cm x 35.56 cm x 35.56 cm
Package Weight (Imperial)
25.0000 L
Package Weight (Metric)
11.3400 kg
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMDA7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, Blue, Euro Pallet, 1000ft/305m

NUV6C04BU-VE

Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, Blue, Euro Pallet, 1000ft/305m
Category 6 U/UTP copper cable shall meet ANSI/TIA-568.2-E Category6 and ISO 11801 Class E channel standards. The conductors shall be24 AWG copper insulated with HDPE. The copper conductors shall betwisted in pairs, separated by a cross divider and covered by a flameretardant PVC (CMR) jacket.

NUR6C04IG-M

Category 6 U/UTP copper cable shall meet ANSI/TIA-568.2-E Category6 and ISO 11801 Class E channel standards. The conductors shall be24 AWG copper insulated with HDPE. The copper conductors shall betwisted in pairs, separated by a cross divider and covered by a flameretardant PVC (CMR) jacket.
The NK6™ Cat 6 U/UTP Riser copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMR), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.

NUR6C04BU-C

The NK6™ Cat 6 U/UTP Riser copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMR), Blue jacket. Packaged 1000 ft./305m in an easy payout carton.
Category 6 U/UTP copper cable shall meet ANSI/TIA-568.2-E Category6 and ISO 11801 Class E channel standards. The conductors shall be24 AWG copper insulated with HDPE. The copper conductors shall betwisted in pairs, separated by a cross divider and covered by a flameretardant PVC (CMR) jacket.

NUR6C04WH-M

Category 6 U/UTP copper cable shall meet ANSI/TIA-568.2-E Category6 and ISO 11801 Class E channel standards. The conductors shall be24 AWG copper insulated with HDPE. The copper conductors shall betwisted in pairs, separated by a cross divider and covered by a flameretardant PVC (CMR) jacket.
The NK6™ Cat 6 U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), Gray jacket. Packaged 1000 ft./305m in an easy payout carton.

NUL6C04IG-FE

The NK6™ Cat 6 U/UTP LSZH copper cable is constructed of 24 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant HDPE (LSZH), Gray jacket. Packaged 1000 ft./305m in an easy payout carton.
Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, Intl. Gray, Euro Pallet, 1000ft/305m

NUV6C04IG-VE

Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, Intl. Gray, Euro Pallet, 1000ft/305m
Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, White, Euro Pallet, 1000ft/305m

NUV6C04WH-VE

Copper Cable, Cat 6, 4-PR, 24 AWG, U/UTP, PVC, White, Euro Pallet, 1000ft/305m

How to Payout Copper Cable from REELEX® System Packaging

This guide provides instructions for correctly handling and dispensing copper cable from REELEX® System Packaging, including how to prevent and resolve tangles during the payout process.

Estimated time: 15m

  1. Orient the Package Correctly

    Orient the REELEX® package so that the payout hole faces the direction the copper cable is being pulled from. It is crucial to keep the coil upright at all times to prevent tangling.

  2. Prevent Tangling During Payout

    Never dispense the copper cable with the coil in a horizontal position, as this significantly increases the risk of tangling and can damage the cable.

  3. Retrieve a Lost Cable End

    If the cable end retracts into the payout hole, open the access panel or the package itself to reach the inside diameter of the coil. Carefully thread the inside end back through the payout tube.

  4. Resolve Cable Tangles

    Should a tangle or snag occur, open the access panel or the package to access the inside of the coil. Ensure that the inner layers are not obstructing the cable payout. Resolve any knots within the package, or for REELEX® II, you may attempt to pull the knot through.
