Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*

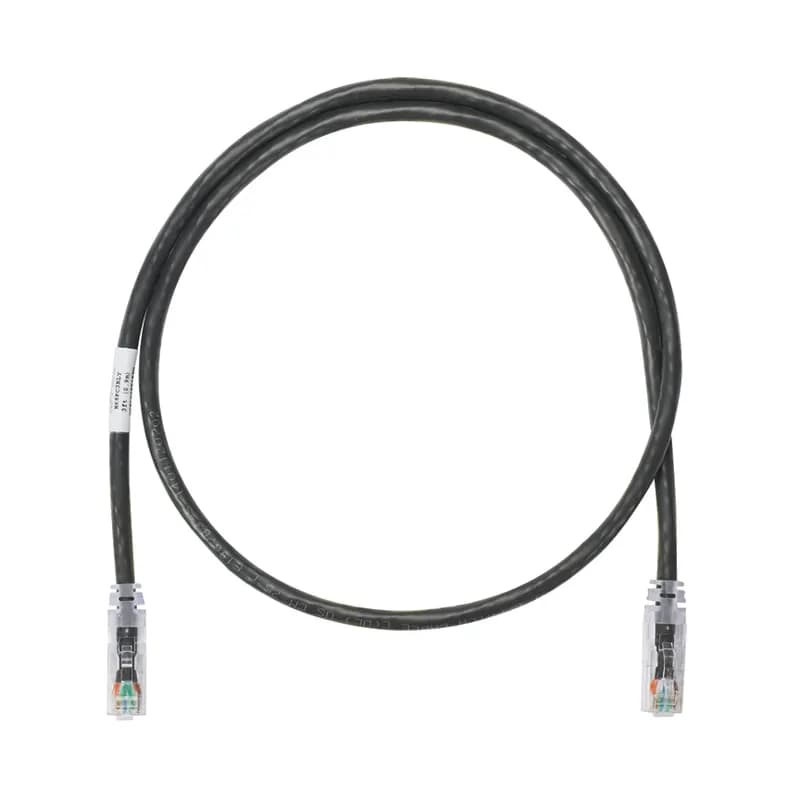

Overview
- 26 AWG stranded, unshielded twisted pair (UTP) CM/LSZH cable
- Patented tangle-free latch prevents snags and ensures easy release
- Slender strain relief boot for high-density applications
- 10-meter length, black color
- Meets or exceeds TIA/EIA-568-C.2 standards for 100MHz bandwidth
Specifications
Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
Boot Type | Modular Plug |
Cable Type* | F/UTP |
Color | Black |
Connection Type | UTP |
Connection Type | Modular Plug |
Frequency | 100 MHz |
Jacket Material | LSZH Material |
Length | 32.81 In. |
Material | CM/LSZH |
Material* | Copper |
Outside Diameter | 0.25 in |
Outside Diameter | 6.35 mm |
Performance Level* | Category 6A |
Plug Type | Modular Plug |
Series | NetKey |
Size | 10 m |
Size | 10m |
Size | 10 meters |
Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz;IEC 60603-7;Meets ANSI/TIA-1096-A (formerly FCC Part 68);UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8 |
Temperature Rating, Maximum | 140 F |
Temperature Rating, Maximum | 60 C |
Temperature Rating, Minimum | 140 F |
Temperature Rating, Minimum | 60 C |
Type | Patch Cord |
Wire Size | 26 AWG |
Package Dimensions (L x W x H) | 14 IN x 10 IN x 1.5 IN |
Package Weight (Imperial) | 1 lbs |
NK6XPPG24Y
The NetKey Cat 6A UTP Flat Punchdown Patch Panel terminates 4-pair, 22 26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The punchdown patch panel is 1 RU, made of steel, and is black.
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
MPNY-1000A-9-C
Cable Tie Mounting Base, Natural Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 28.58mm (1.125 Inches), Width of 28.58mm (1.125 Inches), Height of 5.08mm (0.20 Inches), Acrylic Adhesive Method, 100 Pack
Frequently Asked Questions
How many mating cycles are the connectors rated for?
The connectors are rated for 2500 mating cycles, ensuring long-lasting performance.
What is the maximum operating temperature for the connectors?
The connectors are rated for a maximum operating temperature of 75º C.
What is the warranty period for the Mini-Com Solution?
The Mini-Com Solution comes with a 25-year system warranty when used end-to-end.
What is the smallest diameter for Category 6A patch cords?
The smallest diameter for Category 6A patch cords is 0.185 inches (4.7mm).
What is the rated bandwidth for Category 6 cable?
Category 6 cable has a rated bandwidth of 550 MHz.
What types of applications does the copper cabling support?
The copper cabling supports applications such as Power over Ethernet, wireless connectivity, intelligent lighting, security cameras, and audio/visual systems.
What is the installation method for the Mini-Com jacks?
The Mini-Com jacks feature tool-less termination, which maintains conductor twist for reliable performance.
How many times can the Mini-Com jacks be reterminated?
The Mini-Com jacks can be reterminated up to 20 times.
What is the compatibility of the NetKey jack modules?
NetKey jack modules are designed for compatibility with any keystone opening.
What safety features do the connectors have?
The connectors feature integrated arc suppression technology for enhanced safety.
