Overview
- Terminates 4-pair, 22-24 AWG twisted pair cable
- 100% factory tested for continuity
- Contacts plated with 50 microinches of gold for superior performance
- Compatible with keystone interfaces (Faceplates, Patch Panels, Surface Mount Boxes)
- Distinct yellow color for easy identification
Specifications
Application | Unshielded |
Cable Entry | T568A/T568B |
Color | Yellow |
Connection Type | RJ45 |
Connection Type | RJ45 Keystone Jack |
Depth | 1.37 In. |
Frequency | 100 MHz |
Material | Leadframe |
Material | Plastic |
Material | Plastic (with gold-plated contacts) |
Material | Gold-plated contacts |
Material | ABS/Polycarbonate |
Model | Keystone |
Mounting Type | Keystone |
Mounting Type | Keystone Interface (compatible with NetKey Faceplates, Modular Patch Panels, Surface Mount Boxes) |
Mounting Type | Keystone Interface (snap-in) |
Poles | 8 |
Poles | 4-pair |
Poles | 4 |
Poles | 4P |
Series | NetKey |
Size | 22-24 AWG |
Size | 4-pair, 22-24 AWG |
Special Features | Mini-Com TX5e Jack Modules are available in standard, keyed, corrosive resistant, shuttered and coupler versions for unshielded installations; standard and keyed versions available for shielded installations; all in multiple termination styles |
Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS C |
Type | Jack Module |
Width | 0.65 In. |
Package Dimensions (L x W x H) | 3.45 IN x 3.4 IN x 1.35 IN |
Package Weight (Imperial) | 0.023 lbs |
CJ588YLY

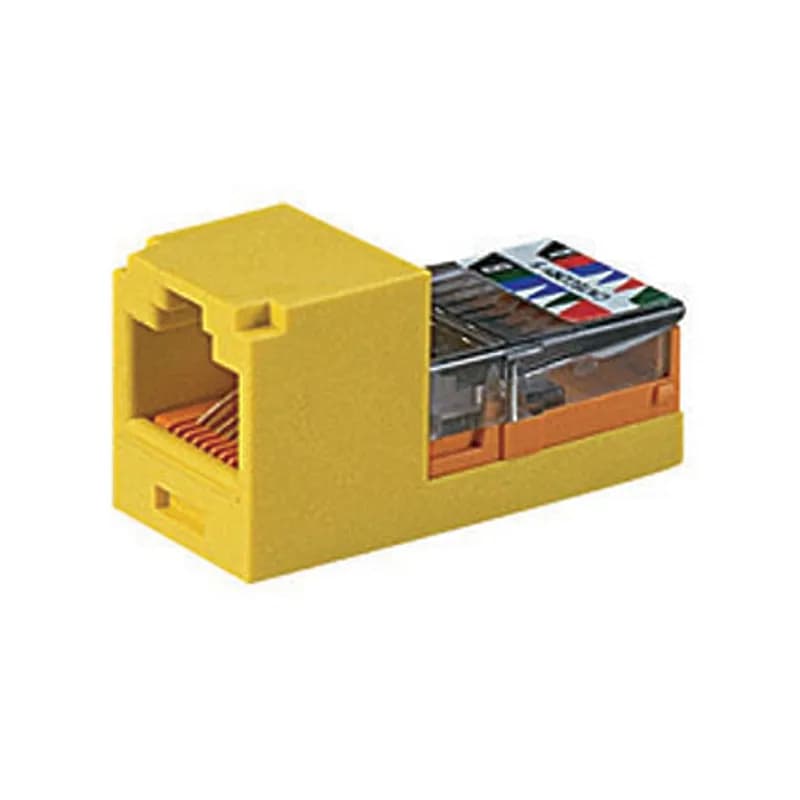

The Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Yellow.Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 140°F (-10°C to 60°C).
Is this module compatible with Power over Ethernet?
Yes, it meets IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 standards.
What cable types are compatible with this module?
It terminates unshielded twisted 4-pair, 22 AWG - 24 AWG, 100 ohm cable.
What standards does this module comply with?
It meets ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D Standards.
What is the maximum power supported by this module?
It supports Power over HDBaseT up to 100 watts.
What is the performance testing status of this module?
Each jack module is 100% performance tested to ensure specified performance.
What is the compliance with safety standards?
It is c(UL)us listed and complies with UL 1863 and CSA Standard C22.2.
Does it require a punchdown tool for installation?
No, it terminates without a punchdown tool; an optional tool ensures full termination.
What types of applications is this module suitable for?
It is suitable for Ethernet, VoIP, and Gigabit Ethernet applications.
What is the color coding for wiring schemes?
The universal label is color-coded for T568A and T568B wiring schemes.
How to Install the NetKey Keystone Style Jack Module (NK5E88MIWY)
This guide provides step-by-step instructions for installing and terminating the NetKey Keystone Style Jack Module for optimal network performance.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Wire snipping tool, Snap Tool or Slip Lock Pliers
Supplies needed:
Category 5E twisted pair cable, Termination caps, Mounting screws
- Prepare the cable
Remove 3 inches (76.2mm) of the cable jacket and untwist the pairs of wires. Ensure the conductors are straightened and arranged in the proper color sequence.
- Insert conductors into the cap
Cut the conductors at an angle and insert them into the termination cap. Ensure that the outer jacket is inside the cap and bend the conductors up at a 90-degree angle.
- Secure the cap
Snap the cap squarely onto the housing until it clicks. Use the Snap Tool or Slip Lock Pliers to apply pressure until the cap is flush with the housing.
- Trim excess conductors
Using the wire snipping tool, trim the conductors flush with the cap to ensure a clean termination.
- Verify installation
Check that the cap is securely attached and that the conductors are properly terminated according to the T568A or T568B wiring standards.
