Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Accommodates up to three keystone modules
- Single-gang NEMA standard mounting
- Durable white finish
- Includes space for adhesive labeling
- Manufactured by Panduit
Specifications
Application | NA |
Color | White |
Depth | 0.45 In. |
Interface | Vertical |
Material | ABS |
Model | Keystone |
Slot Capacity | 3 |
Standard | RoHS Compliant |
Type | Faceplate |
Width | 2.75 In. |
Package Dimensions (L x W x H) | 4.9 IN x 3.4 IN x 0.8 IN |
Package Weight (Imperial) | 0.083 lbs |
NK1FWHY
The NetKey Faceplate accepts one keystone module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is white.
NK2FNBL
The NetKey Faceplate accepts two keystone modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate can be identified with an adhesive label, and is black.
NK1FNIW
The NetKey Faceplate accepts one keystone module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate can be identified with an adhesive label and is off white.

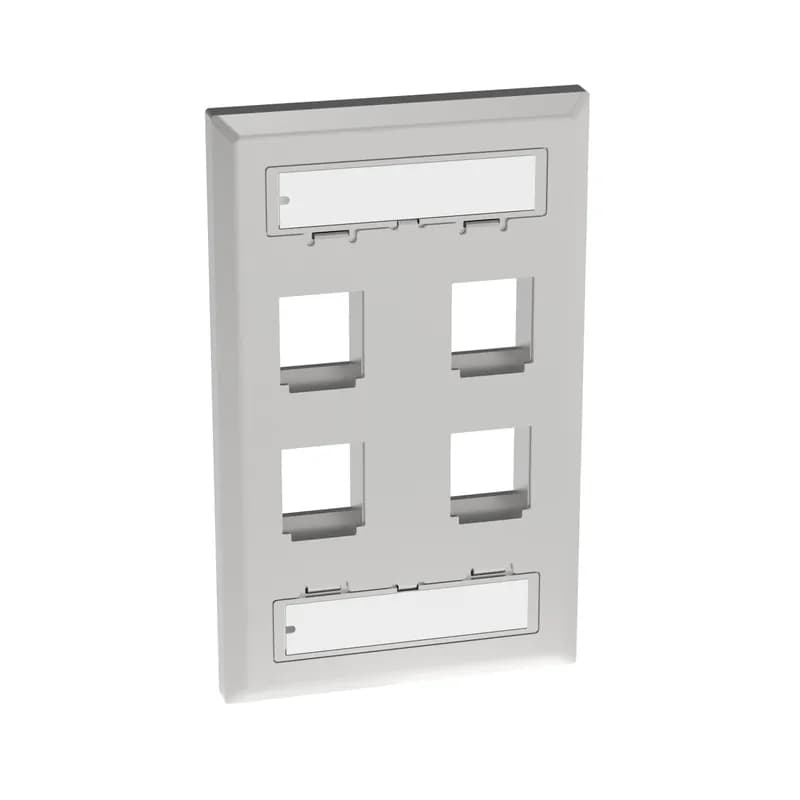

NKF4S
The NetKey Faceplate accepts four keystone modules. The faceplate is single gang, includes label and label cover, and is stainless steel.
CFPS4IG
Mini Com Classic Series single gang kit, includes faceplate frame and two sloped inserts (two port each), accepts four Mini-Com modules. International Gray.Frequently Asked Questions
What are the cable assembly specifications?
The assemblies are Category 6A, 23 AWG, solid, shielded, F/UTP, twisted pair cable, available in various lengths and termination configurations.
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What is the cable diameter?
The nominal cable diameter is 0.29 in (7.4mm).
Is the product compliant with safety standards?
Yes, it meets ANSI/TIA-1096-A, UL 1863, CSA Standard C22.2, and RoHS compliance.
What is the PoE compliance of the product?
The product meets IEEE 802.3af and IEEE 802.3at standards for Power over Ethernet (PoE) applications.
What is the installation temperature range?
The installation temperature range is -40°F to 158°F (-40°C to 70°C).
What flammability ratings are available?
The cable assemblies are available in Plenum, Riser, or Low Smoke Zero Halogen (LSZH) flammability ratings.
How many mating cycles is the plug rated for?
The plug is rated for 2500 mating cycles, ensuring robust performance.
What installation configurations are available?
The cable assemblies are available in plug-to-plug or jack-to-plug termination configurations.
What applications are suitable for this product?
The product is designed for data centers and open office architecture environments, enhancing network flexibility and efficiency.
