Contact for Pricing
Overview

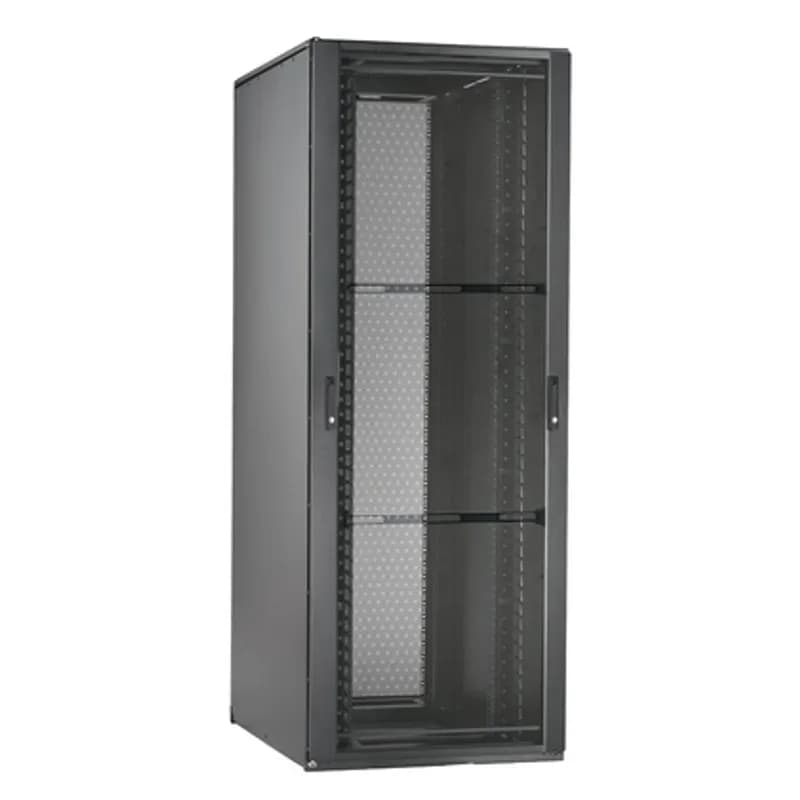

- 42 RU capacity with 78.8" H x 31.5" W x 42" D dimensions
- Dual hinge perforated front door (left/right swing) and split perforated rear door
- Two solid side panels and two sets of #12-24 threaded mounting rails included
- Front and rear cable management on front posts for 42 RU of cabling
- 800mm width x 1200mm depth for standard network/server equipment
Specifications
Application | NA |
Color | Black |
Depth | 48 in |
Depth | 1219.2 mm |
Finish | Powder Coating |
Height | NA In. |
Material | Steel |
Rack Spaces* | 42 |
Standard | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
Type | N-Type Cabinet |
Width | 31.5 in |
Width | 800.1 mm |
Package Dimensions (L x W x H) | 48 IN x 32 IN x 79 IN |
Package Weight (Imperial) | 444 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the static load rating of the cabinet?
The static load rating is 3000 lbs. for the cabinet.
What is the rolling load rating of the cabinet?
The rolling load rating is 2500 lbs. for the cabinet.
What is the installation time reduction with the leveling feet?
The innovative leveling feet design reduces installation time by up to 80%.
What safety features are included in the cabinet?
The entire cabinet is fully electrically bonded, requiring no grounding whips for safety.
What are the cabinet width options available?
Cabinet widths available are 600mm, 700mm, and 800mm.
What heights are available for the cabinets?
Cabinet heights available are 42RU, 45RU, and 48RU.
Are the cabinets compatible with other Panduit products?
Yes, the cabinets are compatible with various Panduit product lines including FiberRunner®.
What are the color options for the cabinets?
The cabinets are available in black and white color options.
What is the benefit of the integral cabinet air seal?
The integral cabinet air seal improves thermal management and reduces cooling energy consumption.
How can I improve cable management in the cabinet?
Use modular snap-in fingers that align with rack spaces for cable management.
How to Install the Net-Access N-Type Network Cabinet
This guide provides step-by-step instructions for safely installing and configuring the Net-Access N-Type Network Cabinet.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Flatblade screwdriver, 15mm socket wrench, 6mm Allen key, Wire cutter
Supplies needed:
Mounting screws, Shipping hold down brackets, Floor anchors
- Remove packaging materials
Remove all stretch wrap and protective cardboard from the outside of the cabinet. Use two persons to carefully lift and remove the cabinet from the pallet.
- Level the cabinet
Ensure that the four leveling legs are fully retracted. Slide the cabinet into its final position and lower the leveling legs until the cabinet weight is fully supported by them. Adjust the legs to ensure the cabinet is level front-to-back and side-to-side.
- Secure the cabinet to the floor
If necessary, secure the shipping hold down brackets at the front and rear of the cabinet. Attach the anchors to the floor using appropriate hardware for your floor type.
- Ground the cabinet
Attach a grounding lug or grounding bar to the Common Bonding Network (CBN) at any of the indicated locations. Remove factory-installed masking tape at the grounding lug location to expose the unpainted surface of the cabinet frame.
- Adjust equipment rails
Loosen the M10 hex head screws at the top and bottom of the rear equipment rail. Adjust the equipment rail to the desired position and tighten the screws to the specified torque.
