Panduit LCMC240-00-6 - Two-hole, metric conductor, long barrel, 240mm 2r, 185mm class 5f/6f, blank tongue.
Panduit

LCMC240-00-6

UPC: 074983640645

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingInstallation Instructions

Contact for Pricing

Overview

The Panduit LCMC240-00-6 is a two-hole metric conductor lug designed for reliable electrical terminations in industrial settings. This lug features a long barrel, providing enhanced surface area for secure crimping and superior electrical conductivity. It is engineered to accommodate 240mm 2r and 185mm class 5f/6f conductors, offering versatility for various cable sizes and types within metric conductor systems. The blank tongue design allows for flexible application, ensuring compatibility with a broad range of connection hardware. Manufactured by Panduit, a trusted name in electrical connectivity, the LCMC240-00-6 is built for durability and consistent performance. Its construction meets stringent industry standards, making it suitable for critical power distribution, industrial machinery, and electrical infrastructure projects where dependable connections are paramount. The long barrel design is particularly beneficial for applications requiring robust strain relief and optimal current transfer, ensuring the integrity of electrical systems in demanding operational environments. This lug is manufactured in the USA.
  • Two-hole metric conductor lug
  • Long barrel for secure termination
  • Compatible with 240mm 2r conductors
  • Compatible with 185mm class 5f/6f conductors
  • Blank tongue for versatile application

Specifications

Amperage Rating
NA A
Angle*
Straight
Barrel Type*
Long
Color
Brown
Connection Type
Long barrel
Material
Tin-plated Copper
Number Of Holes
NA
Poles
2-hole
Series
LCMC
Size
240mm 2r, 185mm class 5f/6f
Special Features
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard
Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant,UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13
Type
Metric Compression Lug
Voltage Rating
NA V
Package Dimensions (L x W x H)
8 IN x 3 IN x 3 IN
Package Weight (Imperial)
3.58 lbs

Similar Products

LCMC240-12-6

Material: Metal

Size: 240mm Barrel, M12 Stud Hole

Connection Type: M12 Stud

LCMD240-00-5

Type: Tin-Plated Copper Compression Connectors - Metric Lugs

Type: Tin-Plated Copper Compression Connectors - Metric Lugs

Voltage Rating: 35 kV

LCMA240-10-X

Barrel Type*: Standard

LCMA240-20-X

Type: Tin-Plated CopperCompression Connectors - Metric Lugs

Type: Tin-Plated CopperCompression Connectors - Metric Lugs

LCMC300-00-6

Color: Green

Size: 300mm 2r, 240mm class 5f/6f

Poles: 2

LCMC400-00-6

Color: Black

You May Also Be Interested In

Two-hole, metric conductor, long barrel, 240mm 2r, 185mm class 5f/6f, M12 stud hole.

LCMC240-12-6

Two-hole, metric conductor, long barrel, 400mm 2r, blank tongue.

LCMC400-00-6

Two-hole, metric conductor, long barrel, 630mm 2r, blank tongue.

LCMC630-00-3

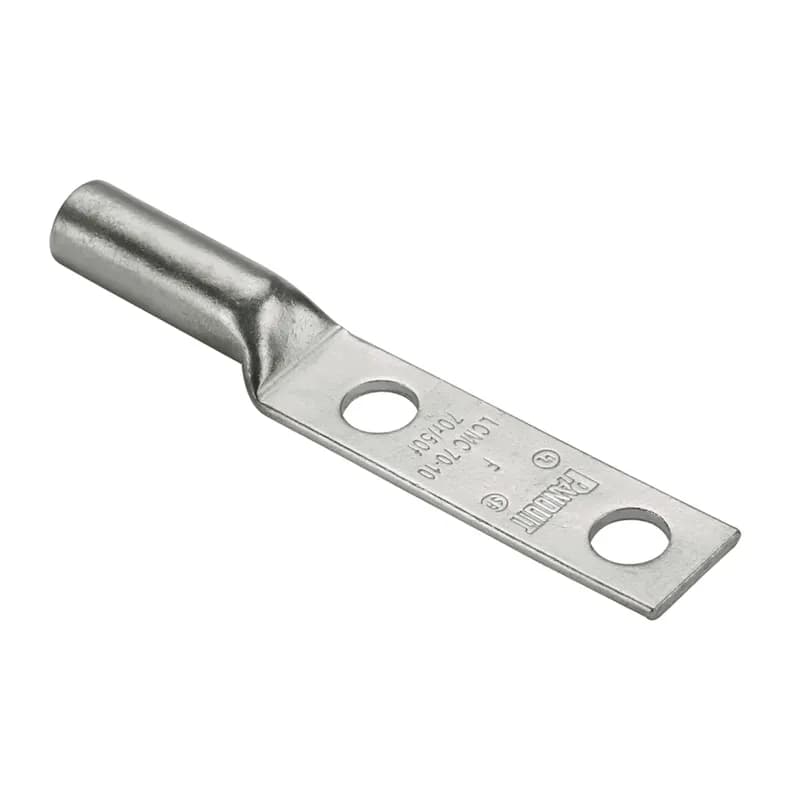

Two-hole, metric conductor, long barrel, 16mm 2r, 10mm class 5f/6f, M8 stud hole.

LCMC16-8-L

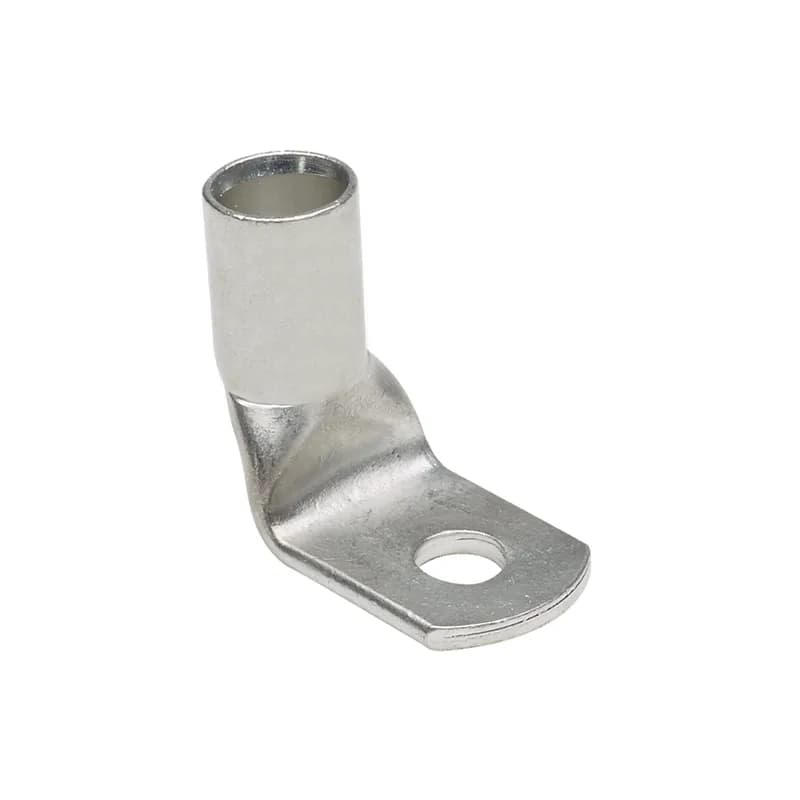

One-hole, metric conductor, standard barrel with window lug, 240mm 2r, 185mm class 5f/6f, M16 stud hole, 90 angle tongue.
