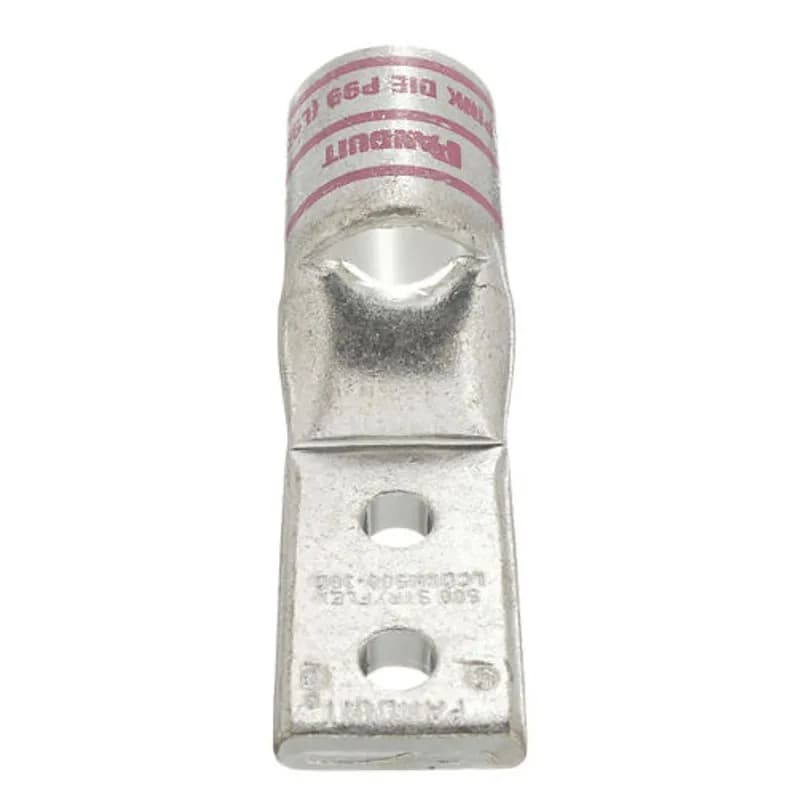

Panduit LCDXN500-12-6 - Two-hole, flex lug, standard barrel with window, narrow tongue, 500 kcmil cable, 3/8 stud hole, 1 hole spacing.
Panduit

LCDXN500-12-6

UPC: 074983825042

Documents & Media
BrochureTechnical DrawingFull Engineering DrawingInstallation InstructionsVideo Clip

Contact for Pricing

Overview

The Panduit LCDXN500-12-6 is a two-hole flex lug designed for 500 kcmil copper cable terminations, featuring a standard barrel with a window and narrow tongue for secure, high-conductivity connections. The 3/8" stud hole and single-hole spacing enable straightforward mounting to compatible bus bars or panels, ensuring reliable electrical performance in industrial and commercial applications. This flex lug accommodates 500 kcmil cable, providing a robust termination solution for high-current circuits. The two-hole design distributes mechanical stress evenly, reducing the risk of conductor damage during installation or operation. The narrow tongue design optimizes space efficiency, making it ideal for tight panel layouts where clearance is a concern. Manufactured by Panduit, a trusted name in electrical connectivity solutions, the LCDXN500-12-6 is built to meet the demands of heavy-duty electrical systems. Its construction ensures low contact resistance, minimizing power loss and heat generation. The standard barrel with a window allows for visual inspection of the cable termination, ensuring proper installation and compliance with safety standards. Applications include power distribution panels, motor control centers, and renewable energy systems where high-current terminations are required. The 500 kcmil rating makes it suitable for circuits up to 600V, providing a durable and efficient solution for demanding electrical environments.
  • Two-hole flex lug design for 500 kcmil copper cable
  • Standard barrel with window for visual inspection
  • Narrow tongue for space-efficient installations
  • 3/8" stud hole with 1-hole spacing for easy mounting
  • Manufactured by Panduit for high-current applications

Specifications

Barrel Type*
Standard
Color
Pink
Mounting
1-9/16 In.
Standard
CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
Stud Size
3/8 In.
Type
Compression Lug
Package Dimensions (L x W x H)
7.9 IN x 3.4 IN x 3.4 IN
Package Dimensions (L x W x H)
20.066 cm x 8.636 cm x 8.636 cm
Package Weight (Imperial)
3.4100 L
Package Weight (Metric)
1.5468 kg
