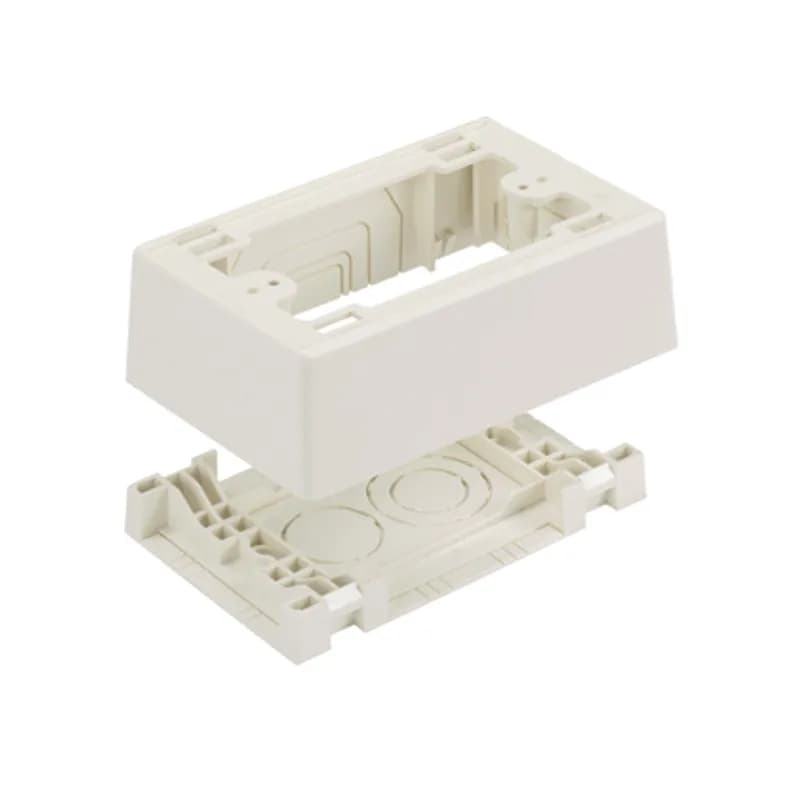

Panduit JBP1FSWH - The single gang power rated two-piece snap together outlet box accepts Pan-Way Snap-On Faceplates. For use with Pan-Way T-45 or LD, LDP, LDPH, LDS profile raceways. 5.00"L x 3.26"W x 1.62"H (127.1mm x 82.7mm x 41.1mm). Breakouts for 1/2", 3/4", or 1" diameter conduit, White.
Panduit

JBP1FSWH

UPC: 074983198238

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit JBP1FSWH is a single gang, power-rated, two-piece snap-together outlet box designed for efficient and secure cable management. Manufactured by Panduit, this box (SKU: JBP1FSWH) is engineered to accept Pan-Way Snap-On Faceplates, providing a clean and professional finish for your installations. It is specifically designed for compatibility with Panduit Pan-Way T-45 or LD, LDP, LDPH, and LDS profile raceways, ensuring seamless integration into existing Panduit infrastructure. The JBP1FSWH features a robust two-piece construction that snaps together without the need for screws, simplifying installation and reducing labor time. Its power-rated design makes it suitable for electrical applications where power outlets are required. The box includes breakouts for 1/2", 3/4", or 1" diameter conduit, offering flexibility for various wiring needs. With dimensions of 5.00"L x 3.26"W x 1.62"H (127.1mm x 82.7mm x 41.1mm), it provides ample space for connections while maintaining a compact profile. The white color ensures a discreet appearance in most environments. This outlet box is ideal for commercial, industrial, and office environments where organized power distribution and data connectivity are essential. Its snap-together design and compatibility with Panduit's Pan-Way raceway system streamline the installation process, making it a preferred choice for electricians and network installers. The power rating ensures it meets safety and performance standards for electrical outlet installations. The JBP1FSWH is manufactured in the USA, guaranteeing quality and reliability.
  • Single gang, power-rated, two-piece snap-together outlet box
  • Accepts Pan-Way Snap-On Faceplates for a clean finish
  • Compatible with Panduit Pan-Way T-45, LD, LDP, LDPH, LDS raceways
  • Includes breakouts for 1/2", 3/4", or 1" diameter conduit
  • Dimensions: 5.00"L x 3.26"W x 1.62"H (127.1mm x 82.7mm x 41.1mm)

Specifications

Application
Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate.
Color*
White
Cover Type
NA
Length
5 in
Length
127 mm
Material
PVC
Standard
RoHS Compliant
Type
Junction Box - Power Rated
Width
3.26 in
Width
82.804 mm
Package Dimensions (L x W x H)
6.4 IN x 4.6 IN x 2.9 IN
Package Weight (Imperial)
0.3 lbs
