GSCYPO6FH5AF085

The minimum bend radius is 20 times the cable OD under load and 10 times the cable OD statically.

The MPO-16 APC end has a breakout length of 39 in., and the SN end has an equal breakout length of 32 in.

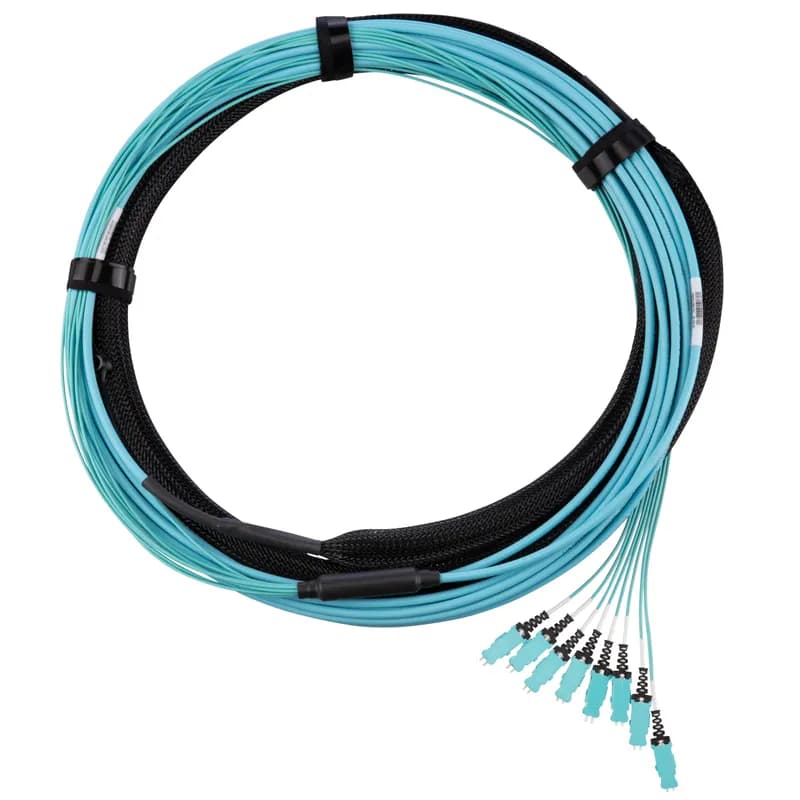

MPO-16 trunk cable assemblies are used for rapid deployment of high-density links in data center applications like main, horizontal, and zone distribution areas. They optimize cable routing and reduce installation time.

These trunk cable assemblies support high-bandwidth applications such as 400G-SR8, 800G-SR8, and 800GBASE-DR8. They are suitable for high-speed switch-to-switch links and AI/ML applications.

The available cable jacket ratings are Plenum, LSZH, and EuroClass B2Ca.

These trunk cable assemblies are available with multimode OM4 50/125μm and OM4+ Sig Core 50/125μm fiber types.

End 'A' features an MPO-16 APC female connector, while End 'B' has SN Duplex connectors.

Each trunk cable assembly contains 16 fibers.

These cable assemblies meet or exceed standards such as ISO/IEC 11801, TIA/EIA-568-C.1, TIA-604-5 (FOCIS-5), and are RoHS Compliant.

The maximum insertion loss for the Optimized Multimode MPO-16 APC connector is 0.35dB.
