Panduit GCC8-5/8-500TP - Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil (120-240mm2) Copper Cable

Panduit GCC8-5/8-500TP Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil…

UPC: 613056732872


Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 3

Multiplier: 1

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

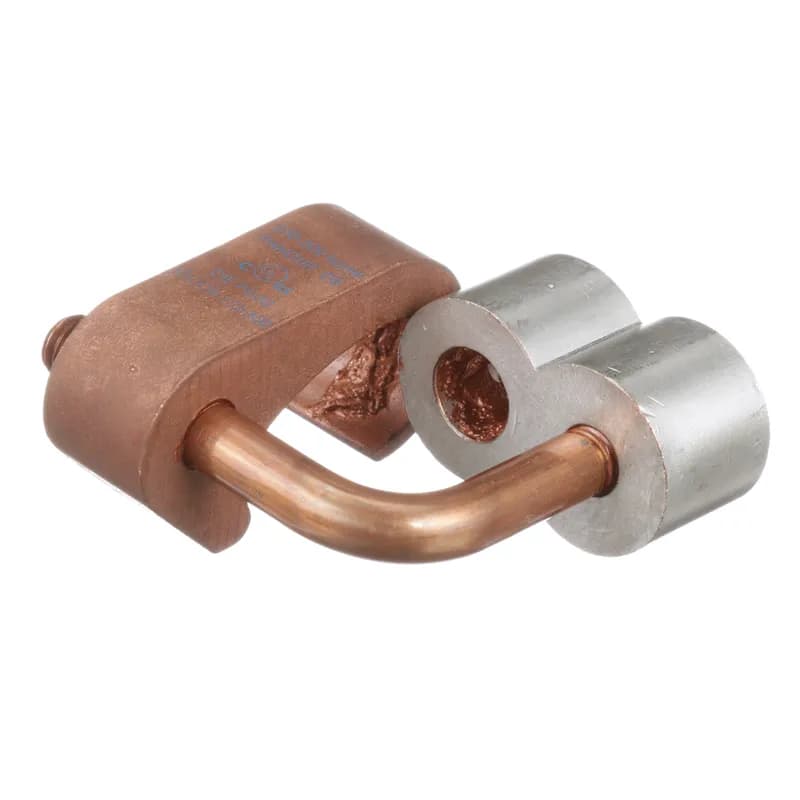

The Panduit GCC8-5/8-500TP is a tin-plated copper grounding cross connector engineered for high-current industrial grounding systems. This "8x6" style connector accommodates copper cables ranging from 250 to 500 kcmil (120-240 mm²) and secures to a 5/8" (15.9 mm) grounding rod, making it ideal for substations, utility installations, and complex grounding layouts. The heavy-wall, extruded copper construction delivers high mechanical strength and premium electrical conductivity, while the pre-applied conductive antioxidant compound ensures a durable mechanical and electrical bond, reducing installation time. The tin plating enhances corrosion resistance, extending operational life in harsh environments. Panduit die index numbers are marked on the connector for proper crimp die selection, ensuring consistent, reliable terminations. This connector is part of Panduit’s grounding product portfolio and is suitable for direct burial in earth and concrete when crimped with select Panduit or specified competitor crimp tools and dies.
  • Accommodates 250-500 kcmil (120-240 mm²) copper cables
  • Secures to 5/8" (15.9 mm) grounding rods
  • Heavy-wall, extruded high-conductivity copper construction
  • Pre-applied conductive antioxidant compound for reliable bonds
  • Marked with Panduit die index numbers for proper crimp die selection

Specifications

Application
Utility/Ground Grid
Clamp Material
High Conductivity Copper
Connection Type
Screw/Wire Clamp
Connection Type
Cross Connector
Connection Type
Screw/Wire Connection
Current Rating
250-500 kcmil (120-240 mm²)
Length
NA In.
Material
Tin-Plated Copper
Material
High Conductivity Copper
Material
Tin Plated Copper
Mounting Type
Cross connector for grounding rod
Mounting Type
Grounding rod attachment
Mounting Type
grounding rod
Poles
Multiple (cross-style design)
Series
GCC8
Series
GCC8-5/8-500TP
Size
5/8" Rod (15.9mm) - 250 - 500 kcmil (120-240mm²)
Size
5/8" (15.9mm) rod, 250 - 500 kcmil (120-240mm2)
Size
5/8" (15.9mm) Rod, 250-500 kcmil (120-240 mm²)
Size
8x6 style
Size
5/8" (15.9 mm) rod, 250-500 kcmil (120-240 mm²)
Standard
cULus Listed to UL467 for Direct Burial Grounding
Type
Grounding Connector
Package Dimensions (L x W x H)
4.75 IN x 3.44 IN x 3.44 IN
Package Weight (Imperial)
0.935 lbs
Grounding "Figure 6" Style Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 1/0 Str - 2/0 Str (50-70mm2) Tap

FIG6-250-2/0

Grounding "Figure 6" Style Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 1/0 Str - 2/0 Str (50-70mm2) Tap
No.12 Wire Grounding Pigtails (100/Jar)

PT40BULK

No.12 Wire Grounding Pigtails (100/Jar)
Rack Cabinet Ground Kit

BWK6A12

Rack Cabinet Ground Kit
Tin Plated Grounding "8x6" Style Cross Connector, 1" Rod (25.4mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable

GCC8-1-250TP

Tin Plated Grounding "8x6" Style Cross Connector, 1" Rod (25.4mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable
Tin Plated Grounding "8x6" Style Cross Connector, 3/4" Rod (19.1mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable

GCC8-3/4-250TP

Tin Plated Grounding "8x6" Style Cross Connector, 3/4" Rod (19.1mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable
4 AWG (Sol.) - 2/0 AWG (Str.) Bronze Ground Clamp Connector, 3/8" Bolts, 2 Piece Clamp & 2 Bolts

GJ2/0-38-5

4 AWG (Sol.) - 2/0 AWG (Str.) Bronze Ground Clamp Connector, 3/8" Bolts, 2 Piece Clamp & 2 Bolts
Tin Plated Grounding "8x6" Style Cross Connector, 1/2" Rod (12.7mm), 250 - 500 kcmil (120-240mm2) Copper Cable

GCC8-1/2-500TP

Tin Plated Grounding "8x6" Style Cross Connector, 1/2" Rod (12.7mm), 250 - 500 kcmil (120-240mm2) Copper Cable
3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt

GL250-38-5

3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt
