Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*
Overview
- Bonds ladder racks, wire baskets, and Panduit Wyr-Grid Systems without drilling.
- Paint-piercing teeth provide electrical continuity and minimize debris.
- Front and back mounting screw options for easy installation and inspection.
- Supports grounding conductors in telecommunication rooms.
- Manufactured in the US.
Specifications
Application | NA |
Length | NA In. |
Material | Steel |
Material | Zinc plated steel |
Mounting Type | Screw Mount |
Mounting Type | Screw Mounting (Front/Back) |
Series | GACB |
Type | Auxiliary Cable Bracket |
Package Dimensions (L x W x H) | 8 IN x 5 IN x 1.5 IN |
Package Weight (Imperial) | 0.715 lbs |
You May Also Be Interested In
Frequently Asked Questions
What is the performance certification of the product?
The product is UL 467 Listed and CSA 22.2 Certified for grounding and bonding.
What is the minimum separation for grounding conductors?
The system maintains a minimum separation of 2 in. between grounding conductors and other cables.
What type of bonding jumper is included?

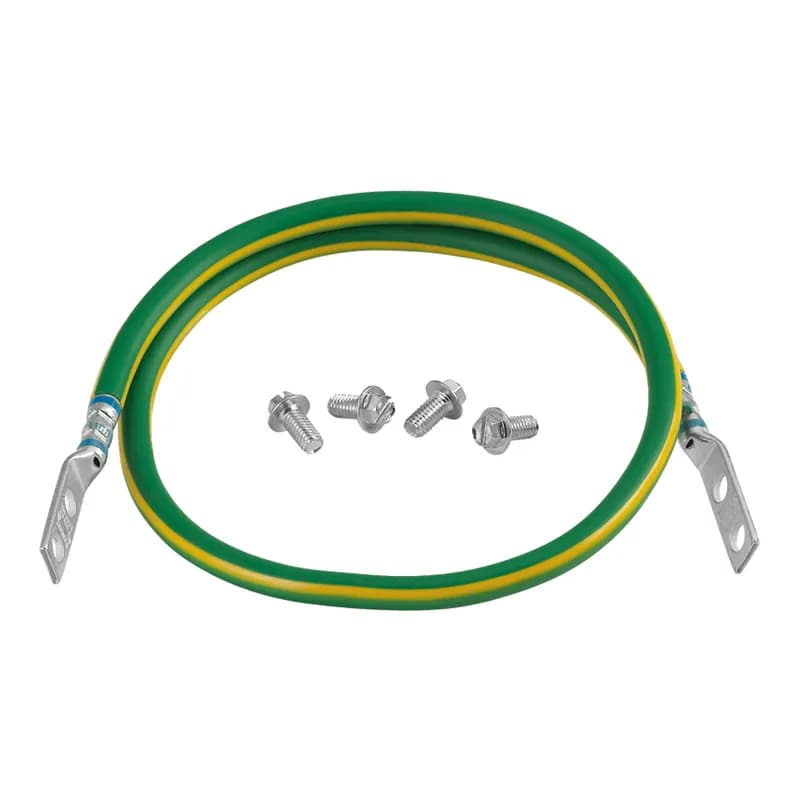

The product includes a #6 AWG bonding jumper with green/yellow insulation, factory terminated on both ends.
What materials are used for the grounding brackets?
The brackets are made of cold rolled plate 1008 carbon steel and are zinc plated.
How are the cable pathway sections bonded?
Cable pathway sections are bonded together using a #6 AWG bonding jumper or a UL Listed connector.
What applications are suitable for this product?
The product is suitable for routing and supporting overhead grounding conductors along ladder racks and wire basket systems.
