Panduit FZURPEN74XNF060 - OM4 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 60 Feet, Aqua.
Panduit

FZURPEN74XNF060

UPC: 613056192799

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

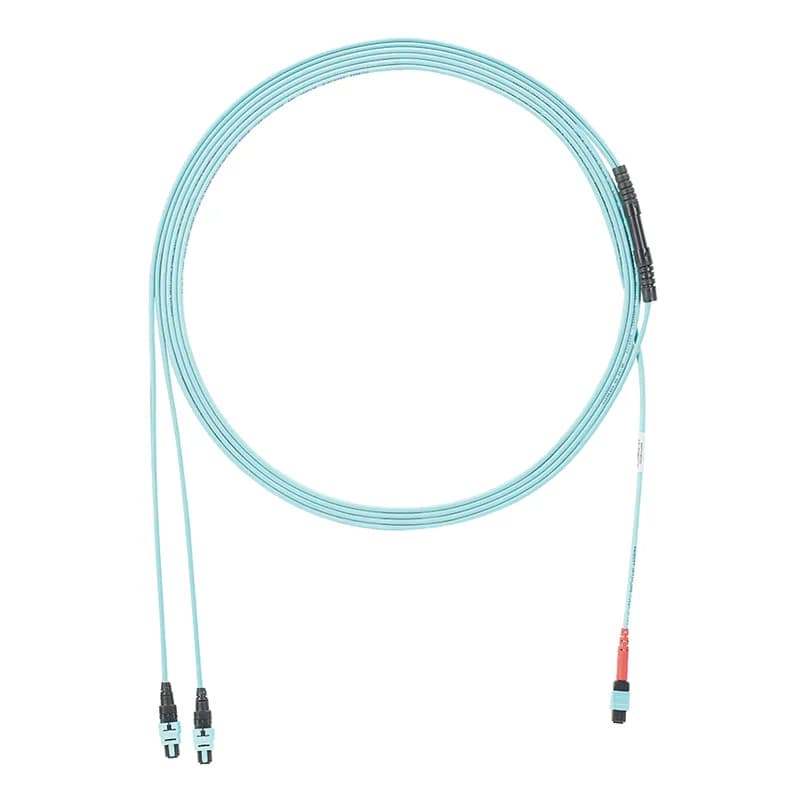

Panduit FZURPEN74XNF060 is a high-density OM4 multimode fiber optic interconnect cable designed for data center and enterprise applications. This 60-foot plenum-rated cable features a 24-fiber MPO female connector on one end and splits into two 12-fiber PanMPO female connectors on the other, following Method A polarity. The OM4 fiber type supports 10GbE up to 550 meters and 40/100GbE up to 150 meters, making it ideal for high-speed backbone and horizontal cabling. The plenum-rated jacket ensures compliance with fire safety codes in air-handling spaces. Optimized insertion loss (IL) design minimizes signal degradation, while the aqua color coding aligns with TIA-598-C standards for multimode fiber identification. This interconnect cable is manufactured in the US and carries a UNSPSC code of 26121650.
  • 24-fiber OM4 multimode fiber for 10G/40G/100G applications
  • Plenum-rated jacket for air-handling space compliance
  • Method A polarity for standard MPO interconnects
  • Optimized insertion loss for reliable signal integrity
  • Aqua color coding per TIA-598-C standards

Specifications

Application
OM4
Color
Aqua
Connection Type
MPO Female to PanMPO Female
Connection Type
MPO Female to (2) 12-fiber Female PanMPO
Connector 1 Type*
MPO Female
Connector 2 Type*
PanMPO Female
Fiber Count*
24
Length
60.00 FT
Material
Plenum
Material
OM4 Multimode Fiber
Poles
24
Poles
24F MPO Female to (2) 12-fiber Female PanMPO
Series
FZURPEN74XNF
Size
24-fiber
Size
24F MPO Female to (2) 12-fiber Female PanMPO
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant
Temperature Rating
NA F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.829 lbs
