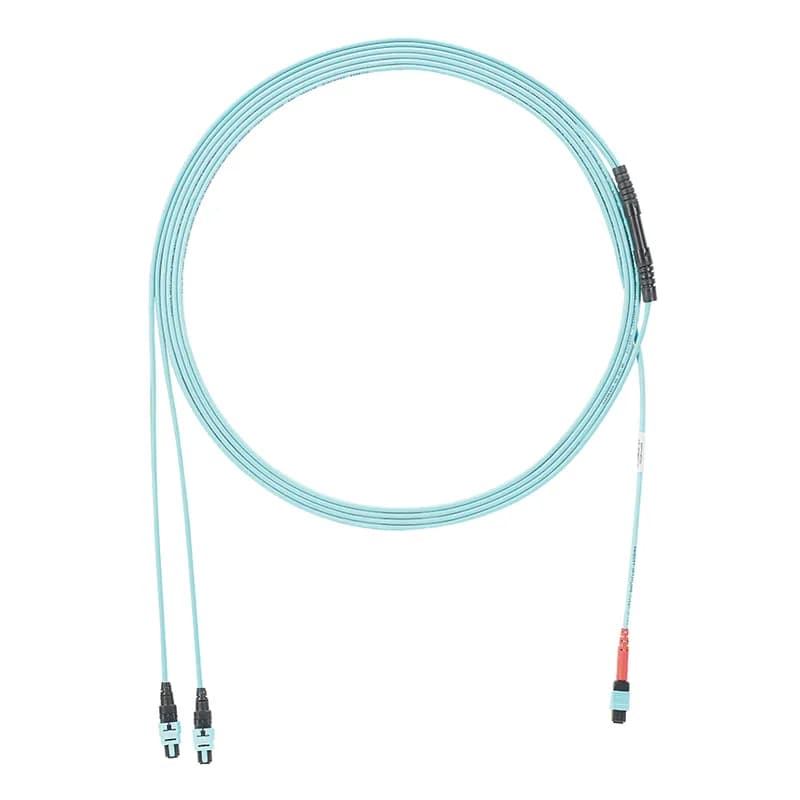

Panduit FZURPEN74XNF041 - OM4 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 41 Feet, Aqua.
Panduit

FZURPEN74XNF041

UPC: 613056192607

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

The Panduit FZURPEN74XNF041 is a high-density OM4 24-fiber interconnect cable designed for robust data center and enterprise network applications. This plenum-rated cable ensures compliance with stringent fire safety standards, making it suitable for installation in air-handling spaces. It features a 24-fiber MPO female connector on one end, which splits into two 12-fiber female PanMPO connectors on the other end, facilitating efficient network segmentation and expansion. Utilizing Method A polarity, this configuration is optimized for duplex transmission and ensures correct channel mapping in high-speed Ethernet and Fibre Channel environments. The OM4 fiber type provides enhanced bandwidth and distance capabilities compared to OM3, supporting 100 Gigabit Ethernet up to 150 meters and 400 Gigabit Ethernet up to 100 meters, crucial for demanding data center interconnects and backbone applications. With a total length of 41 feet, this cable offers ample reach for typical rack-to-rack or row-to-row connections. The aqua color coding clearly identifies it as an OM4 fiber cable, aiding in network management and preventing misconnections. Panduit's commitment to quality is evident in the optimized insertion loss (IL) of this cable, ensuring signal integrity and reliable performance. The FZURPEN74XNF041 is manufactured in the USA, guaranteeing adherence to high production standards. This interconnect cable is ideal for high-density patching, server-to-switch connections, and storage area networks where performance and reliability are paramount. Its specific configuration supports efficient migration to higher bandwidth services and simplifies complex cabling infrastructures. SKU: FZURPEN74XNF041. UNSPSC Code: 26121650.
  • OM4 24-fiber MPO Female to (2) 12-fiber Female PanMPO interconnect
  • Plenum-rated jacket for air-handling spaces
  • Method A polarity for duplex transmission optimization
  • Optimized Insertion Loss (IL) for signal integrity
  • 41 feet length, aqua color for OM4 identification

Specifications

Application
OM4
Color
Aqua
Connector 1 Type*
MPO Female
Connector 2 Type*
PanMPO Female
Fiber Count*
24
Length
41.00 FT
Material
Plenum
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant
Temperature Rating
NA F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.6 lbs
