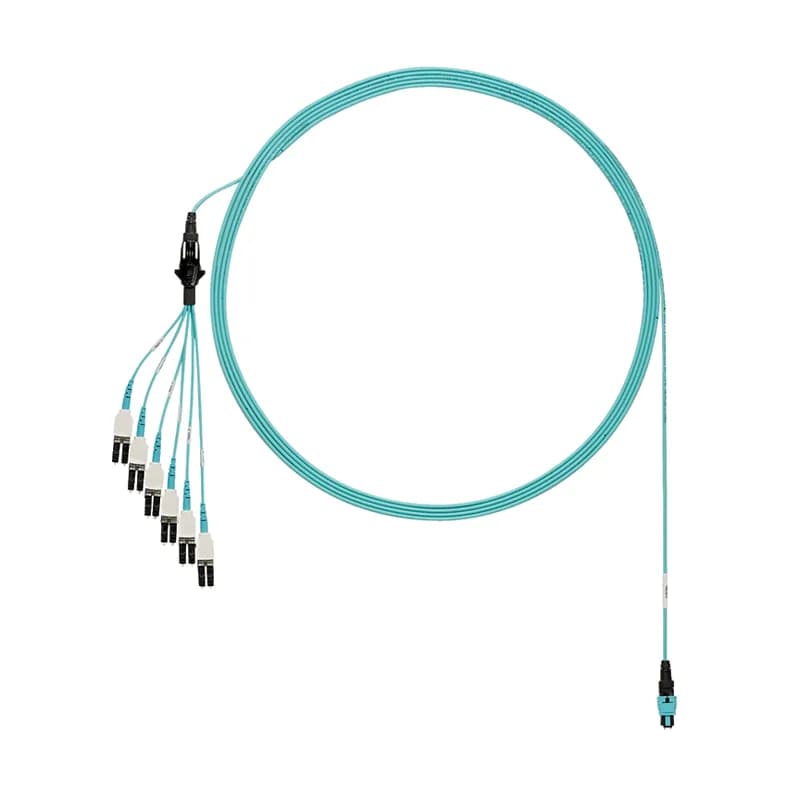

Panduit FZTRP8NUJSNF086 - OM4 12-fiber round harness cable assembly, plenum (OFNP) rated, PanMPO Male to LC Uniboot, staggered pairs, 1 and 2 shortest, Std. IL. Aqua, 86 ft.
Panduit

FZTRP8NUJSNF086

UPC: 074983768929

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Overview

The Panduit FZTRP8NUJSNF086 is a 12-fiber OM4 round harness cable assembly, designed for high-speed data transmission in plenum spaces. This cable features a plenum (OFNP) rating, ensuring compliance with fire safety standards for indoor installations. It utilizes PanMPO Male connectors on one end and LC Uniboot connectors on the other, facilitating high-density connections. The staggered pair configuration, with fibers 1 and 2 being the shortest, optimizes bend radius and maintains signal integrity. With a standard insertion loss, this 86-foot aqua-jacketed cable is suitable for data centers, enterprise networks, and backbone cabling. OM4 multimode fiber supports 10GbE up to 300 meters and 40GbE/100GbE up to 150 meters, making it a robust choice for bandwidth-intensive applications. Manufactured in the US, this assembly aligns with UNSPSC 26121650 classification.
  • OM4 Multimode Fiber for high-speed data transmission
  • Plenum (OFNP) rated for safe indoor installation
  • PanMPO Male to LC Uniboot connectors for high-density
  • Staggered pairs (1 & 2 shortest) optimize bend radius
  • 86-foot length for flexible deployment

Specifications

Application
OM4
Color
Aqua
Color
Other
Connection
Ribbon cable (fibre optic)
Connector 1 Type*
PanMPO -12 Male
Connector 2 Type*
LC Duplex Uniboot
Fiber Compatibility*
OM4 50/125?m
Fiber Count*
12
Length
86.00 FT
Material
Plenum (OFNP)
Special Features
Indoor
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-604-10 (FOCIS-10), TIA/EIA-568-C.1 and RoHS Compliant
Temperature Rating
140 F
Type
Harness Cable Assembly
Package Dimensions (L x W x H)
10 IN x 14 IN x 1 IN
Package Weight (Imperial)
1.12 lbs
