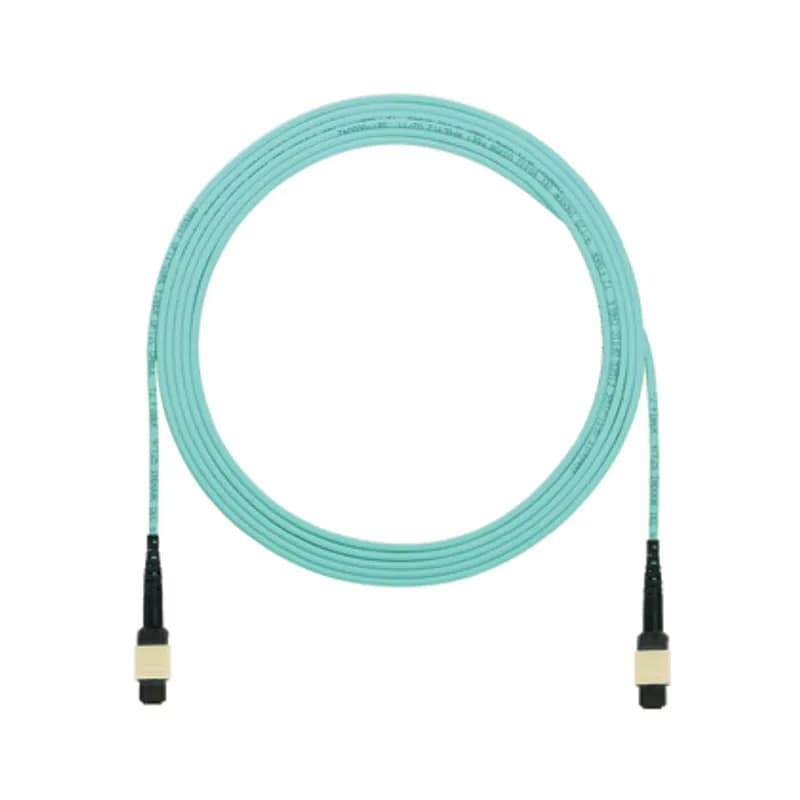

Panduit FZTRP5N5NANF077 - OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 77 ft
Panduit

FZTRP5N5NANF077

UPC: 074983916764

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Overview

This Panduit FZTRP5N5NANF077 is a 77-foot OM4 12-fiber interconnect cable assembly designed for plenum spaces. It features MPO female connectors on both ends and adheres to Method A Standard Insertion Loss (Std IL) specifications. The cable is plenum (OFNP) rated, ensuring compliance with fire safety standards for use in air handling spaces. This assembly is manufactured by Panduit, a recognized leader in network infrastructure solutions. The absence of a pulling eye indicates it is intended for direct installation within structured cabling systems where pulling tension is managed by other means. This specific configuration is ideal for high-density data center environments and enterprise networks requiring reliable, high-speed optical connectivity. The OM4 fiber type supports 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters, making it suitable for demanding backbone and horizontal cabling applications. Manufactured in the USA, this cable assembly offers dependable performance for critical network infrastructure. Its construction prioritizes safety and performance in commercial building environments.
  • OM4 12-fiber interconnect cable assembly
  • Plenum (OFNP) rated for air handling spaces
  • MPO female to MPO female connectors
  • Method A Standard Insertion Loss (Std IL)
  • 77 feet in length, manufactured by Panduit

Specifications

Application
OM4
Color
Aqua
Connection Type
MPO Female to MPO Female
Connector 1 Type*
MPO Female
Connector 2 Type*
MPO Female
Fiber Compatibility*
OM4 50/125um
Fiber Count*
12
Ip Rating
OFNP
Length
77.00 FT
Material
Plenum
Size
12 fiber
Special Features
Indoor
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1 RoHS Compliant
Temperature Rating
158 F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.74 lbs
