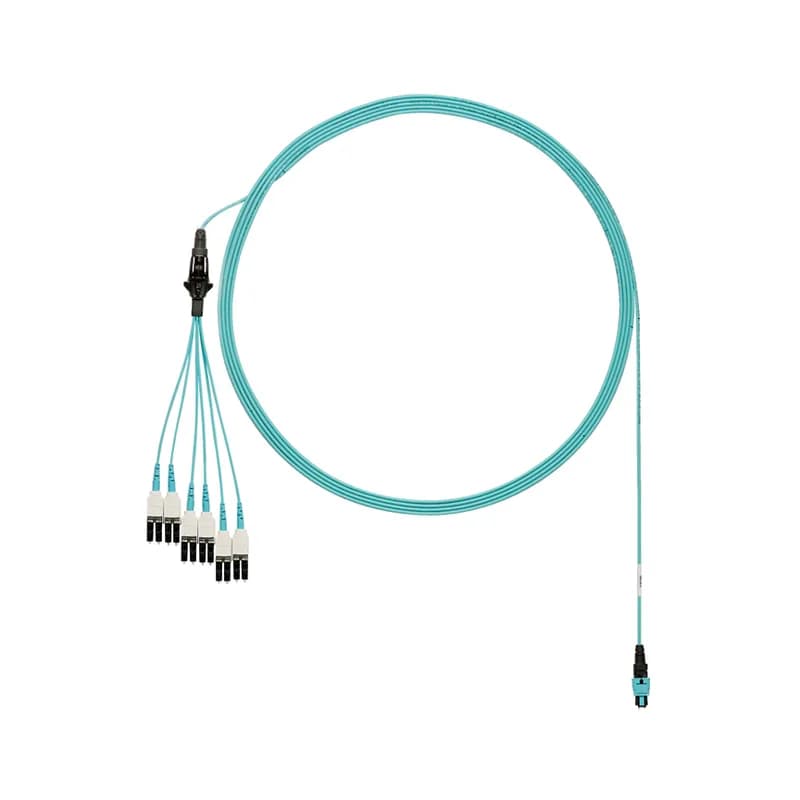

Panduit FXTRP8NUJSNF084 - OM3 12-fiber, round harness cable assembly, plenum (OFNP), PanMPO Male to LC Uniboot staggered pairs 1 and 2 shortest, Std IL, Aqua, 84 ft.
Panduit

FXTRP8NUJSNF084

UPC: 074983750771

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Overview

The Panduit FXTRP8NUJSNF084 is a high-density OM3 12-fiber round harness cable assembly designed for high-speed data center and enterprise network applications. This plenum-rated (OFNP) cable features PanMPO Male connectors on one end and LC Uniboot staggered pairs 1 and 2 shortest connectors on the other, ensuring optimized polarity and minimal insertion loss. The 84-foot length provides flexibility for routing in structured cabling systems, while the Aqua jacket color indicates OM3 multimode fiber compliance for 10GbE and 40GbE applications. The cable assembly supports standard insertion loss (Std IL) performance, making it ideal for high-density patching environments where space and airflow are critical. Suitable for use in data centers, enterprise networks, and campus backbones, this cable leverages Panduit's manufacturing expertise in the US to deliver reliable, high-performance connectivity. The PanMPO connector enables quick deployment in high-density MPO-based systems, while the LC Uniboot connectors provide easy polarity management and reduced bend radius for improved airflow and cooling efficiency. OM3 fiber supports 10GbE up to 300 meters and 40GbE up to 100 meters, making this cable a versatile choice for modern network infrastructures.
  • OM3 12-fiber multimode cable assembly with PanMPO Male to LC Uniboot connectors
  • Plenum-rated (OFNP) for use in air handling spaces per NEC/CEC
  • Staggered pairs 1 and 2 shortest for optimized polarity management
  • Standard insertion loss (Std IL) for reliable high-speed connectivity
  • 84-foot length with Aqua jacket for OM3 fiber identification

Specifications

Application
OM3
Color
Aqua
Color
Other
Connection
Ribbon cable (fibre optic)
Connection Type
PanMPO Male to LC Uniboot Staggered Pairs 1 and 2
Connector 1 Type*
PanMPO -12 Male
Connector 2 Type*
LC Duplex Uniboot
Fiber Compatibility*
OM3 10 GbE 50/125?m
Fiber Count*
12
Length
84.00 FT
Material
Plenum (OFNP)
Poles
12-fiber
Size
84 ft
Special Features
Indoor
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS compliant
Temperature Rating
140 F
Type
Harness Cable Assembly
Package Dimensions (L x W x H)
10 IN x 14 IN x 1 IN
Package Weight (Imperial)
1.11 lbs
