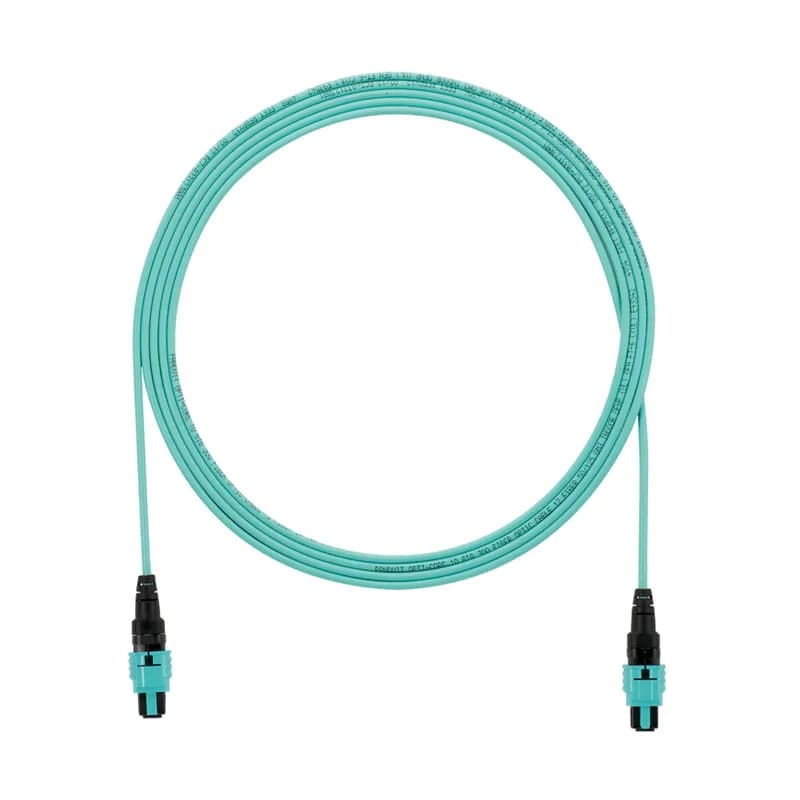

Panduit FXTRP7N7NANF064 - OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 64 ft
Panduit

FXTRP7N7NANF064

UPC: 074983570669

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

Panduit FXTRP7N7NANF064 is a high-density OM3 12-fiber interconnect cable assembly designed for robust data center and enterprise network applications. This plenum-rated (OFNP) cable ensures safety in air-handling spaces, making it ideal for installations where fire retardancy is critical. The assembly features PanMPO connectors on both ends, configured as Female-to-Female, facilitating reliable and secure connections within structured cabling systems. Utilizing Method A polarity, this cable is optimized for duplex communication standards. It meets standard insertion loss (Std IL) requirements, ensuring signal integrity for demanding data transmission. The cable is aqua-colored, aiding in visual identification and management within network infrastructure. With a length of 64 feet, it provides ample reach for inter-rack or intra-rack connectivity. The Panduit PanMPO connector system is engineered for high-density fiber optic patching, offering a compact and efficient solution for managing fiber counts. This specific model does not include a pulling eye, simplifying installation in environments where pulling tension is managed through other means. The FXTRP7N7NANF064 is manufactured in the USA, ensuring adherence to stringent quality control standards. This cable assembly is a key component for high-speed networking, supporting applications such as 10 Gigabit Ethernet and beyond, where reliable and high-bandwidth fiber connectivity is paramount. Its OM3 fiber type offers enhanced performance over legacy multimode fibers, supporting longer reach for 10GbE and providing a future-proof pathway for higher data rates. The plenum rating (OFNP) is essential for compliance in commercial buildings and data centers, preventing the spread of fire and smoke. The PanMPO connectors are designed for easy mating and un-mating, while maintaining a secure connection to prevent accidental disconnections. This 64-foot assembly is suitable for various deployment scenarios, from server racks to telecommunications rooms, ensuring efficient data flow and network reliability.
  • OM3 12-fiber construction for high-speed data transmission
  • Plenum rated (OFNP) for safe installation in air-handling spaces
  • PanMPO Female to PanMPO Female connectors with Method A polarity
  • 64 ft length in standard aqua color for easy identification
  • Manufactured in the USA with standard insertion loss (Std IL)

Specifications

Application
OM3
Color
Aqua
Connector 1 Type*
PanMPO Female
Connector 2 Type*
PanMPO Female
Fiber Compatibility*
OM3 50/125um
Fiber Count*
12
Length
64.00 FT
Material
Plenum
Special Features
Indoor
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
140 F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.63 lbs

Similar Products

FXTRP7N7NANF060

Length: 60.00 FT

FXTRP7N7NANF061

Length: 61.00 FT

FXTRP7N7NANF062

Length: 62.00 FT

FXTRP7N7NANF063

Length: 63.00 FT

Size: 12 fiber

Ip Rating: OFNP

FXTRP7N7NANF065

Length: 65.00 FT

Size: 12 fiber

Connection Type: PanMPO Female to PanMPO Female

FXTRP7N7NANF066

Length: 66.00 FT

Frequently Asked Questions

What is the operating temperature range?

The operating temperature range is -10°C to 60°C.

What types of fiber are available for this product?

The product supports OM3 50/125μm and OM4 50/125μm multimode fiber types.

What is the installation temperature requirement?

The installation temperature requirement is between 0°C to 40°C.

What connector types are available for this product?

The product features PanMPO™ Female and PanMPO™ Male connector types.

What standards does this product meet?

The product meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA/EIA-568-C.1 standards.

What is the maximum cable attenuation for multimode fiber?

The maximum cable attenuation is 3.5dB/km at 850nm and 1.5dB/km at 1300nm.

What is the minimum bend radius for this cable?

The minimum bend radius for the cable is 30mm.

What is the tensile strength of the cable?

The cable has a tensile strength of 220N.

What are the jacket ratings for the cable?

The cable has Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH) ratings.

What is the maximum connector insertion loss?

The maximum connector insertion loss for multimode is 0.50dB.
