Panduit FWMHSSGS-3456 - The HD Fusion Wall Mount Fiber Splice Enclosure houses, organizes, manages and protects cable to cable fusion splice connections. It can accommodate individual or ribbon fibers. This enclosure features split doors and supports up to 3,456 ribbon fibers.
Panduit

FWMHSSGS-3456

UPC: 613056765313

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Overview

The Panduit FWMHSSGS-3456 HD Fusion Wall Mount Fiber Splice Enclosure is a high-density, rugged solution designed to house, organize, manage, and protect cable-to-cable fusion splice connections in industrial and enterprise environments. Engineered for scalability, this enclosure accommodates both individual and ribbon fibers, making it ideal for high-fiber-count applications such as data centers, central offices, healthcare facilities, and campus networks. The unit supports up to 3,456 ribbon fibers, ensuring compatibility with modern high-density fiber deployments. Key features include split doors for easy access and cable management, robust steel construction for durability, and multiple cable entry points (top and bottom) to facilitate organized routing. The enclosure maintains proper fiber bend radius compliance, protecting splices and ensuring signal integrity. It is designed for vertical or horizontal mounting, providing flexibility in installation. The internal cable management shelf and pivoting splice holders enable efficient fiber routing and splicing operations, while the transparent lid with hinge and latch allows for quick inspection and maintenance. The FWMHSSGS-3456 is manufactured in the USA and is part of Panduit's trusted line of fiber management solutions, ensuring reliability and long-term performance in demanding environments.
  • Supports up to 3,456 ribbon fibers for high-density applications
  • Accommodates both individual and ribbon fibers
  • Split doors for easy access and cable management
  • Robust steel construction with top and bottom cable entry points
  • Maintains proper fiber bend radius for signal integrity

Specifications

Color
Gray
Depth
15 In.
Slot Capacity
NA
Type
Fiber Optic Splice Enclosure
Width
24 In.
Package Dimensions (L x W x H)
42.5 IN x 28 IN x 19.5 IN
Package Weight (Imperial)
145 lbs
Switch Ready Network Zone System; 24" x 24"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies.

Z22R-S24

Switch Ready Network Zone System; 24" x 24"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies.
Universal Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPS's

Z23U-S25S

Universal Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPS's
Universal Network Zone System; 24" x 36"; 316 stainless steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-

Z23U-625

Universal Network Zone System; 24" x 36"; 316 stainless steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-
Switch Ready Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPSs.

Z23R-S25

Switch Ready Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPSs.

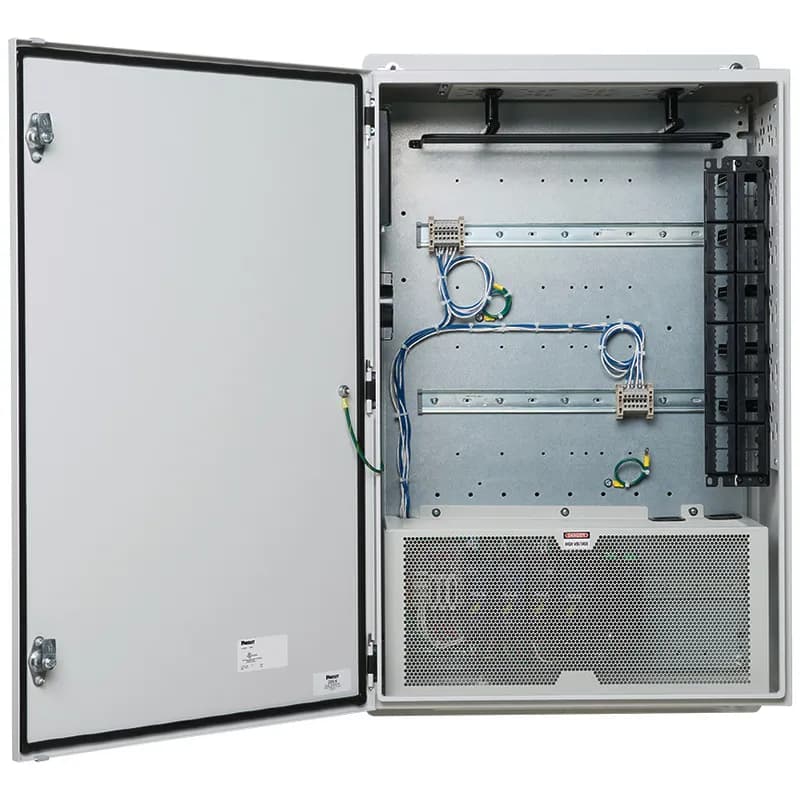

Universal Network Zone System, 24" x 36", 316 stainless steel, for two industrial switches, includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies, battery UPS.

Z23U-621S

Universal Network Zone System, 24" x 36", 316 stainless steel, for two industrial switches, includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies, battery UPS.

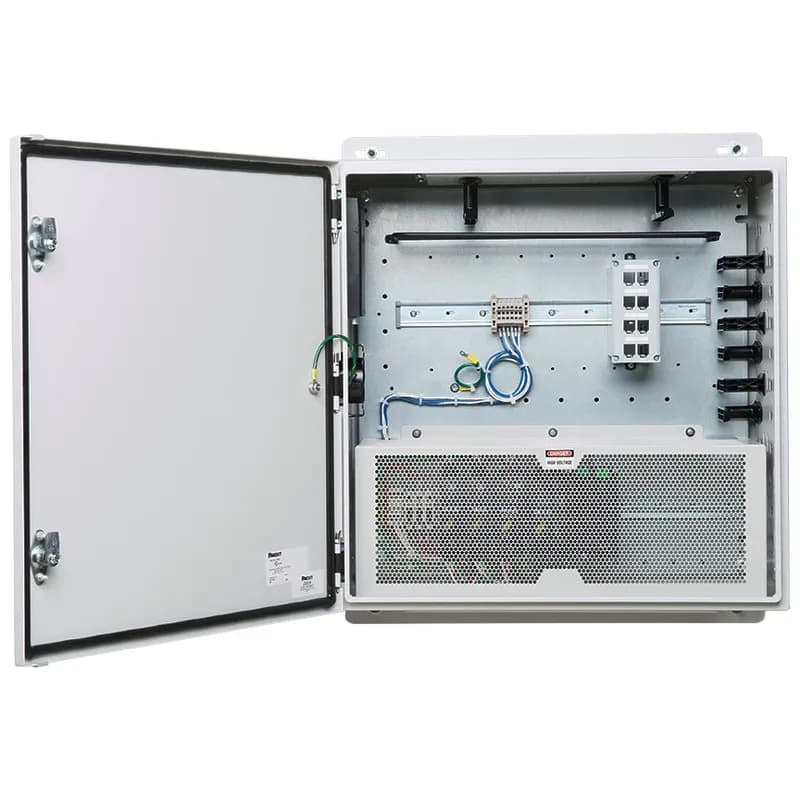

Universal Network Zone System, 24" x 24", mild steel enclosure, for one industrial switch, includes (8) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies, battery UPS, PoE

Z22U-S16

Universal Network Zone System, 24" x 24", mild steel enclosure, for one industrial switch, includes (8) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber uplink patch cords with (6) adaptors and redundant power supplies, battery UPS, PoE

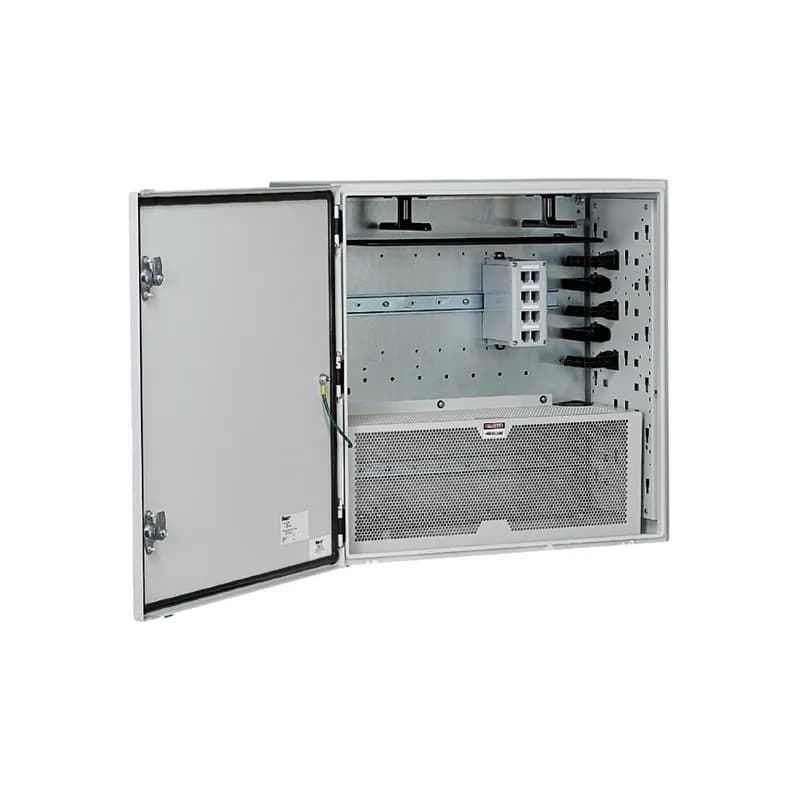

Pre-Configured Network Zone System, 24" x 24" 316 stainless steel enclosure, for one industrial switch, includes (8) Cat 6A STP copper patch cords and jacks, (2) MM LC fiber patch cords with (6) LC adapters, backplane and cable management.

Z22C-6S

Pre-Configured Network Zone System, 24" x 24" 316 stainless steel enclosure, for one industrial switch, includes (8) Cat 6A STP copper patch cords and jacks, (2) MM LC fiber patch cords with (6) LC adapters, backplane and cable management.
Pre-Configured Network Zone System, 24" x 36", 316 stainless steel enclosure, for two industrial switches, includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber patch cords with (6) adaptors, backplane and cable management.

Z23C-6S

Pre-Configured Network Zone System, 24" x 36", 316 stainless steel enclosure, for two industrial switches, includes (16) Cat 6A STP copper patch cords and jacks, (4) MM LC fiber patch cords with (6) adaptors, backplane and cable management.
Pre-Configured Network Zone System, 24" x 24" 316 stainless steel enclosure, for one industrial switch, includes (8) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber patch cords with (6) LC adapters, backplane and cable management.

Z22C-6

Pre-Configured Network Zone System, 24" x 24" 316 stainless steel enclosure, for one industrial switch, includes (8) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber patch cords with (6) LC adapters, backplane and cable management.

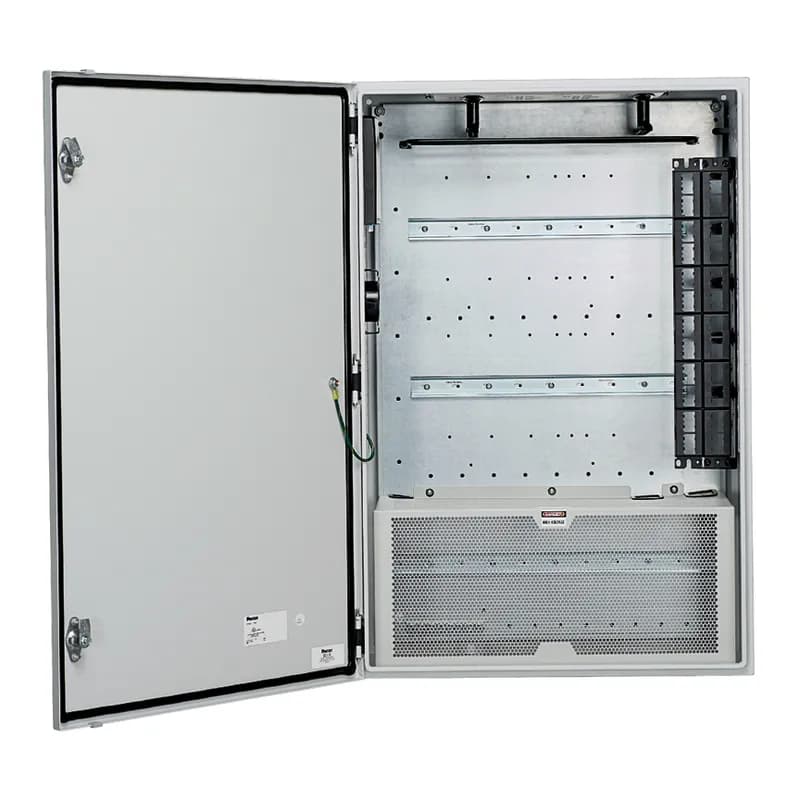

The Cable Routing Trough attaches to the rack where it supports and contains cable for rack-to-rack cable routing. It is compatible with any standard EIA 19 inch (483mm) rack or cabinet. The trough is 4RU in height, 4.5 in. deep and is black in color.

Z23C-SS

The Cable Routing Trough attaches to the rack where it supports and contains cable for rack-to-rack cable routing. It is compatible with any standard EIA 19 inch (483mm) rack or cabinet. The trough is 4RU in height, 4.5 in. deep and is black in color.
Universal Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPS's

Z23U-S25

Universal Network Zone System; 24" x 36"; mild steel enclosure; for two industrial switches; includes (16) Cat 6 UTP copper patch cords and jacks, (4) MM LC fiber uplink patch cords with (6) adaptors, redundant power supplies and (2) maintenance-free UPS's
Universal Network Zone System; 24" x 36"; mild steel enclosure; for one industrial switch; includes (16) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber uplink patch cords and (6) adaptors, redundant power supplies and maintenance-free UPS

Z23U-S15

Universal Network Zone System; 24" x 36"; mild steel enclosure; for one industrial switch; includes (16) Cat 6 UTP copper patch cords and jacks, (2) MM LC fiber uplink patch cords and (6) adaptors, redundant power supplies and maintenance-free UPS

Frequently Asked Questions

What is the fiber capacity of the FWMHSSGS-3456 enclosure?

The FWMHSSGS-3456 enclosure supports 1,152 individual fibers or 3,456 ribbon fibers.

What are the dimensions of the FWMHSSGS-3456 enclosure?

The FWMHSSGS-3456 enclosure measures 24 in. wide x 36 in. high x 15 in. deep.

Is the enclosure structure grounded?

Yes, the enclosure structure and doors are integrally grounded and bonded.

Can the FWMHSSGS-3456 be rack mounted?

No, cabinet/rack mounting is only available for the FWMHSSG-864 model, not the FWMHSSGS-3456.

How can the FWMHSSGS-3456 enclosure be mounted?

It can be wall-mounted using 5/16" or M8 hardware, overhead mounted with M10 threaded rod, or freestanding on the floor using M10 leveling legs.

Is the FWMHSSGS-3456 enclosure available in other colors?

Yes, the FWMHSSGS-3456 is available in White by replacing the "G" with a "W" in the part number.

What is the primary function of this fiber splice enclosure?

It houses, organizes, manages, and protects cable to cable fusion splice connections, accommodating medium to large count fiber optic cables.

What cable management features does the enclosure offer?

It features adjustable cable management that shifts left/right, removable cable plates, and rotatable cable plates for entry/exit points.

Does the enclosure have special door features?

Yes, the doors are tool-free for removal/installation and include an integrated document holder.

What are the features of the splice trays?

The splice trays are rotatable for easy viewing, even when fully populated, and accommodate individual or ribbon fibers.

How to Install the FWMHSSGS-3456 Enclosure

This guide provides step-by-step instructions for installing and configuring the FWMHSSGS-3456 enclosure, including mounting, wiring, and initial setup.

Estimated time: 1h

Tools needed:

Phillips screwdriver, Socket (11/32) for hex nuts

Supplies needed:

Mounting screws, Cable glands, Incoming cable plates, Tak Ty

  1. Mount the enclosure

    Secure the enclosure to a flat wall using appropriate mounting hardware. Ensure the wall is flat to prevent distortion.

  2. Install incoming cable plates

    Align the incoming cable plates with the incoming cables and secure them using the mounting nuts from the side or top/bottom cover plates.

  3. Connect the cable glands

    Remove the plastic plugs from the cutouts and replace them with cable glands. Tighten the cable glands around the incoming cables to secure them.

  4. Route the fiber cables

    Strip the outer jacket of the fiber cables to expose at least 20 feet of fiber. Route the fibers within the enclosure and secure them using Tak Ty or saddle clips.

  5. Install splice trays

    Insert the upper pin of the splice tray into the splice tray holder and snap the lower pin into the plastic snap holder. Ensure up to 24 splice trays are installed.

  6. Calibrate and test connections

    Use a multimeter to verify all connections are secure and functioning correctly. Ensure that the fiber cables are properly routed and secured.
