Contact for Pricing
Minimum Qty: 1640
Multiplier: 1
*Contact for lower quantities*
Overview
- 6-Fiber OM1 Multimode Fiber
- Plenum (OFCP) Rated Jacket for Indoor Use
- Armored Construction for Outdoor Durability and Rodent Resistance
- Central Tube Design with 250µm Fibers
- Indoor/Outdoor Versatility Eliminates Transition Cabling
Specifications
Bend Radius | NA in |
Color | Black |
Fiber Size | OM1 62.5/125 m |
Fiber Size | OM1 62.5/125µm |
Fiber Type | OM1 |
Flammability Rating | Plenum (OFCP) |
Flammability Rating* | Plenum (OFCP) |
Number of Fibers | 6 |
Tensile Strength | 400 lb |
Type | Bulk Fiber Optic Indoor/Outdoor Cable |
Package Weight (Imperial) | 0.02 lbs |
FSKP606
The 6 fiber indoor/outdoor tight buffered cable is OM1, Plenum (OFNP) rated and features 900 buffered fibers.
FSKP612
The 12 fiber indoor/outdoor tight buffered cable is OM1, Plenum (OFNP) rated and features 900 buffered fibers.
FSLP612
The 12 fiber indoor/outdoor armored tight buffered cable is OM1, Plenum (OFCP) rated and features features 900 buffered fibers.

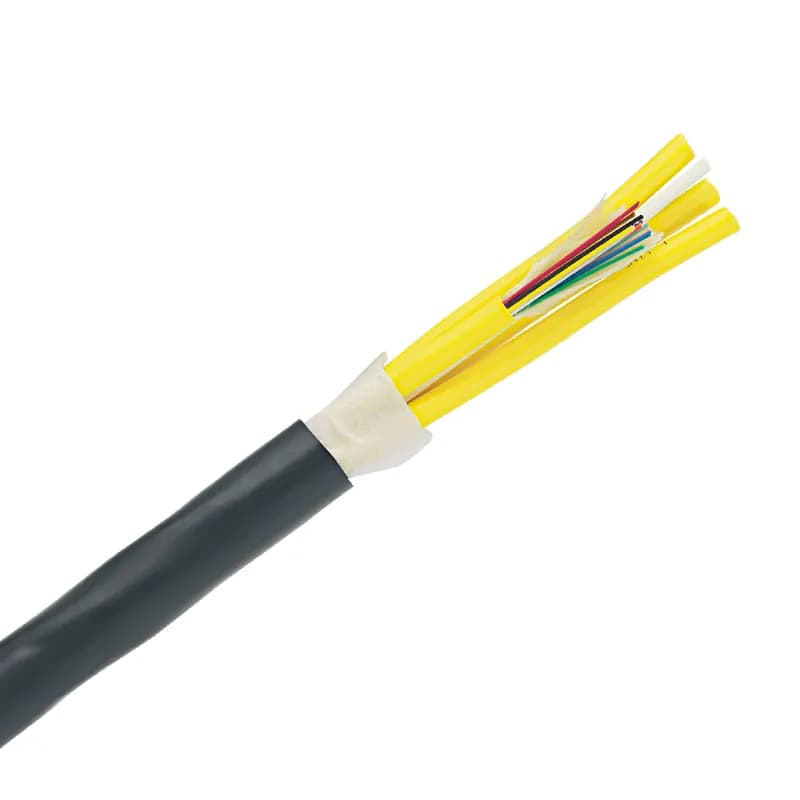

FSLP606
The 6 fiber indoor/outdoor armored tight buffered cable is OM1, Plenum (OFCP) rated and features features 900 buffered fibers.
FSCP606Y
The 6 fiber indoor outdoor central tube cable is OM1, Plenum (OFNP) rated and features 250 m fibers.

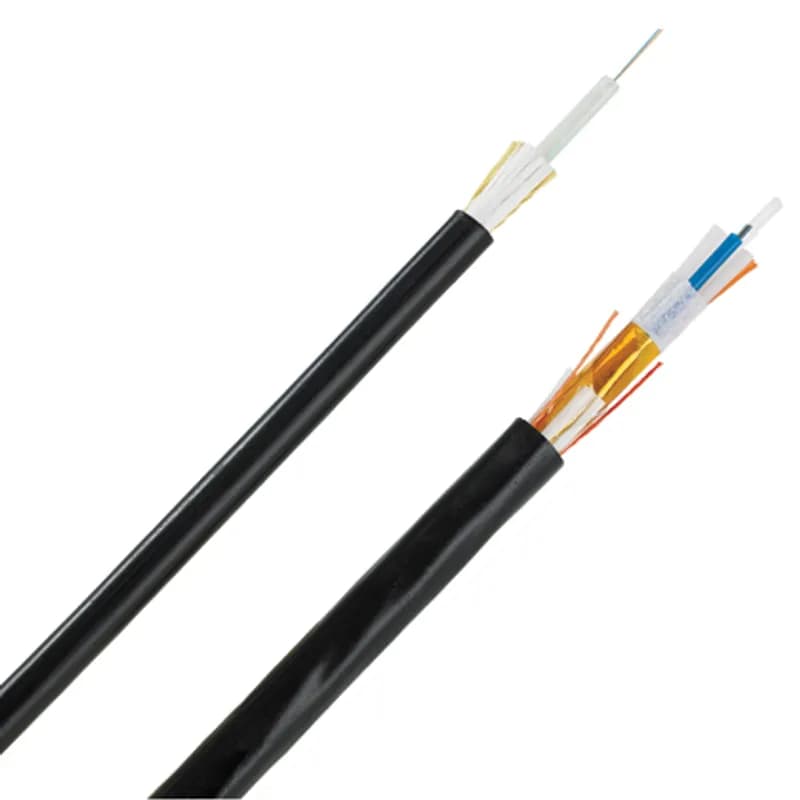

FSCP612Y
The 12 fiber indoor outdoor central tube cable is OM1, Plenum (OFNP) rated and features 250 m fibers.
FSMP624Y
The 24 fiber indoor/outdoor armored stranded cable is OM1, Plenum (OFCP) rated and features 250 m fibers.

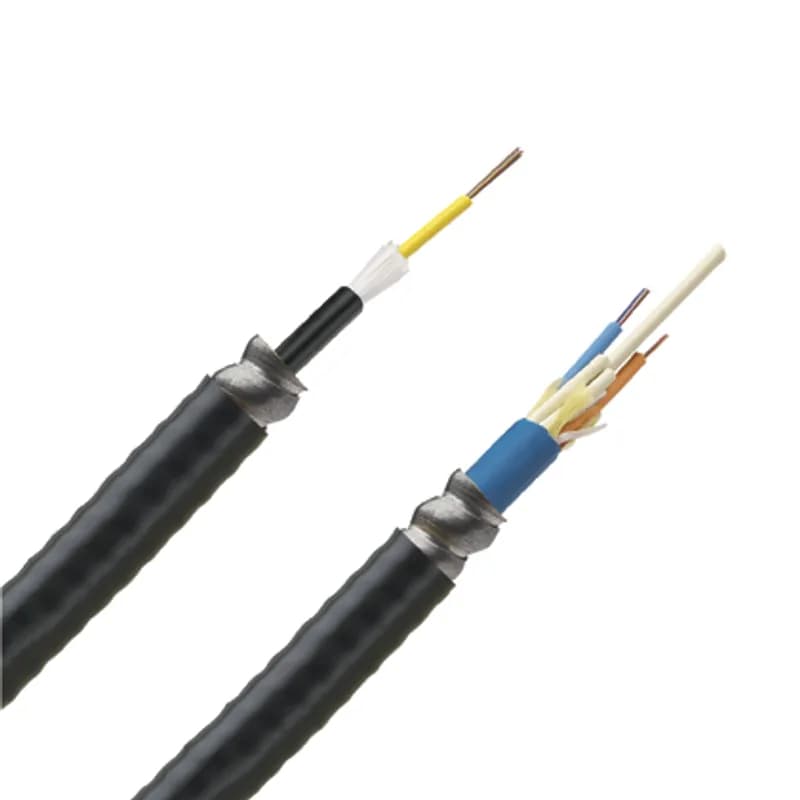

FSGP612Y
The 12 fiber indoor/outdoor armored central tube cable is OM1, Plenum (OFCP) rated and features 250 m fibers.

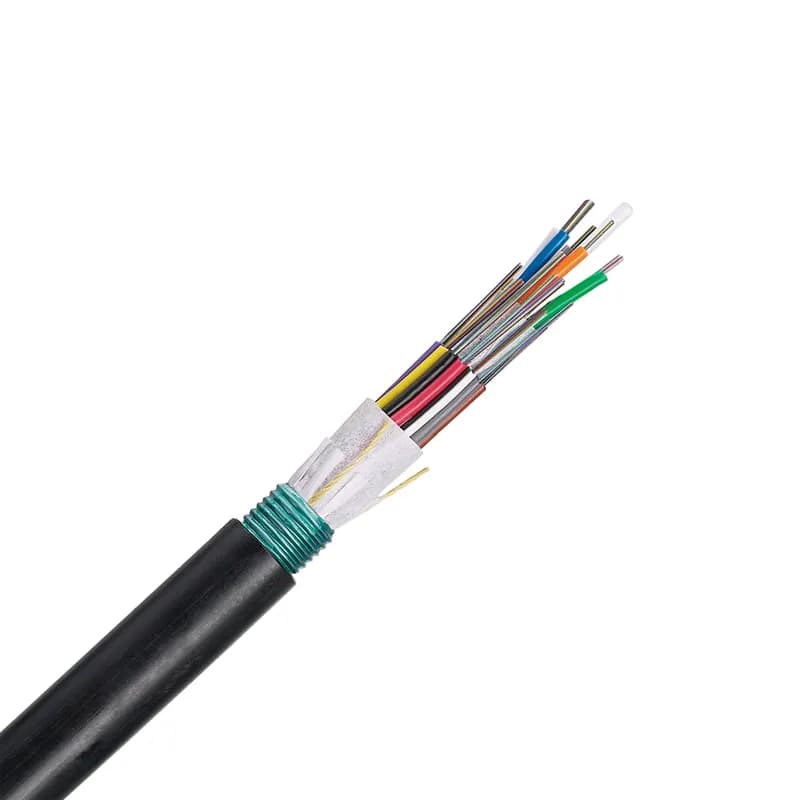

FSWN606
The 6 fiber outside plant armored (single armor, single jacket) cable is OM1, non-rated and features 250 m fibers.
FSKR606
The 6 fiber indoor/outdoor tight buffered cable is OM1, Riser (OFNR) rated and features 900 buffered fibers.

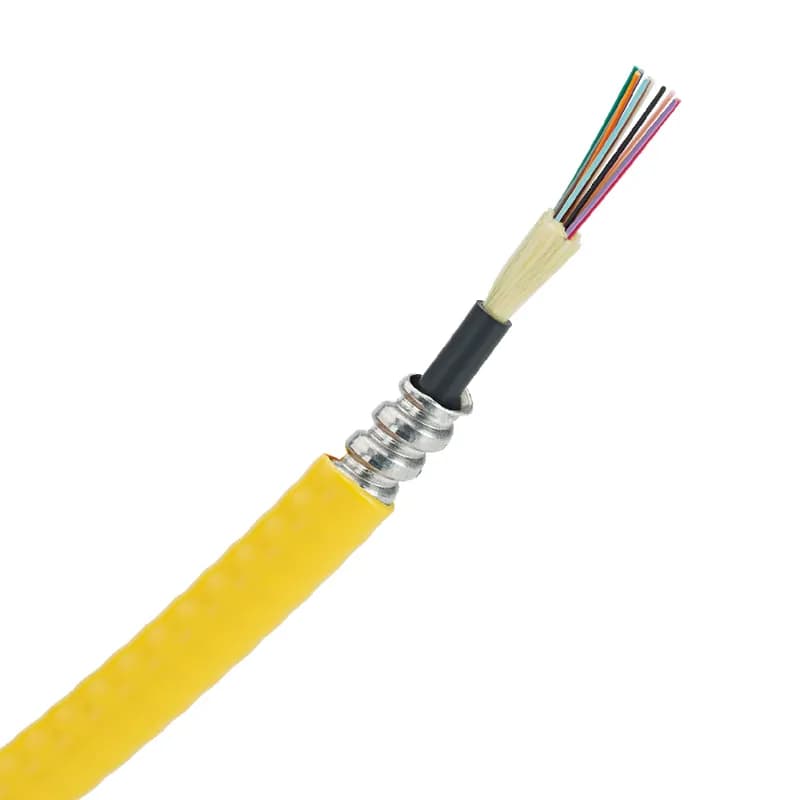

FSLR606
The 6 fiber indoor/outdoor armored tight buffered cable is OM1, Riser (OFCR) rated and features features 900 buffered fibers.
FSLR612
The 12 fiber indoor/outdoor armored tight buffered cable is OM1, Riser (OFCR) rated and features features 900 buffered fibers.How to Install Fiber Optic Indoor/Outdoor Stranded Loose Tube Cable
This guide provides step-by-step instructions for the installation and preparation of fiber optic cables, including sheath removal, core preparation, and fiber preparation.
Estimated time: 1h
Tools needed:
Eye and Hand Protection, Approved Cable Cutters, Needle Nose Pliers, Sheath Knife, Buffer Tube Removal Tool, Primary Coating Stripping Tool, Tape Measure, Scissors/Snips
Supplies needed:
Clean Cotton Cloths, Buffer Tube Slitter, Water Absorbent Tape, Flame Barrier Tape, Binder Strings
- Remove the cable sheath
Mark a length of six feet (2 meters) from the end of the cable on the outer sheath. Use a sheath knife to 'ring' the circumference of the sheath at this mark and gently flex the cable to separate and remove the sheath.
- Prepare the cable core
Once the outer sheath is removed, cut the ripcord and unwrap the binder strings from around the buffer tubes. Separate the color-coded buffer tubes from the central strength member and cut the central strength member to the proper length for the closure being used.
- Prepare the buffer tubes
Check the blade setting on the buffer tube removal tool. Measure and mark the length of the tube to be removed, then ring the tube in 1-2 ft sections and remove them until the desired amount of fiber is accessible. Wipe excess thixotropic gel from the exposed fiber with a clean cotton cloth.
- Access the optical fibers
Using scissors, cut the fibers to be terminated at the appropriate length. Use a primary coating stripping tool to remove the 250 μm diameter coating from the fiber, followed by a wipe with an alcohol-dampened cloth to remove any residual debris.
