Contact for Pricing
Minimum Qty: 20
Multiplier: 1
*Contact for lower quantities*

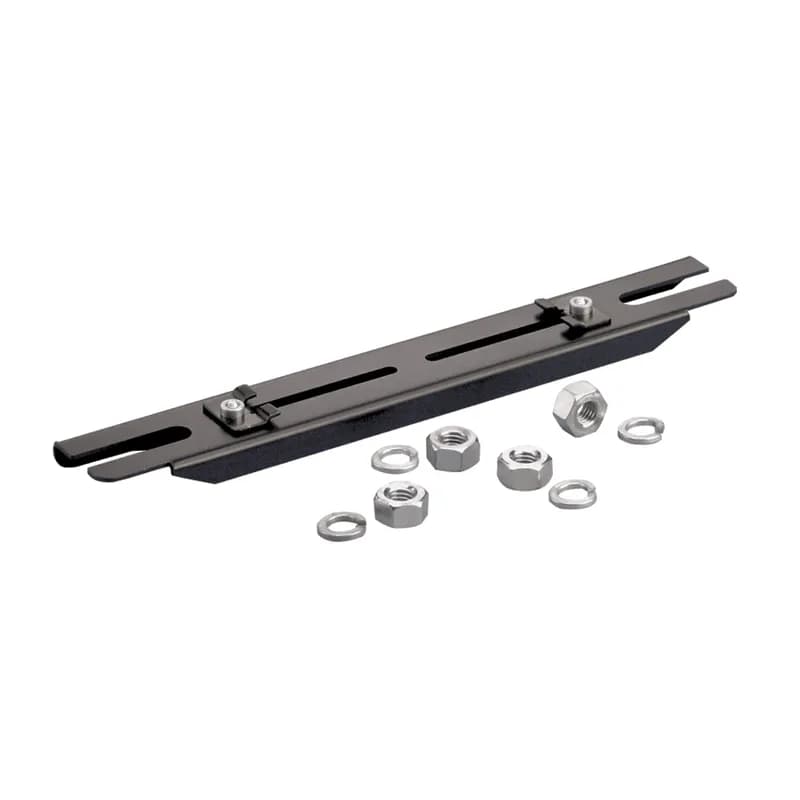

Overview
- Supports 6x4 and 4x4 systems by spanning two 1/2in threaded rod drops
- Installable from above or below for flexible mounting options
- Secured to each threaded rod with two nuts for stability
- Pre-assembled slide clamp enables fast assembly to channel systems
- Requires 7/16in nut driver for slide clamp installation
Specifications
Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
Cable Specification | 4 x 4 and 6 x 4 FiberRunner Brackets |
Height | 0.62 in |
Height | 15.748 mm |
Length | 13.78 in |
Length | 350.012 mm |
Material | Steel |
Mounting Type | Threaded Rod Bracket |
Mounting Type | Threaded Rod |
Mounting Type | Threaded rod with nuts |
Series | FR |
Series | FR6TB12 |
Series | FR6TB |
Size | 6x4 and 4x4 systems |
Size | For 1/2in threaded rod |
Standard | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
Type | Trapeze Bracket |
Width | 1.94 in |
Width | 49.276 mm |
Package Dimensions (L x W x H) | 14 IN x 14 IN x 2 IN |
Package Weight (Imperial) | 1.28 lbs |
Similar Products
Frequently Asked Questions
What is the minimum bend radius for cables?
The system maintains a minimum bend radius of 2 inches to protect fiber optic cabling.
What is the installation process like?
Installation requires no tools, and QuikLock™ Couplers and Brackets can be connected in less than five seconds.
What materials are used in the FiberRunner system?
The channel is made of rigid PVC, while the fittings are made of ABS.
How are the channel and fittings assembled?
Channel and fittings are assembled using pre-assembled QuikLock™ Couplers.
Is the FiberRunner system UL listed?
Yes, it is UL Listed to 2024A Optical Fiber Cable Routing Assemblies.
How does the system protect cables?
The robust system protects cables from physical damage and maintains a minimum bend radius.
What colors are available for the FiberRunner system?
The available system colors are yellow and black.
What applications is the FiberRunner system suited for?
It is suited for data center applications and Telco Central Offices for routing fiber optic jumper cables.
What is the flammability rating of the materials?
The materials have a flammability rating of 94V-0.
What types of fittings are available?
A full range of directional and spillout fittings is available for the system.
