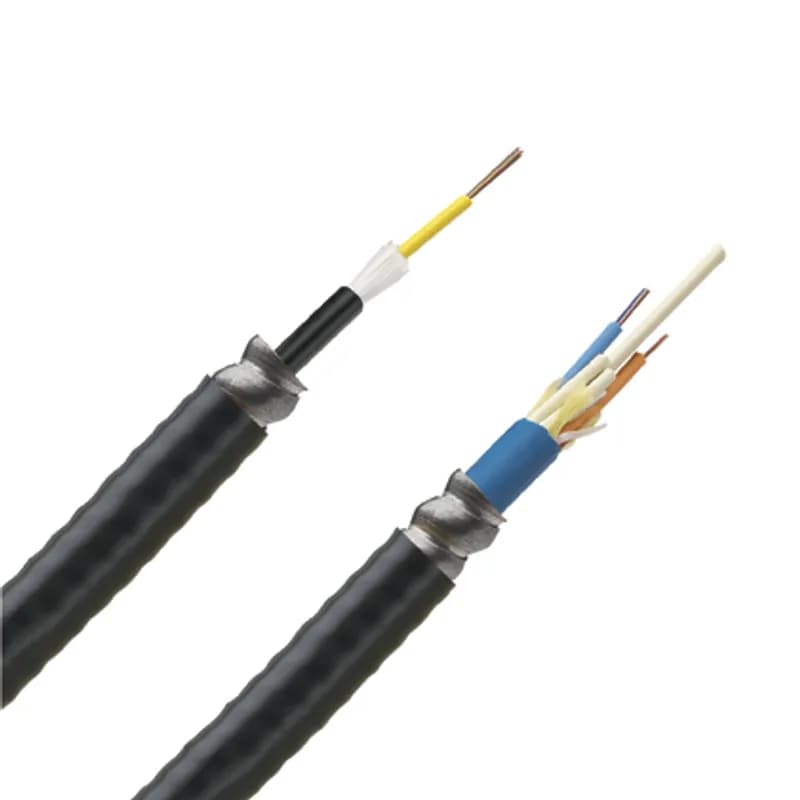

FOLPX06

The cable can operate at temperatures ranging from -40ºF to 158ºF (-40ºC to 70ºC).

The tensile strength for installation is 100 lbs for 6- to 12-fiber cables, 300 lbs for 24-fiber cables, and 600 lbs for 48- to 144-fiber cables.

The cable is available in fiber counts of 6, 12, 24, 48, 72, 96, and 144 fibers.

Yes, the cable is RoHS compliant.

The installation temperature range is 14ºF to 140ºF (-10ºC to 60ºC) for Riser and 32ºF to 140ºF (0ºC to 60ºC) for Plenum.

The maximum attenuation for multimode fibers is 3.0dB/km at 850nm and 1.0dB/km at 1300nm.

The cable weight varies by fiber count, ranging from 132 lbs/kft (196 kg/km) for 6 fibers to 676 lbs/kft (1006 kg/km) for 144 fibers.

The cable features interlocking aluminum armor for crush resistance.

The cable meets TIA/EIA-568, ANSI/ICEA S-83-596, and other relevant standards.

The long-term bend radius for 24 fibers is 6.5 inches (16.6 cm).
