Contact for Pricing
Minimum Qty: 1640
Multiplier: 1
*Contact for lower quantities*
Overview
- 12 Fiber OM3 Multimode
- Plenum Rated (OFCP)
- Indoor/Outdoor Armored Central Tube Design
- 250µm Fibers
- Dry Water Blocking Technology
Specifications
Bend Radius | NA in |
Color | Black |
Fiber Size | OM3 10 GbE 50/125 m |
Fiber Size | OM3 10 GbE 50/125µm |
Fiber Type | OM3 |
Flammability Rating* | Plenum (OFCP) |
Number of Fibers | 12 |
Type | Bulk Fiber Optic Indoor/Outdoor Cable |
Package Weight (Imperial) | 0.02 lbs |
FOLPX06
The 6 fiber indoor/outdoor armored armored tight buffered cable is OM3, Plenum (OFCP) rated and features 900um buffered fibers.
FOKPX12
The 12 fiber indoor/outdoor tight buffered cable is OM3, Plenum (OFNP) rated and features 900 m buffered fibers.
FOLPX12
The 12 fiber indoor/outdoor armored armored tight buffered cable is OM3, Plenum (OFCP) rated and features 900um buffered fibers.
FOLPX24
The 24 fiber indoor/outdoor armored armored tight buffered cable is OM3, Plenum (OFCP) rated and features 900um buffered fibers.
FOCPX12Y
The 12 fiber indoor/outdoor central tube cable is OM3, Plenum (OFNP) rated and features 250 m fibers.
FOCPX06Y
The 6 fiber indoor/outdoor central tube cable is OM3, Plenum (OFNP) rated and features 250 m fibers.
FONPX48Y
The 48 fiber indoor/outdoor stranded tube cable is OM3, Plenum (OFNP) rated and features 250 m fiber.

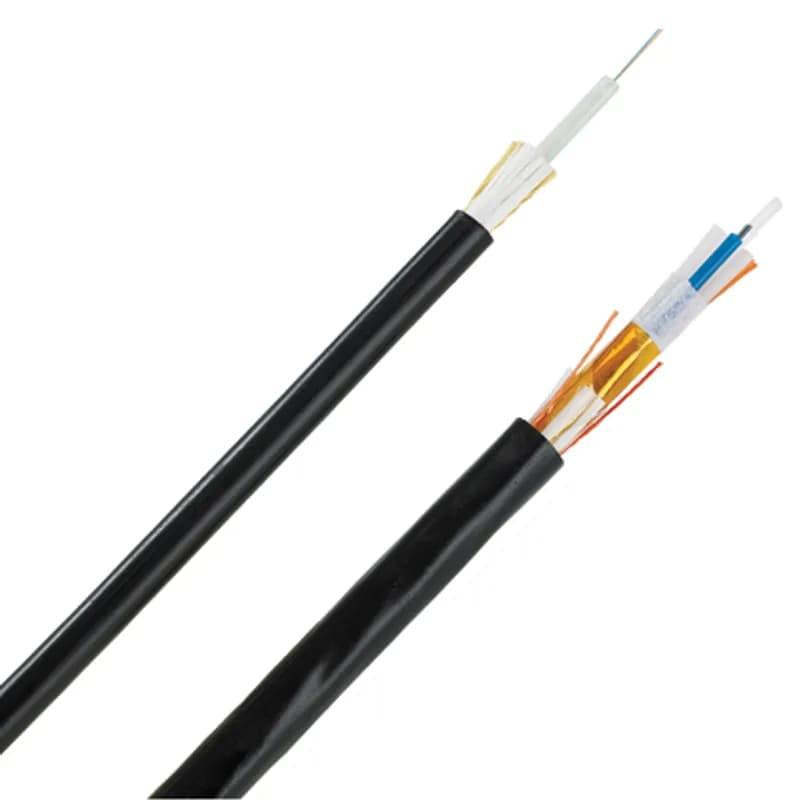

FONPX24Y
The 24 fiber indoor/outdoor stranded tube cable is OM3, Plenum (OFNP) rated and features 250 m fiber.

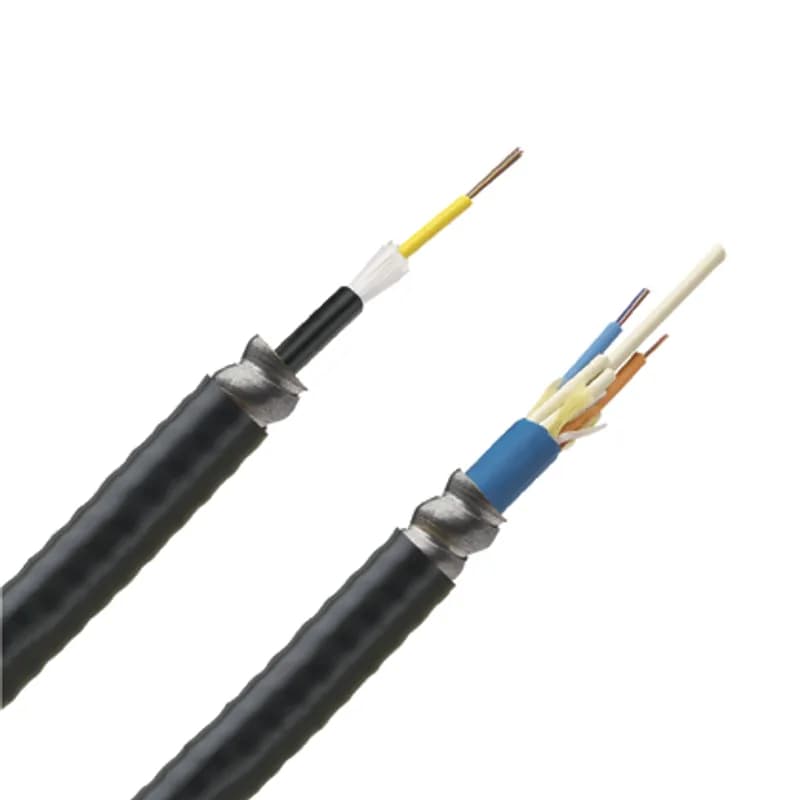

FOGPX06Y
The 6 fiber indoor/outdoor armored central tube cable is OM3, Plenum (OFCP) rated and features 250 m fibers.

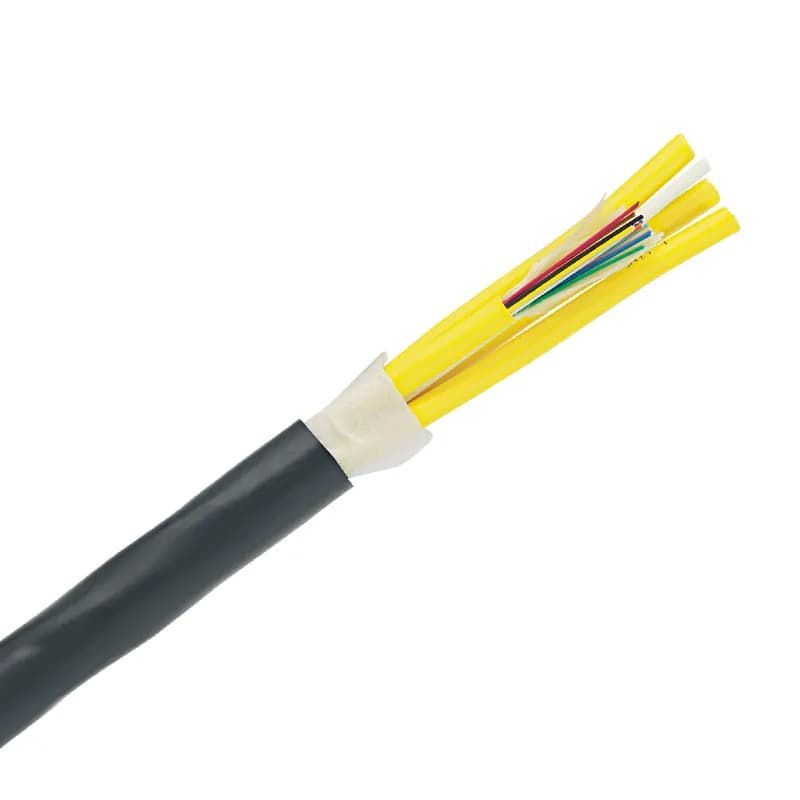

FOKPX24
The 24 fiber indoor/outdoor tight buffered cable is OM3, Plenum (OFNP) rated and features 900 m buffered fibers.
How to Prepare Fiber Optic Indoor/Outdoor Stranded Loose Tube Cable
This guide provides step-by-step instructions for the preparation of fiber optic cables, including sheath removal, core preparation, and fiber preparation.
Estimated time: 1h
Tools needed:
Eye and Hand Protection, Approved Cable Cutters, Needle Nose Pliers, Sheath Knife, Buffer Tube Removal Tool, Primary Coating Stripping Tool, Tape Measure, Scissors/Snips
Supplies needed:
Clean Cotton Cloths, Water Absorbent Tape, Binder Strings, Flame Barrier Tape
- Remove the cable sheath
Mark a length of six feet (2 meters) from the end of the cable on the outer sheath. Use a sheath knife to 'ring' the circumference of the sheath at this mark and gently flex the cable to separate the sheath. Discard the removed sheath section.
- Prepare the cable core
Once the outer sheath is removed, cut the ripcord and unwrap the outer strength members. Remove any water absorbent tape and binder strings from around the buffer tubes. Separate the color-coded buffer tubes from the central strength member.
- Prepare the buffer tubes
Check the blade setting on the buffer tube removal tool by 'ringing' a small section near the end of the tube. Measure the length of the tube to be removed, mark it, and ring the tube in 1-2 ft sections. Remove the desired amount of fiber and gently wipe any excess thixotropic gel from the exposed fiber with a clean cotton cloth.
- Strip the optical fibers
Using scissors, cut the fibers to be terminated at the appropriate length. Use a primary coating stripping tool to remove the 250 μm diameter coating from the fiber, followed by a single wipe with an alcohol-dampened cloth to remove any residual debris.
