Overview
- Preloaded with 24 OM4 multimode discrete pigtails (250µm)
- Factory-optimized insertion loss (IL) for superior signal integrity
- Removable bevel design for flexible installation and maintenance
- 24-fiber capacity with integrated cable management
- Compatible with Panduit fiber management enclosures
Specifications
Package Dimensions (L x W x H) | 9.2 IN x 4.5 IN x 2.6 IN |
Package Dimensions (L x W x H) | 23.368 cm x 11.43 cm x 6.604 cm |
Package Weight (Imperial) | 0.3500 L |
Package Weight (Metric) | 0.1588 kg |
FWME1BL-DIN
The FWME1BL-DIN Rail Mount Adapter mounts to a standard 35mm DIN rail. It converts the Panduit part number FWME1BL Opticom 1 opening fiber wall mount splice enclosure (enclosure not included) to be DIN rail mountable. Included in one FWME1BL-DIN package is the DIN rail mount adapter and three M4 flat head screws. It is made of steel and is black in color.
FCS29N-24-LAP
This Opticom LC/APC Splice Cassette is Preloaded with 24 OS2 Discrete Pigtails (250Um) and Splice Kit, and has Standard Il. Cassette has removable bevel
FSC6
This fiber splice holder accommodates and protects up to 24 fusion splices. This part comes with one rubber splice holder with an adhesive backing. This part is intended to be used with any Panduit Opticom Enclosure.
FQWO-12-10U
The QuickNet SFQ Fiber Cassette is OM5 MPO to LC and supports 12 fibers total. It is optimized IL and uses Universal polarity. The cassette has a black cover with a black MPO connector and 6 lime LC adapters with dust plugs.
FC2WO-24-10AS
The Opticom Fiber Cassette is OM5, and features 2 MPO to 12 duplex LC and supports 24 fibers total. It is optimized IL and uses Standard Method A polarity. The cassette has a black cover with a black MPO connector and 12 lime LC adapters.
FCS29N-12-LAP
This Opticom LC/APC Splice Cassette is Preloaded with 12 OS2 Discrete Pigtails (250Um) and Splice Kit, and has Standard Il. Opticom cassettes are front-loading.
FHSWO-12-10P
The HD Flex Splice Cassette is OM5 Discrete Pigtails to LC and supports 12 fibers total. It is optimized IL and uses Universal polarity. The cassette has a clear cover with 12 discrete pigtails and 6 lime duplex LC adapters with integral shutters to prevent contamination.
FHCWO-24-10AF
The HD Flex Cassette is OM5 2 MPO to LC and supports 24 fibers total. It is optimized IL and uses standard Method A polarity. The cassette has a black cover with two black MPO connectors and 12 lime duplex LC adapters with integral shutters to prevent contamination.
FHS6N-08-10N
The HD Flex FAP Cassette features 4-ports and has duplex LC multimode adapters. It is ivory with zirconia sleeves with integral shutters to prevent contamination.
FHSXN-08-10N

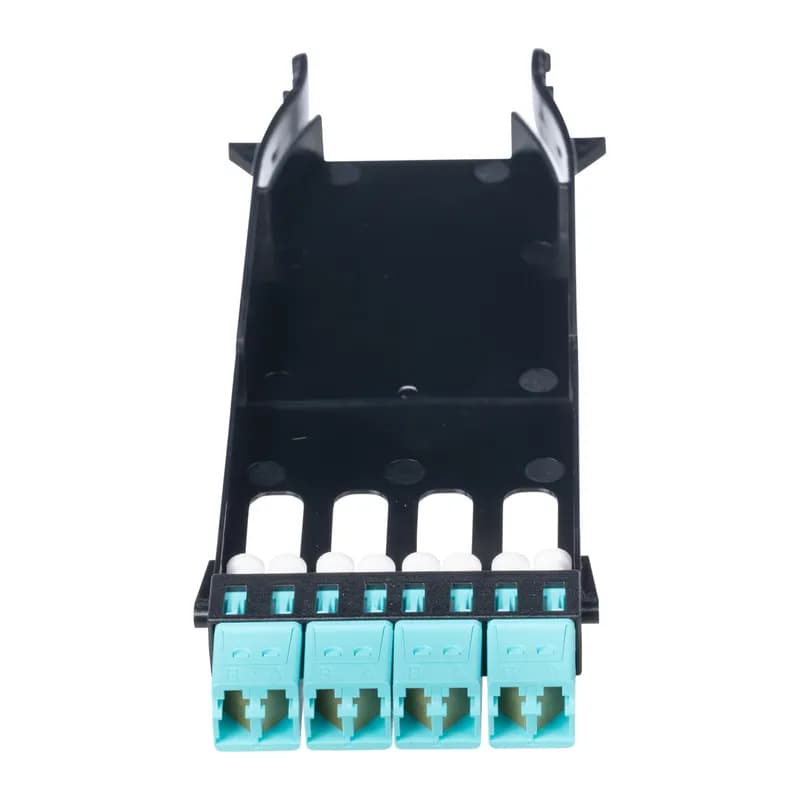

The HD Flex FAP Cassette features 4-ports and has duplex LC multimode adapters. It is aqua with zirconia sleeves with integral shutters to prevent contamination.
FHC3WO-08-10A
The HD Flex 4-to-1 Breakout Cassette is OM5 MPO to LC and supports 8 fibers total. It is optimized low IL and uses Method A polarity. The 6-port cassette has a black cover with a black MPO connector and 4 lime duplex LC adapters with integral shutters to prevent contamination.
FHS9N-08-10N
The HD Flex FAP Cassette features 4-ports and has duplex LC singlemode adapters. It is blue with zirconia sleeves with integral shutters to prevent contamination.Frequently Asked Questions
What connector types are available for these cassettes?
The splice cassettes offer LC, LC/APC, SC, SC/APC, and MPO adapters for both singlemode and multimode applications.
What pigtail types and fiber counts are available?
Splice cassettes are available with 250μm discrete or flat ribbon pigtails, supporting up to 48 fibers.
What accessories are included with the splice cassettes?
The cassettes include splice protectors, splice holders, and cable ties for securing the incoming cable to the cassette body.
What enclosures are compatible with these splice cassettes?
The Opticom splice cassettes are compatible with all Opticom Enclosures (FRME*, FCE*) and patch panels.
What fiber types do these cassettes support?
The cassettes support singlemode OS1/2 9/125μm and multimode OM4 50/125μm fiber types.
What is the insertion loss for OS2 and OM4 optimized?
OS2 Standard insertion loss is 0.35dB plus splice loss. OM4 Optimized is 0.15dB plus splice loss, and MPO:OM4 Optimized is 0.35dB plus splice loss.
What is the return loss performance for these cassettes?
The return loss is greater than 26dB for multimode fibers and greater than 55dB for singlemode fibers.
What is the connector durability rating?
Connectors meet TIA/EIA-568C.3 A.4.9 and have a durability of 500 mating cycles.
What are the operating and storage temperature ranges?
The operating temperature range is 0°C to 70°C (32°F to 158°F). Storage and shipping range is -40°C to 75°C (-40°F to 167°F).
Which industry standards do these cassettes meet?
The cassettes meet or exceed TIA/EIA-568-C.3 performance requirements and support IEEE 802.3ae and ANSI T11.2 specifications. They are also ROHS 2002/95/EC compliant.
How to Install the FCS2ZO-24-LSP Opticom LC Splice Cassette
This guide provides step-by-step instructions for installing and splicing incoming fiber cables into the FCS2ZO-24-LSP Opticom LC Splice Cassette. Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. Maintain dust caps on unmated connectors.
Estimated time: 2h
Tools needed:
#2 Phillips screwdriver, Scissors, Fiber optic cable strippers, Fiber cleaver, Fusion splicer, Isopropyl alcohol
Supplies needed:
Pan-Ty Cable Ties, 1/4” Phillips Screws, Discreet Splice Sleeves, Dust caps, Incoming fiber optic cable
- Prepare the Cassette for Splicing
Push down the Cover Removal Latch in the rear of the cassette and slide the Cover back until the 4 tabs clear, then remove the cover. Squeeze the two tabs on either side of the Splice Tray inward and/or pull the Base wall outward to release the Splice Tray from the Base. Carefully remove the fiber ends from any fiber pigtails coiled in the Splice Tray and set them aside.
- Splice Incoming Fibers to Pigtails on the Cassette Base
Strip the incoming fiber cable outer jacket 20 inches (0.5 meters). Secure the incoming fiber cable with two provided Pan-Ty Cable Ties and cut off any excess. Optionally, secure the incoming fiber cable's Aramid yarn to the Base using the provided screw(s). Expose all fiber ends for splicing. Slide a splice sleeve onto either the pigtail or field fiber. Strip off approximately 1.375 inches (35mm) of coating from each fiber and clean with isopropyl alcohol. Cleave the fiber so that 0.400 inches (10mm) of bare fiber extends past the fiber coating. Do not clean the bare fiber after it has been cleaved, and do not let it come into contact with any surfaces. Splice the first 12 discrete fibers and heat the splice sleeve(s) according to your splicer manufacturer's best practices. Route the spliced fibers into the cassette, ensuring they are located under the Base fiber retention tabs, and secure the splice sleeves into the Splice Sleeve Holders in the Base.
- Splice Remaining Fibers on the Splice Tray and Reassemble
Replace the Splice Tray into the Base, ensuring no fibers previously spliced onto the base are protruding above the Base Fiber Retention Tabs. Push until an audible 'CLICK' is heard. Repeat the splicing steps from Step 2 for the remaining 12 discrete fibers on the Splice Tray. After all splicing is complete, re-install the Cassette Cover by sliding it forward until the Cover Removal Latch 'clicks' into place.
- Install the Cassette into a Panel or Enclosure
Install the completed cassette directly to the front of panels or enclosures by snapping the two grommets into the designated holes. Alternatively, for rear installation, use your finger to push the Bezel latch inward to release the Bezel from the cassette. After installing the cassette through the rear of the Panel or Enclosure, re-attach the Bezel and secure the grommets to the front.
