Contact for Pricing
Overview

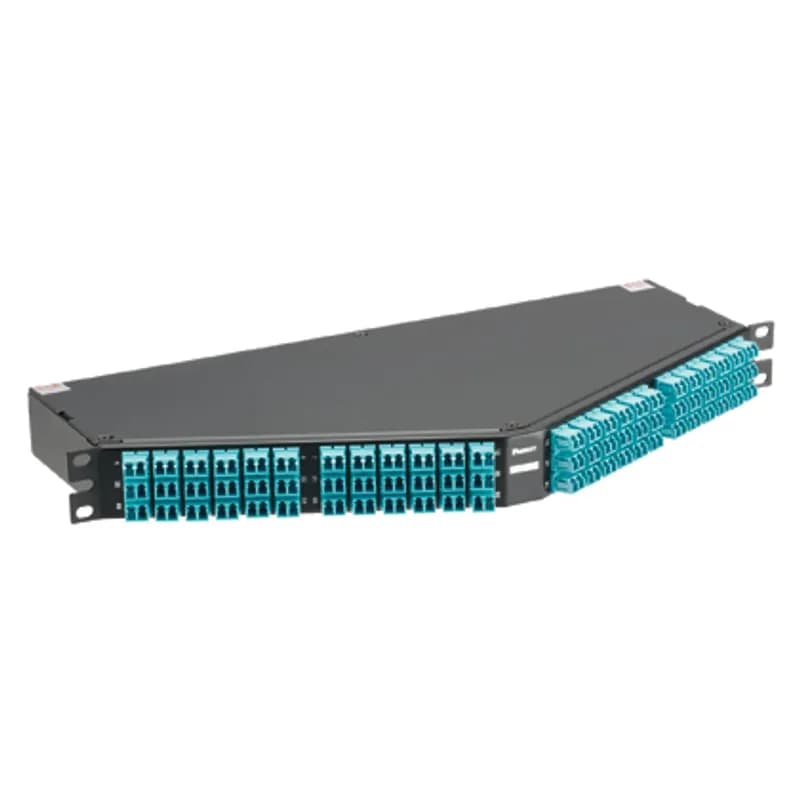

- 12-Fiber High-Density Configuration
- OM4 Fiber Grade for High Bandwidth
- Angled Fiber Optic Connection
- Standard Method A Compatibility
- Designed for Data Centers and Enterprise Networks
Specifications
Application | OM4 |
Connection Type | Angled Fiber Optic |
Connector 1 Type* | LC Duplex |
Connector 2 Type* | MPO-12 Male |
Fiber Compatibility* | OM4 50/125 m |
Fiber Count* | 96 |
Length | NA In. |
Material | Plastic/Metal |
Mounting Type | Cassette |
Series | OM4 |
Size | 12-fiber |
Type | Fiber Cassette |
Package Dimensions (L x W x H) | 10.2 IN x 2.8 IN x 23.7 IN |
Package Weight (Imperial) | 2.22 lbs |
Similar Products
F1ASZN-9612-10F
Special Features: NULL
Material: OM4 Multimode Fiber
Connection Type: Angled Cassette (Method A - Pair Flipped)
F1ASZO-9612-10S
Special Features: NULL
Fiber Compatibility*: Optimized OM4 50/125 m
Material: OM4 Fiber Optic
You May Also Be Interested In
Frequently Asked Questions
What fiber types are supported by F1RSZO-9612-10F?
The F1RSZO-9612-10F supports OM3 and OM4 multimode fiber types.
How many fibers can the F1RSZO-9612-10F accommodate?
The F1RSZO-9612-10F can accommodate up to 144 fibers in a single unit.
Is the F1RSZO-9612-10F compatible with Cisco switches?
Yes, the F1RSZO-9612-10F is compatible with various Cisco Nexus switches and modules.
What standards does the F1RSZO-9612-10F meet?
The F1RSZO-9612-10F meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and other relevant standards.
What is the maximum insertion loss for this product?
The maximum insertion loss for the F1RSZO-9612-10F is 0.50 dB for laser-optimized OM3 and OM4 fibers.
What is the mounting requirement for this cassette?
The F1RSZO-9612-10F is designed to mount into 19-inch wide telecommunications racks.
What type of connectors does the F1RSZO-9612-10F use?
The F1RSZO-9612-10F uses LC duplex adapters for front connectivity and MTP adapters for rear connectivity.
How is the product labeled for port mapping?
The F1RSZO-9612-10F features port mapping for standard/generic labeling, facilitating easy identification.
What is the return loss specification?
The return loss for the F1RSZO-9612-10F is ≥26 dB for multimode fibers.
What is the benefit of the angled profile design?
The angled profile design eases patch cord flow and reduces the need for horizontal cable managers.
