Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Efficient termination of modular plugs
- Designed for industrial and commercial settings
- Supports network installations, data centers, and telecommunications infrastructure
- Durable and long-lasting performance
- Accommodates various modular plug types
Specifications
Application | NA |
Color | Violet |
Material | Glass-Filled Nylon |
Standard | RoHS Directive is not applicable |
Type | Field Termination Plug Tool |
Width | 1.32 In. |
Package Dimensions (L x W x H) | 4.45 IN x 1.7 IN x 1.2 IN |
Package Weight (Imperial) | 0.05 lbs |
HLM-15R7

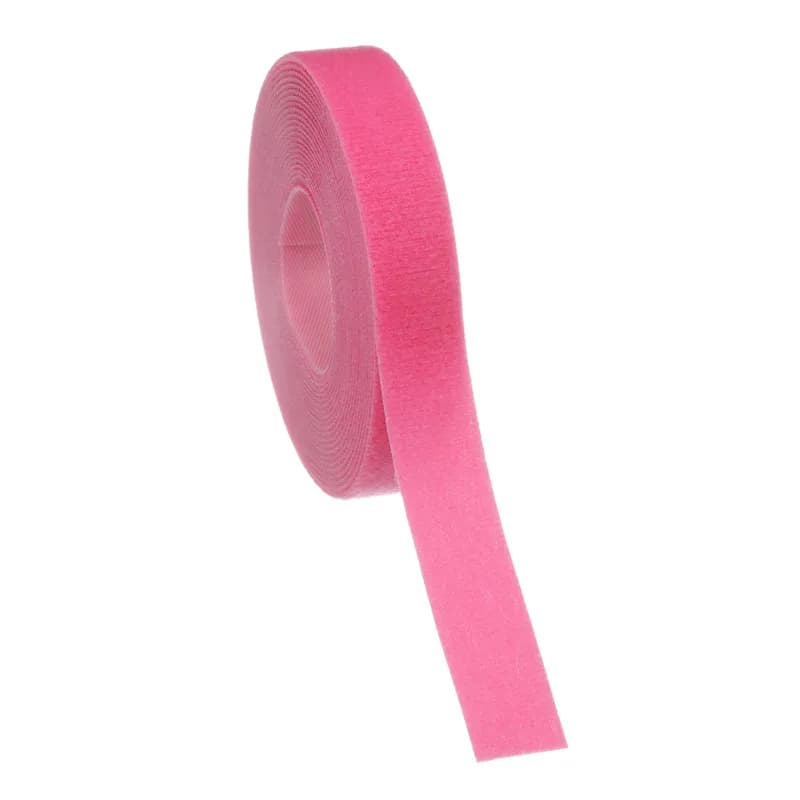

Tak-Ty hook & loop strip roll cable tie, 15' (4.6m) length, .33 (8.4mm) width, nylon loop, nylon hook, Erika Violet.Frequently Asked Questions
What tools are recommended for terminating the TX6A plug?
The recommended termination tools are EGPT or EGJT-1. A CJAST wire stripping tool and CWST wire snipping tool are also listed.
Can the TX6A plug be re-terminated to a cable?
Yes, the TX6A plug can be re-terminated up to 20 times to a cable without needing additional parts. This offers convenience and cost-savings.
What performance does the TX6A plug offer?
The TX6A plug provides Category 6A/Class EA performance, exceeding ANSI/TIA 568.2-D and ISO 11801 requirements. It also meets TIA MPTL requirements.
Does the TX6A plug support Power over Ethernet (PoE)?
Yes, it supports IEEE 802.3af/at (PoE/PoE+) and 802.3bt type 3 and 4 (PoE++) applications. It also supports Power over HDBaseT up to 100 watts.
Is the TX6A plug compatible with other Category cables?
Yes, the TX6A plug is compatible with Category 6A, Category 6, and Category 5e shielded systems. This allows for a single plug across common shielded cabling systems.
What is the mating cycle rating for the TX6A plug?
The TX6A Shielded Field Term RJ45 Plug is rated for 2500 mating cycles.
Is the TX6A plug UL rated for specific uses?
Yes, it is UL 1863 rated for use as a communications circuit accessory. It is also UL 2043 rated, making it suitable for use in air-handling spaces.
What is the operating temperature range for the plug?
The TX6A plug has an operating temperature range of -40°F to +185°F (-40°C to +85°C).
What cable types are compatible with the TX6A plug?
It is compatible with 4-pair, 22-26 AWG solid or stranded shielded twisted pair cable. Conductor insulation diameters should be 0.04 in. - 0.06 in., and overall cable O.D. 0.23 in. - 0.35 in.
Can the TX6A plug be re-terminated to a cable?
Yes, the TX6A plug can be re-terminated up to 20 times to a cable without needing additional parts. This offers convenience and cost-savings.
How to Install the 45° Up/Down UTP Field Term Plug
This guide provides step-by-step instructions for installing the 45° Up/Down UTP Field Term Plug, ensuring proper wiring and orientation for optimal performance.
Estimated time: 30m
Tools needed:
Wire strippers, Screwdriver
Supplies needed:
45° Up/Down UTP Field Term Plug, Cable (Cat 6A/6/5E), Wire caps
- Prepare the cable
Cut the cable to the desired length and strip approximately 1.5 inches of insulation from both ends to expose the conductors.
- Insert conductors into the plug
Bend the wires slightly to ease insertion and insert them into the corresponding positions in the plug housing, ensuring the Brown/White and Blue/White pairs are connected as specified.
- Secure the wire cap
Ensure the cable is fully inserted into the wire cap and secure it by pressing down firmly, maintaining the orientation of the cap in relation to the plug.
- Verify connections
Use a multimeter to check continuity and ensure all connections are secure and correctly wired according to T568B or T568A standards.
- Test the installation
Connect the plug to the network and verify functionality to ensure proper data transmission.
Frequently Asked Questions about Panduit
What environmental ratings do Panduit products have?
Panduit products feature comprehensive environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13; CSA Type 1, 2, 3, 4, 4X, 12, and 13; and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They meet IEC 60529 IP66 rating, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments, with operating temperatures ranging from -40°C to 130°C.
What certifications and standards do Panduit products comply with?
Panduit products are certified to multiple critical industry standards, including UL (Underwriters Laboratories) in the USA and Canada, CSA (Canadian Standard Association), EN IEC 61386, LVD 2006/G5/EC, and ARRA standards. Our products meet rigorous certifications for electrical safety, environmental compliance (WEEE and RoHS), and are designed to perform in extreme temperatures ranging from -55°C to 105°C, making them suitable for demanding industrial environments.
What industries and applications are Panduit products used for?
Panduit products are engineered for critical applications across multiple industries, including commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety-critical environments. Their solutions span electrical infrastructure, wire management, cable ties, power connectors, and safety systems designed to withstand extreme conditions like high vibration, temperature variations, UV exposure, and corrosive agents. Key industries include solar and wind energy, aerospace, heavy trucking, military, commercial transportation, and industrial manufacturing.
What are the main product lines offered by Panduit?
Panduit offers a comprehensive range of electrical infrastructure products including power connectors, cable ties, grounding connectors, identification products, safety solutions, terminals, cable cleats, wiring duct, and cable tie accessories. These products are engineered for industrial environments across multiple sectors like commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications.
What are the key features of Panduit products?
Panduit products are engineered for robust performance in heavy-duty industrial environments, featuring a comprehensive range of solutions including cable ties, power connectors, terminals, and identification products. Key features include proven quality performance, subject matter expertise, and customer-driven innovation across multiple industrial sectors such as commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications. The product line is designed to maximize productivity, reliability, and safety while meeting stringent industry standards.
What is Panduit's warranty policy?
Panduit provides a comprehensive Limited Product Warranty that can be fully reviewed on their official website at www.panduit.com/warranty. All Panduit products are subject to the terms, conditions, and limitations of this current warranty. Customers are advised to review the specific warranty details for their particular product, as Panduit requires buyers to determine product suitability for their intended use and assumes all associated risks.
What technical support does Panduit offer?
Panduit offers comprehensive technical support through their dedicated customer service team, accessible via phone at 1-800-777-3300. They provide expert assistance for their full range of industrial infrastructure products, including cable ties, power connectors, terminals, and identification solutions. Customers can also access additional technical resources and product information through their website at www.panduit.com.
What accessories are available for Panduit products?
Panduit offers a wide range of accessories across multiple product lines, including cable ties, cable tie accessories, cable tie tools, identification products, cable cleats, grounding connectors, and VeriSafe accessories like the VeriSafe Network Module and Insulation Piercing Connectors. For a comprehensive view of all available accessories, customers are recommended to visit www.panduit.com for the full product catalog.
How are Panduit products typically installed?
Panduit products are engineered for comprehensive installation across industrial environments, utilizing specialized tools and techniques for precise mounting. Installation methods vary by product line - from cable ties and power connectors to terminals and identification solutions - but all are designed for robust performance in heavy-duty settings. Technicians typically use Panduit's dedicated installation tools and follow manufacturer guidelines available at www.panduit.com to ensure proper fitting and maximum infrastructure reliability.
