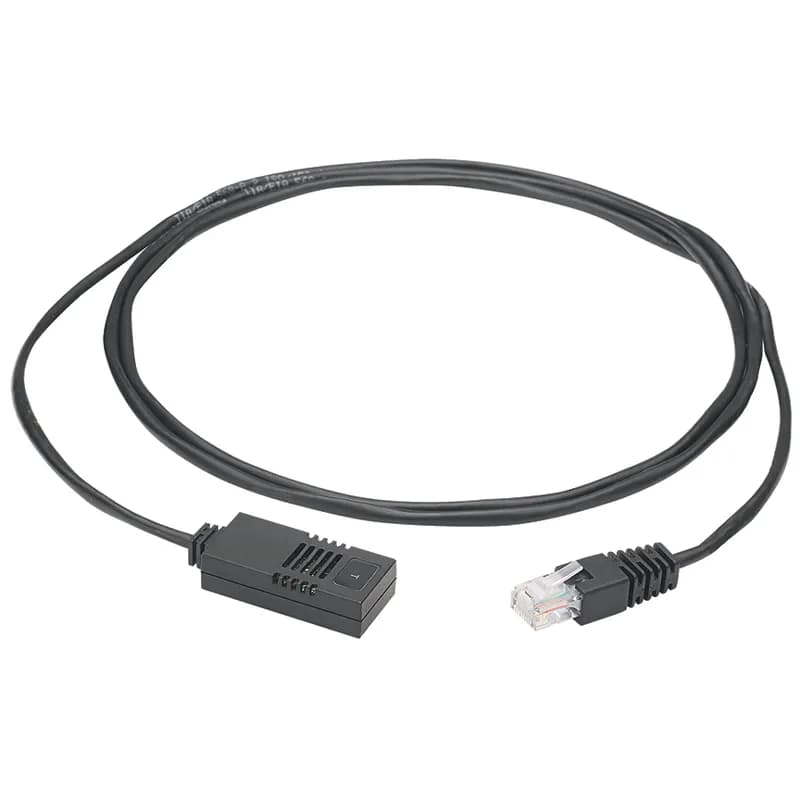

Panduit EA001 - The Temperature Sensor Kit integrates with the Panduit G5/G6 iPDU or UPS for temperature monitoring in a rack. The sensor includes a 6.6 foot (2 m) cable and measures 1.23 inches x 0.70 inches x 0.40 inches (44 mm x 21 mm x 11 mm).
Panduit

EA001

UPC: 613056318281

Documents & Media
BrochureTechnical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetUser ManualOwners Manual

Contact for Pricing

Overview

The Panduit EA001 Temperature Sensor Kit provides precise environmental monitoring for data center racks and cabinets by integrating seamlessly with Panduit G5/G6 intelligent PDUs (iPDUs) or UPS systems. This compact sensor measures just 1.23 inches x 0.70 inches x 0.40 inches (44 mm x 21 mm x 11 mm) and includes a 6.6-foot (2-meter) cable for flexible placement within the rack environment. The sensor delivers accurate temperature readings from -67°F to +275°F (-55°C to +125°C) with a precision of ±0.9°F (±0.5°C), enabling proactive thermal management to prevent equipment overheating and optimize cooling efficiency. Designed for compatibility with Panduit’s G5/G6 iPDU and UPS platforms, the EA001 eliminates the need for separate environmental monitoring systems by leveraging existing infrastructure. The sensor’s small footprint allows installation in tight spaces, while the RJ11/RJ12 terminal connection ensures straightforward integration with supported devices. Ideal for data centers, network closets, and industrial environments where rack-level temperature monitoring is critical, this kit supports compliance with ASHRAE thermal guidelines and helps maintain optimal operating conditions for sensitive IT equipment. The EA001 is manufactured in the USA and carries the Panduit brand, ensuring reliability and long-term performance. Its plug-and-play design reduces deployment time, while the durable construction withstands harsh conditions common in industrial and commercial settings. Pair this sensor with Panduit’s 5-Way Splitter (DSPLIT) to monitor multiple points from a single PDU port, enhancing scalability for larger installations. Key specifications: - Temperature range: -67°F to +275°F (-55°C to +125°C) - Accuracy: ±0.9°F (±0.5°C) - Dimensions: 1.23" x 0.70" x 0.40" (44 mm x 21 mm x 11 mm) - Cable length: 6.6 ft (2 m) - Terminal connection: RJ11/RJ12 - Compatibility: Panduit G5/G6 iPDU, UPS - Country of origin: USA - UNSPSC code: 39121031
  • Compact 44x21x11mm (1.23"x0.70"x0.40") probe for tight rack spaces
  • Wide temperature range: -67°F to +275°F (-55°C to +125°C) with ±0.9°F (±0.5°C) accuracy
  • 6.6ft (2m) cable for flexible sensor placement in racks
  • RJ11/RJ12 terminal connection for seamless integration with Panduit G5/G6 iPDU or UPS
  • Manufactured in the USA with UNSPSC code 39121031

Specifications

Amperage Rating
NA A
Control
Temperature
Frequency Rating
208 V
Length
79 in
Length
2006.6 mm
Mounting
Cable Tie
Phase
NA
Receptacle
(20)C13, (4)C19
Type
Temperature Sensor
Width
NA in
Package Dimensions (L x W x H)
9 IN x 8 IN x 4 IN
Package Weight (Imperial)
2 lbs

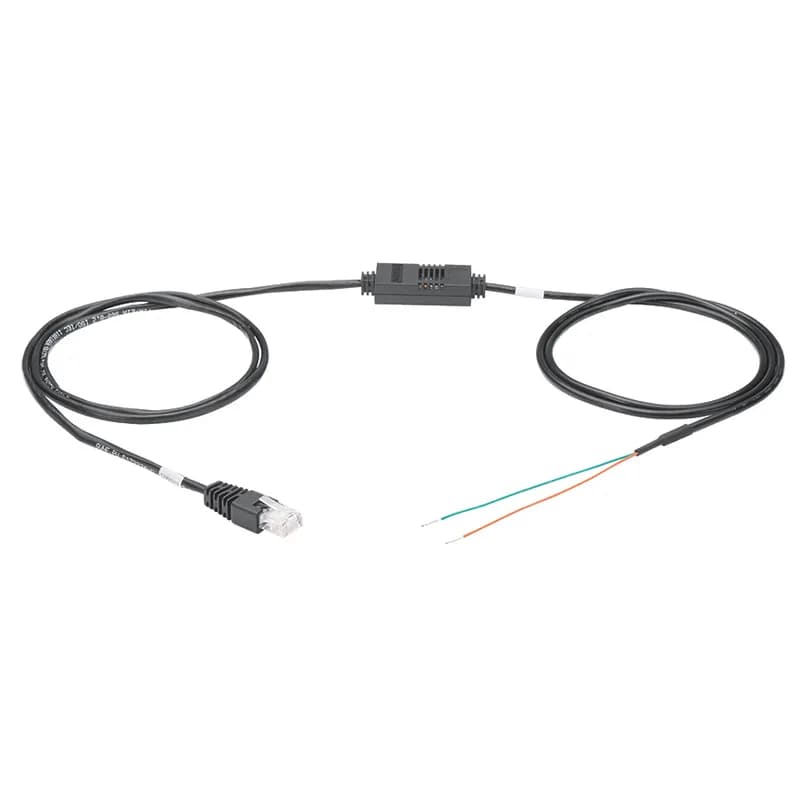

The Dry Contact Sensor integrates with the Panduit G5/G6 iPDU or UPS to offer status change such as motion. The sensor comes with a cable measuring 5.9 feet (1.8 m) and a RJ45 connector. The sensor measures 1.23 inches x 0.70 inches x 0.40 inches (44 mm x 21 mm x 11 mm). The switch is not included.

ACC01

The Dry Contact Sensor integrates with the Panduit G5/G6 iPDU or UPS to offer status change such as motion. The sensor comes with a cable measuring 5.9 feet (1.8 m) and a RJ45 connector. The sensor measures 1.23 inches x 0.70 inches x 0.40 inches (44 mm x 21 mm x 11 mm). The switch is not included.
RackPower PDU RP1000 208V / 50A, 36x C13 + 6x C19 CS8365C plug, Black, Steel

RP10208P50AP342

RackPower PDU RP1000 208V / 50A, 36x C13 + 6x C19 CS8365C plug, Black, Steel
This Panduit G5 Monitored Switched PDU features (18) C13 and (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L15-30P input plug and a 10 foot (3m) power cord.

P24E29M

This Panduit G5 Monitored Switched PDU features (18) C13 and (6) C19 outlets. It is a 30 amp, 208 V, three phase PDU with a NEMA L15-30P input plug and a 10 foot (3m) power cord.
This Panduit G5 Monitored Input PDU features (8) 5-20R outlets. It is a 15 amp, 120 V, single phase PDU with a NEMA 5-15P input plug and a 10 foot (3m) power cord.

P08D09M

This Panduit G5 Monitored Input PDU features (8) 5-20R outlets. It is a 15 amp, 120 V, single phase PDU with a NEMA 5-15P input plug and a 10 foot (3m) power cord.
This Panduit G5 Monitored Input PDU features (12) C13 outlets. It is a 20 amp, 208 V, single phase PDU with a NEMA L6-20P input plug and a 10 foot (3m) power cord.

P12D13M

This Panduit G5 Monitored Input PDU features (12) C13 outlets. It is a 20 amp, 208 V, single phase PDU with a NEMA L6-20P input plug and a 10 foot (3m) power cord.
This Panduit G5 Monitored Per Outlet PDU features (36) C13 and (12) C19 outlets. It is a 60 amp, 208 V, three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord.

P48F19M

This Panduit G5 Monitored Per Outlet PDU features (36) C13 and (12) C19 outlets. It is a 60 amp, 208 V, three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord.
This Panduit G5 Monitored Switched PDU features (12) C13 and (12) C19 outlets. It is a 50 amp, 208 V, three phase PDU with a CS8365C input plug and a 10 foot (3m) power cord.

P24E31M

This Panduit G5 Monitored Switched PDU features (12) C13 and (12) C19 outlets. It is a 50 amp, 208 V, three phase PDU with a CS8365C input plug and a 10 foot (3m) power cord.
This Panduit G5 Monitored & Switched per Outlet PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord.

P36G18M

This Panduit G5 Monitored & Switched per Outlet PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord.

Frequently Asked Questions

What is the primary function of the EA001 Temperature Sensor?

The EA001 Temperature Sensor precisely checks temperature levels and provides threshold alerts on critical values. It ensures optimal conditions to protect IT equipment's performance and longevity.

What is the primary function of the EA001 Temperature Sensor?

The EA001 Temperature Sensor precisely checks temperature levels and provides threshold alerts on critical values. It ensures optimal conditions to protect IT equipment's performance and longevity.

How does the EA001 Temperature Sensor integrate into a system?

The EA001 Temperature Sensor is a plug-and-play digital sensor. It integrates with Panduit G5/G6 iPDU and UPS systems.

How does the EA001 Temperature Sensor integrate into a system?

The EA001 Temperature Sensor is a plug-and-play digital sensor. It integrates with Panduit G5/G6 iPDU and UPS systems.

How to Install the Panduit Temperature and Humidity Sensors

This guide provides step-by-step instructions for installing and configuring Panduit Temperature and Humidity Sensors for environmental monitoring.

Estimated time: 30m

Tools needed:

Screwdriver, Wire strippers

Supplies needed:

Cable ties, Standard Ethernet cable, RJ45 quick disconnect coupler (optional)

  1. Secure the sensor box

    Thread a cable tie through the recessed channel in the sensor box and through the perforated rack enclosure door to secure the sensor box. Ensure it is firmly attached.

  2. Route the RJ45 cable

    Secure the RJ45 cable along the desired path to the G5/G6 iPDU or UPS using the included cable ties to prevent any strain or damage.

  3. Connect the sensor

    Plug the RJ45 cable into a Sensor Port on the Panduit G5/G6 iPDU, UPS, or Sensor Hub (Panduit PN: EF001) to establish the connection.

  4. Configure monitoring conditions

    Using the Web UI, set up specific conditions to monitor and configure alarm settings as needed for your application.

  5. Verify installation

    Ensure that the environmental sensors are functioning correctly and are ready for use by checking the Web UI for sensor data.
