Contact for Pricing
Overview

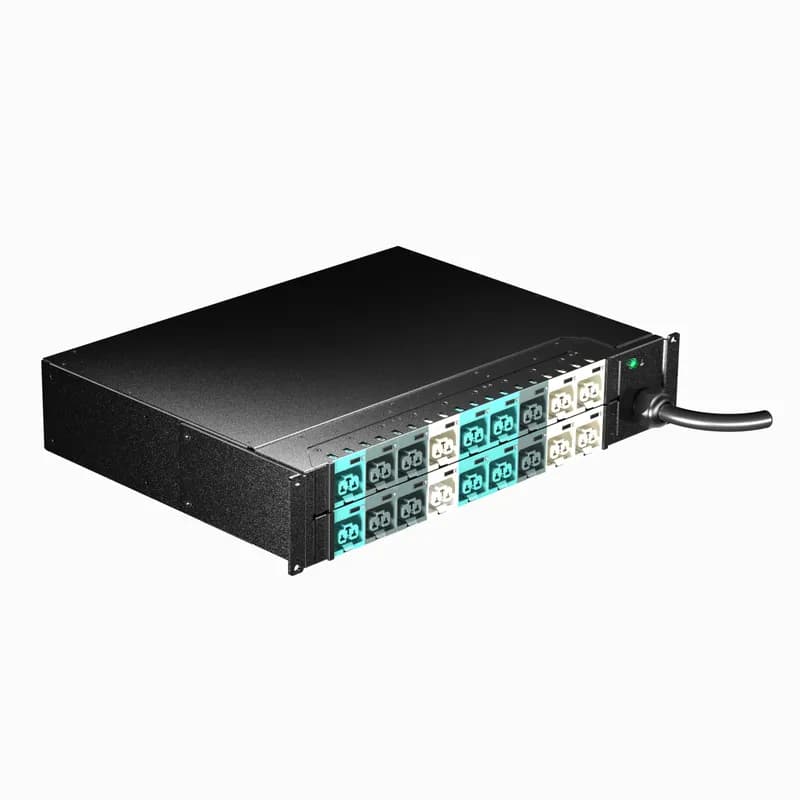

- 30 Amp current rating for substantial power delivery.
- 18 mixed outlets: C13, C15, C19, and C21 types.
- NEMA L6-30P input plug for secure, high-amperage connection.
- Designed for reliable power distribution in IT environments.
- Panduit manufacturer, SKU E18D19L.
Specifications
Color | Black |
Current Rating | 30 (24) A |
Nema Rating | NEMA L6-30P |
Phase | Single-Phase |
Standard | Nemko Listed Certificate: NA202011186, CE, UKCA, ROHS, REACH, China ROHS |
Type | PDU |
Package Dimensions (L x W x H) | 56 IN x 31 IN x 7 IN |
Package Dimensions (L x W x H) | 142.24 cm x 78.74 cm x 17.78 cm |
Package Weight (Imperial) | 48.0000 L |
Package Weight (Metric) | 21.7728 kg |
Frequently Asked Questions
What is the standard warranty for Panduit PDUs?
Panduit PDUs come with a 3-year standard warranty, which can be extended to 5 years.
What is the maximum operating temperature?
Panduit PDUs are built with premium components to withstand 140°F (60°C) at full load.
Do Panduit PDUs feature hot-swappable controllers?
Yes, Panduit PDUs feature hot-swappable controllers that can be removed without affecting outlet status, ideal for service or repair.
What network connectivity options are available?
PDUs offer single or dual Gigabit Ethernet and serial connectivity. Some models also support Wi-Fi and Bluetooth via CNT06.
What can Panduit PDUs monitor in real-time?
Panduit PDUs provide real-time monitoring of power, environmental conditions, and cabinet security.
Are Panduit PDUs compatible with Cisco systems?
Yes, Panduit's intelligent PDUs are compatible with Cisco Nexus Dashboard software for enhanced energy savings and sustainability insights.
Do Panduit PDUs integrate with DCIM solutions?
Yes, intelligent PDUs offer integration with monitoring software for data management and analytics, with EL2P series having native Cisco Nexus Dashboard and Redfish API integration.
What is the maximum daisy chain capacity?
Daisy chain capacity varies by model, with ES2P supporting 16, G6 supporting 32, and EL2P supporting up to 64 PDUs.
What is the metering accuracy of Panduit PDUs?
Metering accuracy is ± 2% for ES2P and G6 models, and ± 0.5% for EL2P models.
How are vertical PDUs mounted?
Vertical PDUs feature tool-less mounting buttons for quick and secure attachment to rack keyhole slots, simplifying setup.
How to Install the Panduit EL2P Rack Power Distribution Unit (PDU)
This guide provides step-by-step instructions for qualified personnel to safely install a Panduit EL2P Rack Power Distribution Unit (PDU) into a datacenter rack or cabinet, covering mounting, grounding, and power connection.
Estimated time: 1h
Tools needed:
#2 Phillips screwdriver, T10 Torx screwdriver, T20 Torx screwdriver, 2.5mm hex key Allen wrench
Supplies needed:
Ground bonding cable, Cage nuts
- Review Safety Information and Prepare the Rack
Before installation, ensure you are qualified personnel and review all safety precautions in the manual, especially regarding high leakage current and lethal voltages. Ensure the PDU is installed in a temperature and humidity controlled, indoor environment. For vertical PDUs, position the unit to avoid blocking exhaust airflow, maintaining 2-3 inches clearance, and seal unused rack spaces with blanking panels. WARNING: Installation must be performed by individuals knowledgeable about AC power products. Ensure a reliable grounded connection before connecting power.
- Mount the PDU in the Rack
For vertical (0U) PDUs, insert the pre-installed mounting buttons into the keyhole slots on the rack's PDU mounting bracket. Secure with a #2 Phillips screwdriver to 3.0Nm. For horizontal (1U/2U) PDUs, install cage nuts at the desired U location on both front and rear RETMA rails. Screw the mounting bracket ears into the RETMA rail surface. For high power units, also screw the front mounting brackets into the PDU chassis using a 2.5mm hex key Allen wrench.
- Ground the PDU
Connect a ground bonding cable from the external earthing screw on the PDU chassis to a grounding strip, bus bar, or known earthed reference terminal in the building. Ensure conductor sizes meet national or local electrical codes (e.g., 14 AWG for up to 15A, 12 AWG for up to 20A). WARNING: This equipment must be connected to a protective earth ground. For permanently connected PDUs, installation must be performed by a licensed electrician.
- Connect the PDU to a Power Source
Ensure the feed circuit breaker is OFF and all circuit breakers on the PDU are set to ON. Connect the PDU to an appropriately rated, grounded branch circuit, adhering to all local and national electrical codes. Refer to the PDU's compliance label for input ratings. Once connected, turn the feed circuit breaker ON and wait for the operating system to load and the Main Menu to display. WARNING: Connect only to a circuit providing appropriate branch circuit overcurrent protection. Do not overload the PDU. Verify the line voltage matches the PDU's capabilities to prevent severe equipment damage.
- (Optional) Rotate or Replace the Network Controller
If manual rotation or replacement of the network controller is desired, use a T10 Torx screwdriver to remove the two retaining screws. If rotating, carefully disconnect and then reconnect the ribbon cable, ensuring no crimping. If replacing, disconnect the old and connect the new controller's ribbon cable, then mate the new controller to the chassis. Reinstall and torque the screws to 2.2–3.1 lbf-in [0.25–0.35 N-M]. Avoid overtightening. WARNING: If physically rotating the controller, you must disconnect the ribbon cable to prevent damage.
