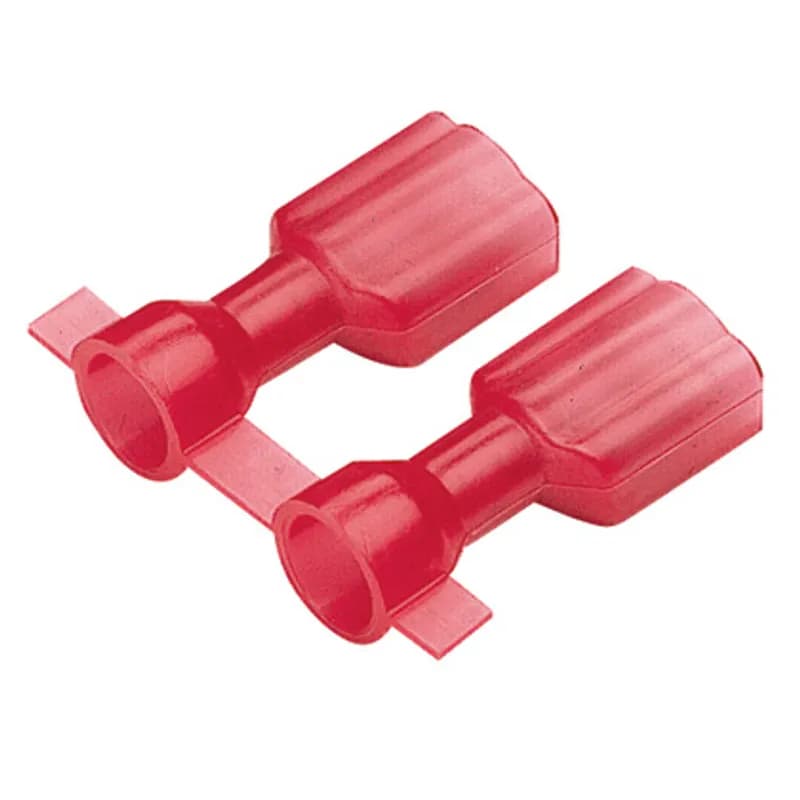

Panduit DNF18250FIMX-2K - The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon standard housing and has an expanded wire entry area. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.97" (24.6 mm) long and 0.41" (10.4 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in reels of 2000 pieces.
Panduit

DNF18250FIMX-2K

UPC: 074983343430

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 2000

Multiplier: 2000

*Contact for lower quantities*

Overview

The Panduit DNF18250FIMX-2K is a vibration-resistant male tab disconnect designed for secure and reliable wire terminations in industrial environments. Manufactured by Panduit, this connector (SKU: DNF18250FIMX-2K) features a nickel-plated brass construction for excellent conductivity and corrosion resistance. Its fully insulated housing is made of red nylon, providing electrical insulation and mechanical protection. The disconnect is engineered with an expanded wire entry area, facilitating easier wire insertion and reducing the risk of insulation damage. It supports a wire range of 22-18 AWG (0.5-1.0 mm²), making it versatile for various wiring applications. The tab size measures 0.250 x 0.032" (6.3 x 0.8 mm), ensuring compatibility with standard female receptacles. The overall dimensions are 0.97" (24.6 mm) in length and 0.41" (10.4 mm) in width. This model incorporates an expanded barrel configuration and a butted seam barrel, enhancing the mechanical strength and durability of the connection, especially under vibration. Supplied on reels of 2000 pieces, the DNF18250FIMX-2K is an efficient choice for high-volume manufacturing and assembly. Common applications include control panels, machinery wiring, automotive systems, and any scenario where robust, vibration-resistant electrical connections are critical. The red nylon housing clearly identifies the wire gauge compatibility and provides a visual indicator for safety. Originating from the US, this Panduit disconnect meets stringent quality standards for demanding industrial use.
  • Vibration-resistant male tab disconnect for secure connections.
  • Nickel-plated brass construction for durability and conductivity.
  • Fully insulated red nylon housing for electrical safety.
  • Expanded wire entry and barrel for easier termination.
  • Supports 22-18 AWG wire range (0.5-1.0 mm²).
  • Vibration-resistant design ensures secure connections
  • Supplied in reels of 2000 pieces for bulk applications

Specifications

Color
Red
Connection
Expanded
Connection Type
Male Tab Disconnect
Finish
Nickel Plated
Finish
Nickel-plated
Insulation
Nylon
Material
Brass
Material
Nickel-plated Brass, Nylon
Material
Nickel-plated brass with nylon
Material
Nickel-plated brass
Mounting
9/32 In.
Series
DNF
Size
0.97" (24.6 mm) long, 0.41" (10.4 mm) wide, 0.250 x 0.032" (6.3 x 0.8 mm) tab size
Size
0.250 x 0.032" (6.3 x 0.8 mm) tab, 0.97" (24.6 mm) long, 0.41" (10.4 mm) wide
Size
0.97" (24.6 mm) long, 0.41" (10.4 mm) wide
Standard
CSA Certified LR31212, C22.2 No.153;UL 310 Listed, UL Listed 20H3 E78522
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Disconnect
Voltage Rating
600 V
Wire Size
18 AWG
Package Dimensions (L x W x H)
26.1 IN x 25.4 IN x 2.4 IN
Package Weight (Imperial)
8.4 lbs

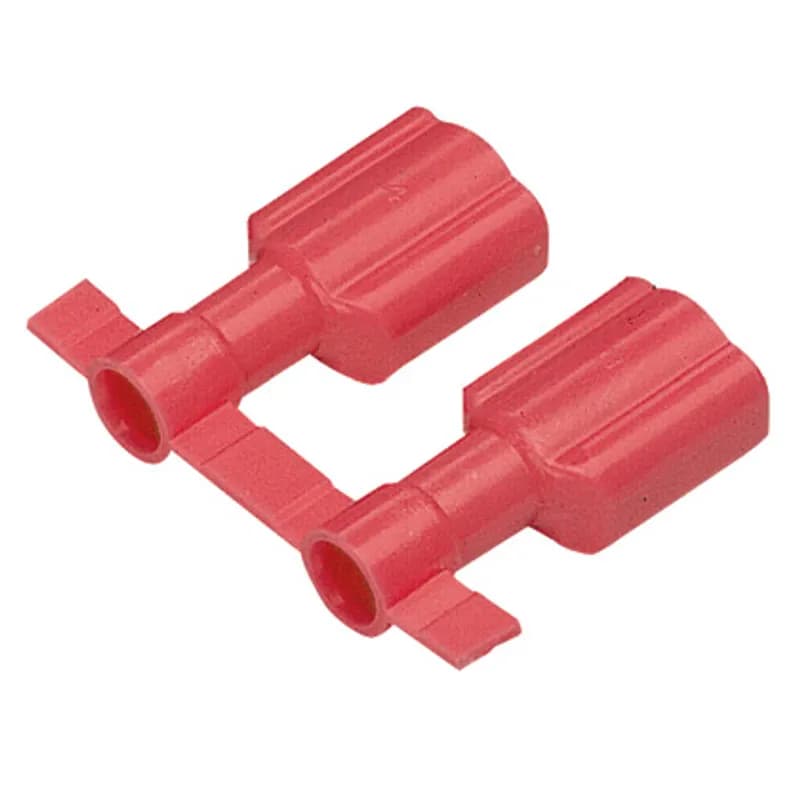

The vibration resistant male disconnect is made of brass and is nickel-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.9" (22.9 mm) long and 0.41" (10.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 2000.

DPF18-250FIM-2K

The vibration resistant male disconnect is made of brass and is nickel-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.9" (22.9 mm) long and 0.41" (10.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 2000.
