Contact for Pricing
Minimum Qty: 2
Multiplier: 1
*Contact for lower quantities*
Overview
- Designed for 6-foot (1800mm) aisles
- Extends up to 4 inches for adjustable fit
- White finish for a clean aesthetic
- Compatible with Universal Aisle Containment Drop Away Roof Panels
- Manufactured in the US
Specifications
Color | White |
Material | PVC/Vinyl |
Standard | RoHS Compliant |
Type | Roof Section |
Width | 70.8 In. |
Package Dimensions (L x W x H) | 60 IN x 7.37 IN x 6.18 IN |
Package Weight (Imperial) | 9.48 lbs |

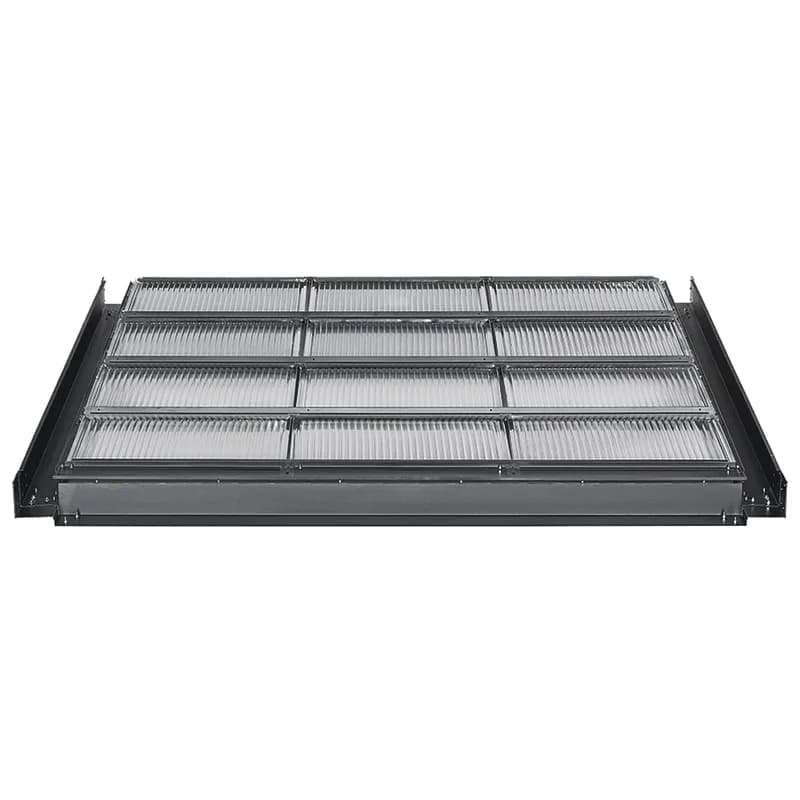

CUCGF06DPW1
The Net-Contain Ceiling Grid Kit is used with the Drop Away Roof Panel to suppress fire in the data center. It is part of the Universal Aisle Containment thermal solution. The 6-foot (1800mm) ceiling grid is white.

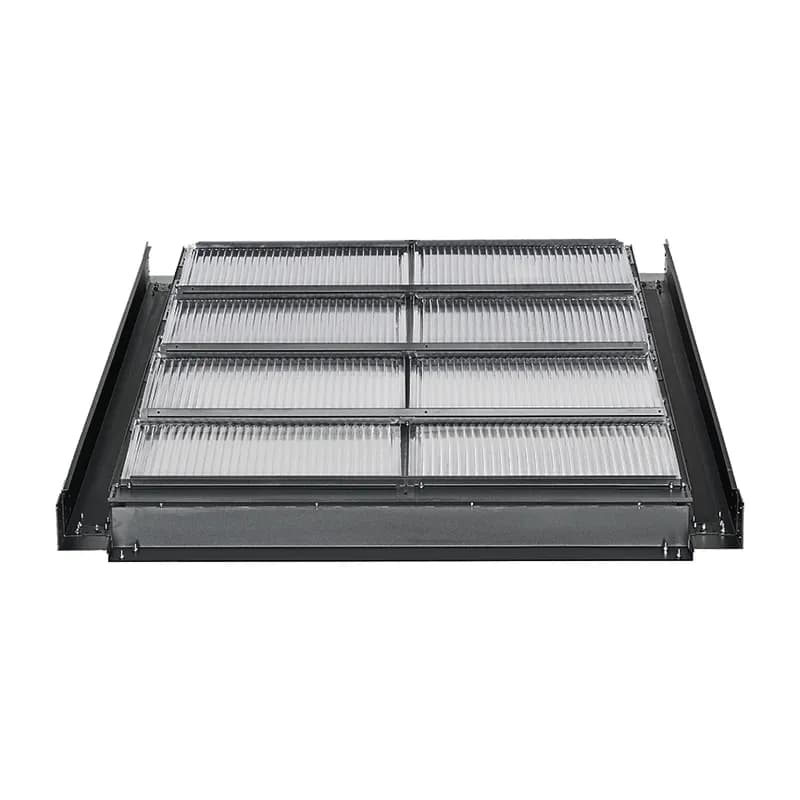

CUCGF04DPW1
The Net-Contain Ceiling Grid Kit is used with the Drop Away Roof Panel to suppress fire in the data center. It is part of the Universal Aisle Containment thermal solution. The 4-foot (1200mm) ceiling grid is white.

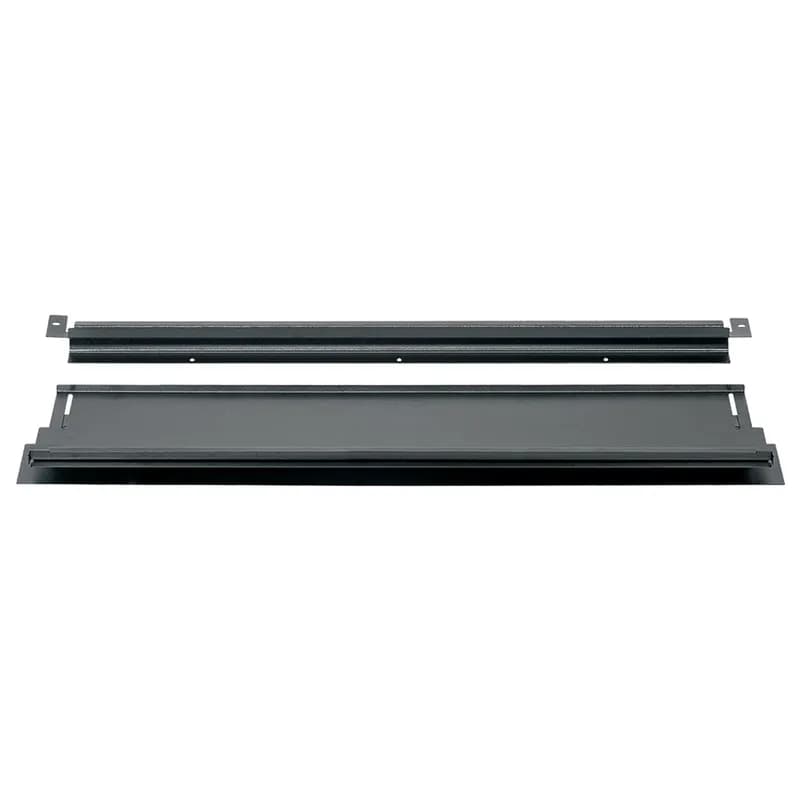

CUEORF04DPW1
The Net-Contain End of Row Kit is used with the Universal Aisle Containment Drop Away Roof Panels. The End of Row Kit is for a 4-foot (1200mm) aisle, and can extend up to four inches. It is white.
CUCGF03DPW1
The Net-Contain Ceiling Grid Kit is used with the Drop Away Roof Panel to suppress fire in the data center. It is part of the Universal Aisle Containment thermal solution. The 3-foot (900mm) ceiling grid is white.
CUEORF03DPW1
The Net-Contain End of Row Kit is used with the Universal Aisle Containment Drop Away Roof Panels. The End of Row Kit is for a 3-foot (900mm) aisle, and can extend up to four inches. It is white.
AFR4BCIW6
The above floor raceway is a non-metallic, 4 channel surface raceway used to route, protect, and conceal data, voice, video, fiber optic and power cabling over floors. The structurally engineered design is ADA compliant, tamper resistant and made of rigid PVC. It is 6 feet long and is International White
AFR4ECIW
The above floor raceway end cap fitting is used to cap the end of the raceway run. The structurally engineered design is ADA compliant, tamper resistant, and made of rigid PVC. It is designed for use with the AFR4BCIW6 channel and is international white.
AFR4CCIW
The above floor raceway coupler fitting joins multiple pieces of above floor raceway together, creating a continuous run of raceway. The structurally engineered design is ADA compliant, tamper resistant, and made of rigid PVC. It is designed for use with the AFR4BCIW6 channel and is international white.
CUEORF06DPB1
The Net-Contain End of Row Kit is used with the Universal Aisle Containment Drop Away Roof Panels. The End of Row Kit is for a 6-foot (1800mm) aisle, and can extend up to four inches. It is black.
CUCGF06DPB1
The Net-Contain Ceiling Grid Kit is used with the Drop Away Roof Panel to suppress fire in the data center. It is part of the Universal Aisle Containment thermal solution. The 6-foot (1800mm) ceiling grid is black.
CUEFRCKITW1
The conversion kit is used to convert an USRC single row end of row frame to UAC to row end of row frame with a 900mm wide contained aisle. It is white.
CUEOR18CPW1
The Net-Contain End of Row Cap is part of the Universal Aisle Containment system for cold aisle or hot aisle contaiment in a floor-mounted structure compatible with most cabinet brands and sizes. The End of Row Cap is for 6-foot (1800mm) aisle widths. It is white.Frequently Asked Questions
What installation precautions are necessary for the roof panels?
The Drop Away Roof Panels shall not be adhered to, held down, or fixed in position in any way that may impede their ability to function.
Are these panels compatible with existing containment systems?
Yes, the Drop Away Panels function with new and existing Universal Aisle Containment solutions.
Are the Drop Away Roof Panels compliant with any standards?
Yes, the Drop Away Roof Panels meet the FM Global 4651 standard and are UL BLME.R4036 approved for In-Building Construction.
What is the nominal thickness of the roof panels?
The nominal panel thickness is .013 inch (0.33 mm).
What material are the Drop Away Roof Panels made from?
The panels are made of polyvinyl chloride plastic (PVC/vinyl).
What sizes are available for the Drop Away Roof Panels?
The Drop Away Roof Panels are available in 900mm, 1200mm, and 1800mm sizes, which correspond to 3ft, 4ft, and 6ft aisle widths.
At what temperature do the roof panels activate?
The Drop Away Roof Panels will sag and fall away at 135°F, allowing the sprinkler system access to the containment aisle.
What is the primary function of the Drop Away Roof Panel?
The Drop Away Roof Panel provides an effective solution for fire suppression in data centers by allowing sprinkler system access to the containment aisle.
At what temperature do the roof panels activate?
The Drop Away Roof Panels will sag and fall away at 135°F, allowing the sprinkler system access to the containment aisle.
What installation precautions are necessary for the roof panels?
The Drop Away Roof Panels shall not be adhered to, held down, or fixed in position in any way that may impede their ability to function.
How to Install the 1800mm Drop Away Panel Ceiling System
This guide provides step-by-step instructions for installing the 1800mm Drop Away Panel Ceiling System, ensuring a secure and efficient setup.
Estimated time: 1h
Tools needed:
7mm Socket Wrench, 8mm Socket Wrench, Scissors, Hack saw
Supplies needed:
M5x0.8 x 10mm Hex Head Screws, End of Row Cross Beams, Panels, Progression Plates
- Install the End of Row Beam
Attach the End of Row Beam to one end of the Pod using M5x0.8 x 10mm Hex Head Screws. Ensure it is securely fastened.
- Install Progression Plates
Position the Progression Plates on the shelf, aligning them against the End of Row Beam. Tighten the screws to secure them in place.
- Install Aisle Beam and Cross Beams
Connect the Aisle Beam with two Cross Beams, ensuring they butt up against the Progression Plates. Tighten the screws to secure the assembly.
- Install Remaining Components
Continue installing the remaining Progression Plates, Aisle Beams, and Cross Beams, ensuring they are tightly butted against each other.
- Install the Panels
Push down the Panels from the top of the Pod, ensuring they snap into place below the Aisle Beam flanges. Center the Panels in the grid openings.
- Install the Adjustable End of Row Beam
Attach the Adjustable End of Row Beam to the opposite end of the Pod using M5x0.8 x 10mm Hex Head Screws.
- Complete Last Panel Installation
For the last opening, install the Slider Plate Assembly with End of Row Cross Beams, using either full or cut Panels based on the opening size.
