Overview

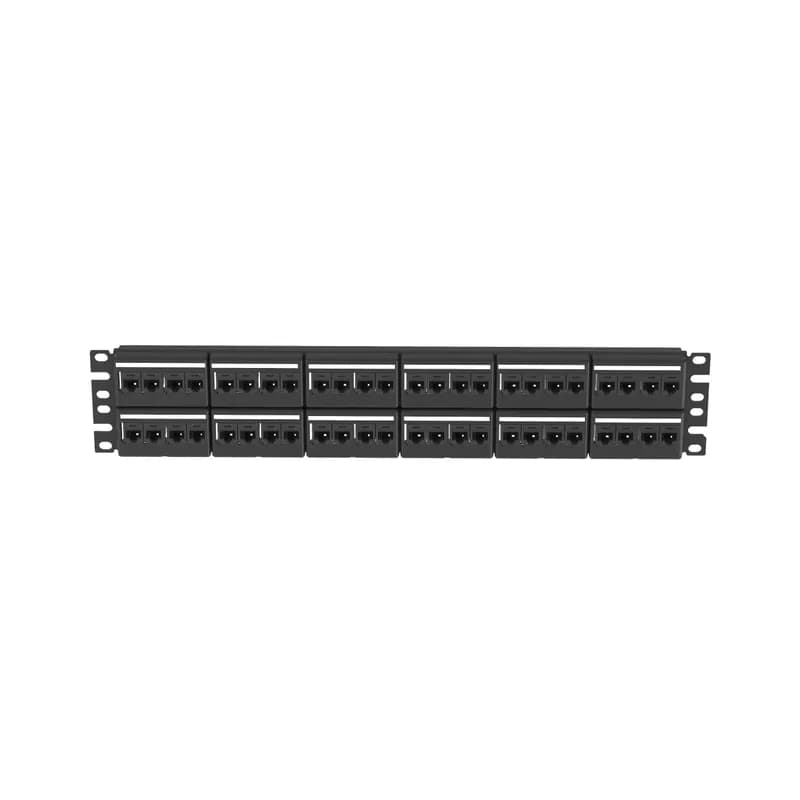

- 48 Mini-Com Cat 6 TG Jack Modules for unshielded applications
- 2 RU height for efficient rack space utilization
- Mounts to standard 19-inch and 23-inch racks and cabinets
- Front access design for easy installation and maintenance
- Includes label pockets for clear port identification
Specifications
Application | NA |
Color* | Black |
Depth | 0.88 In. |
Material | CRS |
Number Of Ports | 48 |
Patch Panel Style* | Flat |
Performance Level* | Category 6 |
Standard | RoHS Compliant |
Type | Patch Panel Kit |
Width | 19 In. |
Package Dimensions (L x W x H) | 21.35 IN x 4.8 IN x 6.5 IN |
Package Weight (Imperial) | 2.27 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What types of modules do these patch panels accept?
The patch panels accept all Mini-Com® Modules for UTP, STP, fiber, or A/V applications.
What are the available port densities for these patch panels?
Patch panels are available in 24, 48-port standard density and 72-port high density.
What is the mounting requirement for these patch panels?
The patch panels mount to standard EIA 19 in racks or 23 in racks with optional extender brackets.
Can I label the patch panels?
Yes, optional labeling features are available on select styles of the patch panels.
Are there angled patch panel options available?
Yes, angled patch panels are designed to help route cables and minimize the need for horizontal cable managers.
What is included with the patch panel packaging?
Each patch panel is packaged with pre-installed snap-in faceplates, mounting screws, and labels where applicable.
What are the dimensions of the patch panels?
Dimensions vary, but standard sizes include 1 RU and 2 RU configurations for different port densities.
What materials are used in the patch panel construction?
The patch panels are made of CRS for the stamping and ABS for the faceplate.
What is the purpose of strain relief bars?
Strain relief bars help support and manage cables for better organization.
Are there options for rack filler panels?
Yes, rack filler panels are available to fill unused rack openings for a clean look.
How to Install the CJ5E88TGR Jack Module
This guide provides step-by-step instructions for installing the CJ5E88TGR Jack Module, including wiring and configuration.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire caps, Strain relief collars
- Prepare the wiring
Trim the pair separator and/or ripcord if present, ensuring that the conductors are not pre-arranged.
- Terminate the conductors
Insert the conductors into the jack module according to the T568A or T568B wiring standard. Ensure that the conductors are fully seated and secure.
- Secure the jack module
Attach the jack module to the mounting location using the provided mounting screws. Ensure it is firmly secured and level.
- Connect the strain relief
Install the strain relief collar to prevent stress on the conductors. Ensure it is properly positioned and secured.
- Verify the installation
Use a multimeter to check the continuity and performance of the connections. Ensure that all connections meet the specified performance standards.
