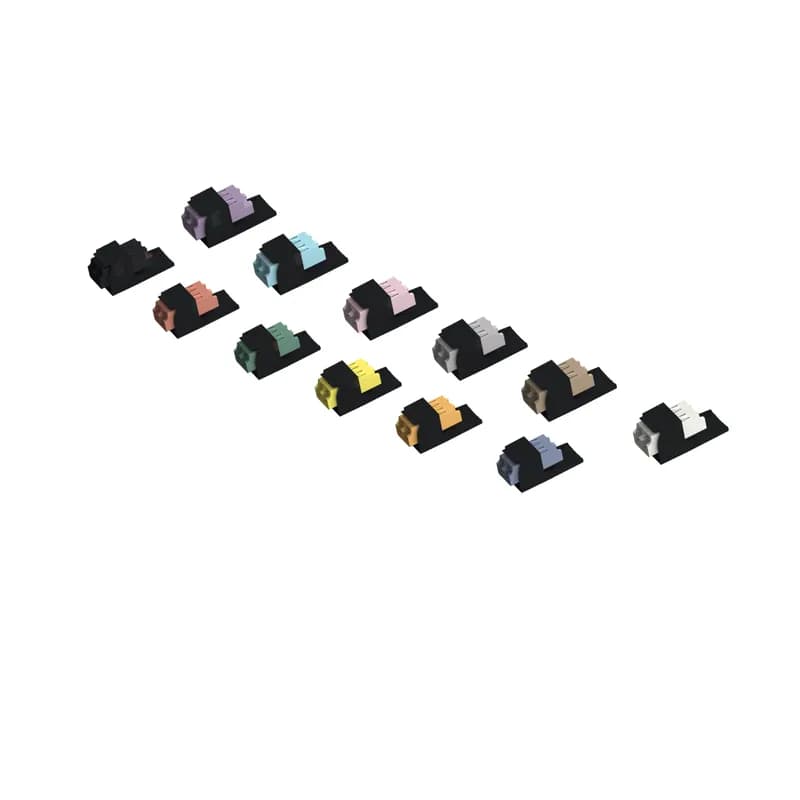

Panduit CMDSVLLCZIW - The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a violet fiber adapter along with an international white module and has zirconia split sleeves.
Panduit

CMDSVLLCZIW

UPC: 613056861572

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit Mini-Com Duplex LC Adapter (SKU: CMDSVLLCZIW) is a compact Small Form Factor (SFF) adapter designed for efficient fiber optic connectivity. This adapter couples two LC duplex connectors within a single module space, optimizing panel real estate. It features integrated panel retention clips for secure installation and is TIA/EIA-605 FOCIS-10 compatible, ensuring broad interoperability. The adapter is equipped with a violet fiber adapter and an international white module, facilitating clear identification and management within fiber optic networks. Key to its performance are the zirconia split sleeves, which provide precise alignment for the fiber optic ferrules, accommodating Singlemode (OS1/2) and Multimode (OM3/4/5) fiber types. This ensures minimal insertion loss and optimal signal integrity. The LC connector itself represents a significant advancement in fiber connectivity, reducing space requirements on equipment bays and distribution panels by 50% compared to older connector types. This adapter is manufactured in the USA and adheres to RoHS compliance standards. It is ideal for applications requiring high-density fiber connections and reliable performance, such as data centers, telecommunications infrastructure, and enterprise networks where space and performance are critical. The precise alignment offered by the zirconia sleeves is crucial for maintaining low insertion loss, a key metric for network performance.
  • Couples two LC duplex connectors in one module space
  • Small Form Factor (SFF) adapter with integrated panel retention clips
  • TIA/EIA-605 FOCIS-10 compatible for broad interoperability
  • Features a violet fiber adapter and international white module
  • Equipped with zirconia split sleeves for precise fiber alignment

Specifications

Application
Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications.
Color*
Violet
Fiber Type
OM4
Material
Zirconia Ceramic
Operating Temperature
140 F
Standard
RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements
Type
LC Adapter Module
Package Dimensions (L x W x H)
5 IN x 3.5 IN x 1 IN
Package Weight (Imperial)
0.013 lbs
