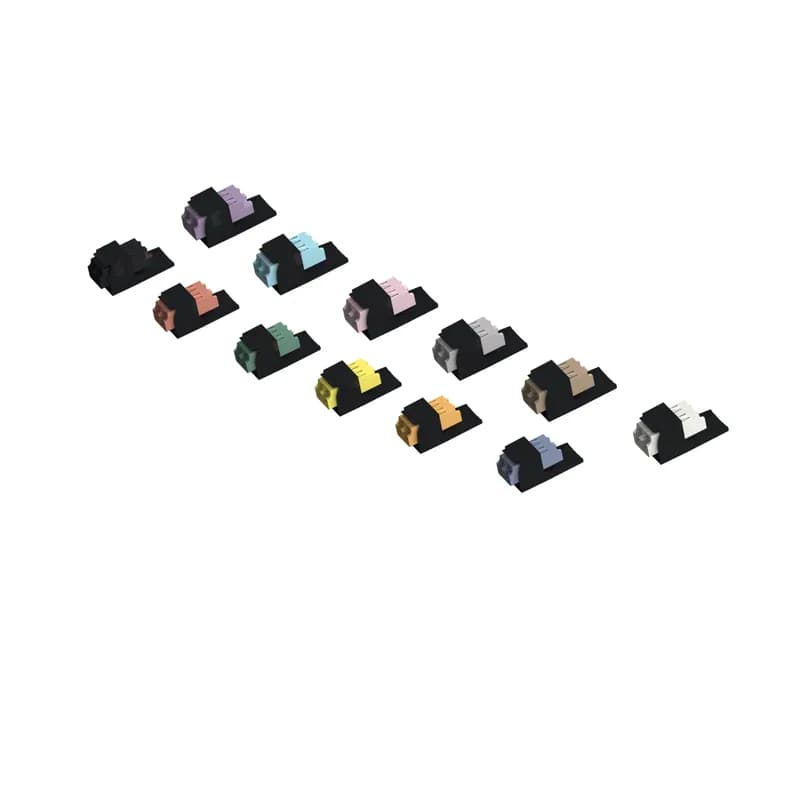

Panduit CMDDYLLCZBL - The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed D-Yellow fiber adapter along with a black module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.
Panduit

CMDDYLLCZBL

UPC: 074983007202

Documents & Media
Technical DrawingFull Engineering DrawingInstallation Instructions

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit Mini-Com Duplex LC Adapter (SKU: CMDDYLLCZBL) is a Small Form Factor (SFF) adapter designed for efficient fiber optic connectivity. This adapter features integrated panel retention clips, ensuring secure mounting within compatible panels. It adheres to TIA/EIA-605 FOCIS-10 standards, guaranteeing interoperability with compliant systems. The CMDDYLLCZBL couples two LC duplex connectors into a single module space, optimizing density in fiber optic installations. It incorporates a Keyed D-Yellow fiber adapter, which is a critical component of Panduit's keyed cabling systems. These systems provide an enhanced layer of physical security by ensuring that adapters only mate with their corresponding keyed connectors, preventing accidental or unauthorized connections. The module itself is black, and it utilizes zirconia split sleeves for precise fiber alignment and durability. Manufactured in the US, this adapter is built for reliable performance in structured cabling environments.
  • Small Form Factor (SFF) design for space efficiency
  • Integrated panel retention clips for secure mounting
  • TIA/EIA-605 FOCIS-10 compatible
  • Couples two LC duplex connectors in one module space
  • Keyed D-Yellow fiber adapter for enhanced physical security

Specifications

Application
Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution.
Color*
Yellow
Material
Zirconia Ceramic
Operating Temperature
140 F
Type
LC Keyed Adapter Module
Package Dimensions (L x W x H)
4.3 IN x 3.8 IN x 4.3 IN
Package Weight (Imperial)
0.035 lbs
