Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- 1U rack mount footprint for space efficiency
- Accommodates up to four Opticom Cassettes or FAP adapter panels
- Compatible with FMT1 and FMT2 trays
- Constructed from durable black powder-coated steel
- Designed for 19-inch wide EIA rack mount installations
Specifications
Application | Provide a flexible and modular system for managing fiber termination, connections, and patching for all applications and offer the industry s highest patch field density and fiber counts for all fiber |
Application | Provide a flexible and modular system for managing fiber termination, connections, and patching for all applications and offer the industry’s highest patch field density and fiber counts for all fiber |
Color | Black |
Depth | 0.44 In. |
Material | Steel |
Mounting | DIN Rail |
Mounting Type | 19" EIA rack mount |
Series | Opticom |
Size | 1 RU |
Slot Capacity | 4 |
Standard | RoHS Compliant |
Type | Rear Loading Adapter Panel |
Width | 19 In. |
Package Dimensions (L x W x H) | 20.25 IN x 2 IN x 1.25 IN |
Package Weight (Imperial) | 0.648 lbs |
CFAPPBL2

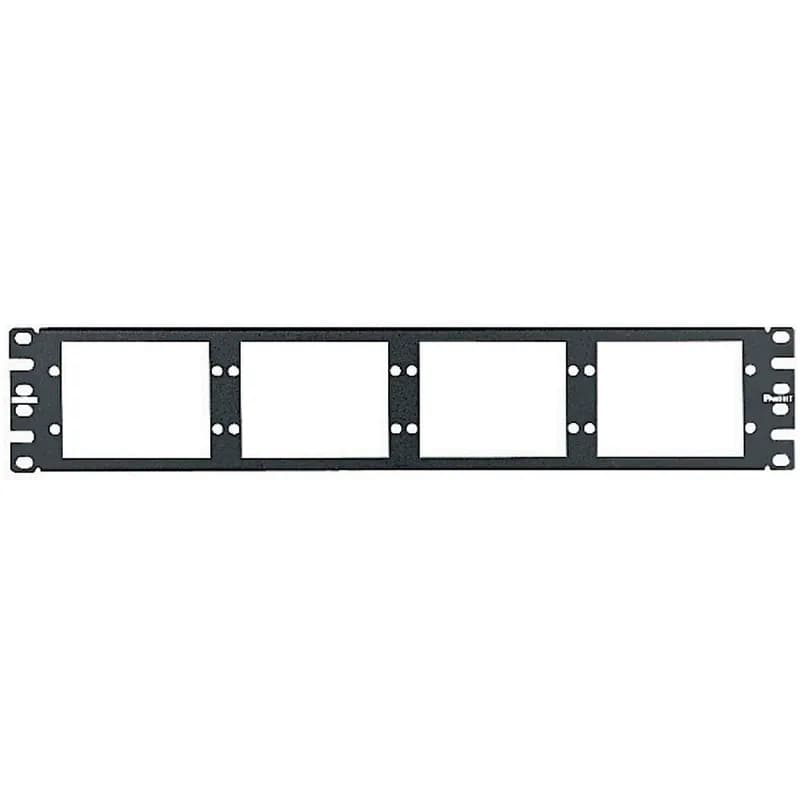

The Opticom flat fiber patch panel is used with FMT1 and FMT2 trays and holds up to eight Opticom Cassettes or FAP adapter panels. It is compatible with all 19 wide EIA rack mount installations, is black powder coated steel, and fits in a 2 RU footprint.
PZLRB2U
The PanZone Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is black.
WMFS24

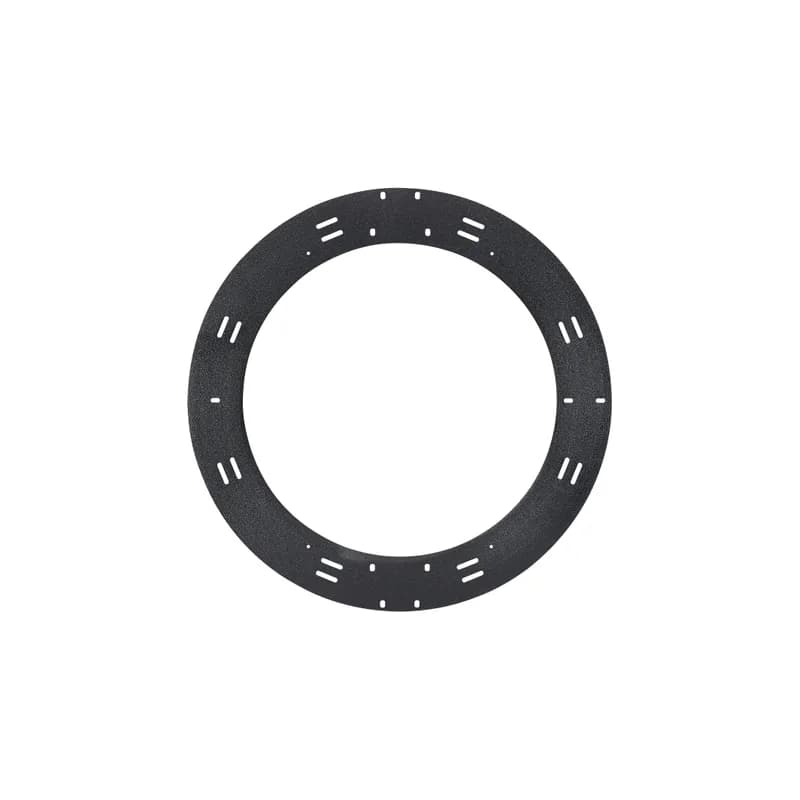

The Slack Management Storage Ring provides proper bend radius for excess cable storage. The steel ring has many different mounting options, including wall mount or various mounting methods to 4 post racks. The ring is 24 inches in diameter. Includes hook and loop for easy cable tie-off. Product is black.
R4P36CN
The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 36 inches deep, with adjustable mounting rails that have cage nut EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.
FRE4UBL
The Panduit Opticom Rack Mount Enclosure ensures network reliability by housing, organizing, managing and protecting up to 384 fiber optic cable terminations, splices, connectors and patch cords. The FRE4UBL is black, made of steel and uses up to 16 FAP adapter panels, 16 Opticom cassettes, 32 HD Flex cassettes or FOSM splice modules in a 4 RU footprint. Fibers are easily accessible through front pullout drawer and a removable back cover. 6.97"H x 19"W x 15.63"D (177.0mm x 482.0mm x 397.0mm)
FCP9SP-2083GG
The rack-mount fiber optic splitter tray fits in 19" racks, occupies 1 RU, and uses a planar lightwave circuit to split one signal to eight signals for passive optical network applications. The splitter tray includes a covered, splice-ready input stage on the rear of the device and eight SC-APC outputs on the front of the device.
FCP9SP-2323GG
The rack-mount fiber optic splitter tray fits in 19" racks, occupies 1 RU, and uses a planar lightwave circuit to split one signal to thirty-two signals for passive optical network applications. The splitter tray includes a covered, splice-ready input stage on the rear of the device and thirty-two SC-APC outputs on the front of the device.
FMT2
The Opticom fiber tray is designed to organize fiber distribution cabling. When used with the CFAPPBL2 patch panel, it accommodates up to 8 QuickNet cassettes or FAP adapter panels. It is black powder coated steel and features 8 ports in a 2 RU footprint. It measures 3.48 inches H x 19 inches W X 11.16 inches D (88.3mm x 482.6mm x 283.4mm).
FCP9SP-2163GG
The rack-mount fiber optic splitter tray fits in 19" racks, occupies 1 RU, and uses a planar lightwave circuit to split one signal to sixteen signals for passive optical network applications. The splitter tray includes a covered, splice-ready input stage on the rear of the device and sixteen SC-APC outputs on the front of the device.
CMLT19
The Lower Trough attaches to the bottom of a rack where it supports and contains cable with proper bend radius. It is compatible with any standard EIA 19 inch (483mm) rack or cabinet. The trough is 4RU in height, 4.5 in. deep and is black in color.
Frequently Asked Questions
What types of fiber optic adapters are included?
The fiber adapter panels include horizontal MPO adapters, LC, Shuttered LC, keyed LC, and SC fiber optic adapters.
How do I install the fiber adapter panels?
Fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy installation.
What standards do the fiber adapters meet?
All adapters meet or exceed TIA/EIA-568-C.3 requirements and various TIA/EIA-604 FOCIS standards.
Are the adapter housing colors standardized?
Yes, LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme.
What is the material of the split sleeves?
The split sleeves are made of zirconia ceramic for OM1/OM4/OM5 multimode adapters and OS2 singlemode adapters.
What is the insertion loss performance?
The fiber adapter panels support the performance of connectors and patch cords, ensuring low insertion loss.
What are the available rack mount options?
Rack mount options include 1 RU, 2 RU, and 4 RU enclosures that hold various numbers of fiber adapter panels.
What types of polarity configurations are available?
Type A polarity features a key-up to key-down configuration, while Type B polarity has a key-up to key-up configuration.
What is the purpose of blank fiber adapter panels?
Blank fiber adapter panels reserve space for future use in fiber adapter panel installations.
Can I customize the installation for fiber and copper cables?
Yes, multimedia modular panels allow customization for integrating fiber optic and copper cables.
How to Install the CFAPPBL1 Fiber Adapter Patch Panel
This guide provides step-by-step instructions for mounting and wiring the CFAPPBL1 Fiber Adapter Patch Panel to an Opticom Rack Mount Fiber Tray or directly to a standard 19" rack.
Estimated time: 30m
Tools needed:
Screwdriver
Supplies needed:
Mounting screws, Fasteners (included with Tray)
- Prepare the installation site
Ensure that the installation area is clean and free of obstructions. Verify that you have access to the mounting location on the FMT1 or FMT2 tray or the EIA standard 19" rack.
- Mount the patch panel
Secure the CFAPPBL1 patch panel to the FMT1 or FMT2 tray using the included fasteners. If mounting directly to a 19" rack, use appropriate mounting screws to secure the panel.
- Connect fiber cables
Attach the fiber cables to the patch panel ports. Ensure that each connection is secure and properly aligned to avoid signal loss.
