Panduit ABMM-A-C - Panduit s ABMM-A-C rubber-based adhesive back cable tie mounts have been designed for fast installation and long-term performance. These mounts can be used with miniature and intermediate cables ties. Made of ABS plastic and intended for use in indoor environments. They are 0.75 x 0.75 (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 100.

Panduit ABMM-A-C Panduit s ABMM-A-C rubber-based adhesive back cable tie mounts have been designed for…

UPC: 074983585007

Documents & Media
BrochureTechnical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit ABMM-A-C adhesive cable tie mounts provide a fast, tool-free solution for securing miniature and intermediate cable ties in indoor environments. Constructed from durable ABS plastic with a rubber-based adhesive backing, these mounts deliver reliable attachment to smooth surfaces without drilling or additional hardware. Each mount measures 0.75" x 0.75" (19.1mm x 19.1mm) and is supplied in strips of two for efficient dispensing and application. The white ABS construction ensures compatibility with most cable management systems while maintaining a clean, professional appearance in control panels, telecommunications equipment, and general electrical installations. Designed for compatibility with Panduit’s M and I series cable ties, the ABMM-A-C mounts support a wide range of bundling applications where space is limited. The rubber-based adhesive provides strong initial tack and long-term hold, making these mounts ideal for permanent or semi-permanent installations where surface damage must be minimized. Unlike metal or screw-mounted alternatives, these adhesive-backed solutions reduce installation time by up to 70% while eliminating the need for tools or additional mounting hardware. Each package contains 100 mounts, offering a cost-effective bulk solution for large-scale projects or recurring maintenance tasks. The compact footprint of the ABMM-A-C allows for discreet placement in tight spaces, ensuring cable bundles remain organized without adding unnecessary bulk. Whether used in control panels, server rooms, or industrial automation systems, these mounts maintain consistent performance in indoor conditions where temperature and humidity fluctuations are controlled. For applications requiring higher load capacity, consider Panduit’s ABMM-AV-C series, which features a high-bond adhesive formulation for twice the static load performance. The ABMM-A-C is optimized for standard indoor use, providing a balance of affordability, ease of installation, and reliable cable management in environments where permanent fixtures are not required.
  • Material: ABS plastic with rubber-based adhesive backing
  • Dimensions: 0.75" x 0.75" (19.1mm x 19.1mm)
  • Compatibility: Fits Panduit M and I series cable ties
  • Installation: Tool-free, no drilling required
  • Package Quantity: 100 mounts per pack
  • Environment: Indoor use only

Specifications

Application
Indoor
Cable Size
NA In.
Cable Size
NA
Cable Type
Cable Tie Mount
Color
White
Insulation
Other
Material
ABS
Material
ABS plastic
Material Quality
ABS
Mounting
Adhesive Tape
Mounting Type
Adhesive Back
Mounting Type
Adhesive-backed
Operating Temperature, Maximum
120 F
Operating Temperature, Maximum
48.8889 C
Operating Temperature, Minimum
120 F
Operating Temperature, Minimum
48.8889 C
Screw Holes
NA
Series
ABMM
Size
0.75" x 0.75" (19.1mm x 19.1mm)
Standard
CE Compliant, UL Recognized: E136577, RoHS Compliant
Temperature Range
-20°F - 120°F (-29°C - 49°C)
Temperature Range
-20 F - 120 F (-29 C - 49 C)
Type
Cable Tie Mount
Used With Cable Ties*
M, I
Package Dimensions (L x W x H)
10.3 IN x 6.25 IN x 4.4 IN
Package Weight (Imperial)
0.9 lbs
Panduit s ABMQS-A-C multiple bridge adhesive backed cable tie mounts have 4-way cable tie entry making part orientation fast and easy. They are made of ABS plastic, are mounted with rubber adhesive tape and have a hole spacing of 2.5" (63.5 mm). The mounts are 5.1" long x 0.75" wide (130.3 x 19.0 mm). They can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are white in color and come in packages of 100.

ABMQS-A-C

Panduit s ABMQS-A-C multiple bridge adhesive backed cable tie mounts have 4-way cable tie entry making part orientation fast and easy. They are made of ABS plastic, are mounted with rubber adhesive tape and have a hole spacing of 2.5" (63.5 mm). The mounts are 5.1" long x 0.75" wide (130.3 x 19.0 mm). They can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are white in color and come in packages of 100.

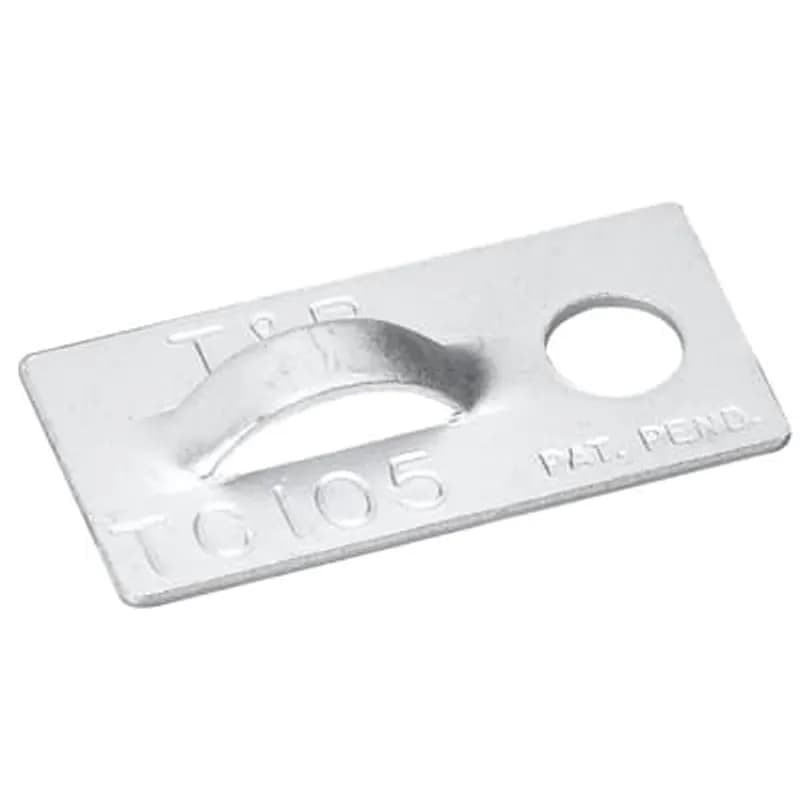

Aluminum Mounting Plate for Securing Cables, Adhesive Mounting Method, Temparature Rating of 66 Degrees Celsius (150F)
