Overview
- 4 AWG stranded copper conductor compatibility
- 1/4" stud hole for secure connections
- Tin-plated copper for corrosion resistance
- Flared barrel entry for easy conductor insertion
- High pullout strength for heavy-duty applications
Specifications
Amperage Rating | 90 A |
Barrel Type* | Standard |
Color | Silver |
Connection Type | Screw Terminal |
Material | Copper |
Mounting | 5/8 In. |
Series | A4 |
Size | 4 AWG, 1/4" stud |
Standard | cULus Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
Stud Size | 1/4 In. |
Type | Compression Lug |
Package Dimensions (L x W x H) | 4.2 IN x 2.1 IN x 4.2 IN |
Package Weight (Imperial) | 1.6 lbs |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Frequently Asked Questions

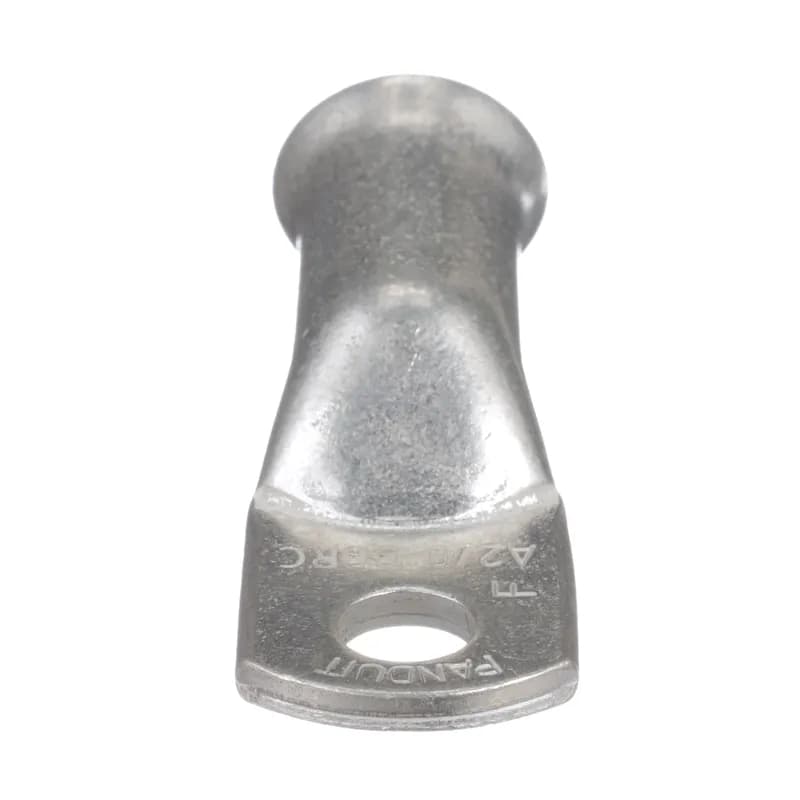

What is the Panduit A4-14R-C product?
The Panduit A4-14R-C is a tin-plated copper battery compression lug, designed for heavy-duty power connector applications. It features high conductivity copper and tin plating for corrosion resistance.
What wire types are compatible with A4-14R-C?
The A4-14R-C lug is specifically designed to terminate Class K flex conductors. Its wire size compatibility is 4 AWG.
What is the stud hole size for A4-14R-C?
The Panduit A4-14R-C battery compression lug has a stud hole size of 1/4 inch.
What is the required wire strip length for A4-14R-C?
For the A4-14R-C lug, the required wire strip length is 5/8 inch.
What certifications does the A4-14R-C hold?
The A4-14R-C is UL Listed for use in the U.S. and Canada, meeting the UL 486A-486B standard for power applications.
What is the wire pullout strength for A4-14R-C?
When using Panduit recommended tooling, the A4-14R-C meets Military Pullout Strength requirements, with a pullout force of 140/400 lb.
Does the A4-14R-C have features for easier installation?
Yes, the A4-14R-C features a flared entry design to facilitate easier installation of flex conductors. It also has embossed wire size identification.
Which Blackfin tool is recommended for A4-14R-C?
For the A4-14R-C, the recommended Blackfin battery powered tool uses die part number KC22-4 (Red), requiring two compressions.
Which Greenlee tool is recommended for A4-14R-C?
The recommended Greenlee tool for the A4-14R-C uses die part number 10969, requiring one compression.
Which bench top crimpers are compatible with A4-14R-C?
The Schleuniger CT 60 and Wezag UP 60 bench top crimpers are compatible with A4-14R-C, both using die part number 514DA-4NIT-B.170 and requiring one compression.
How to Install the A4-14R-C Copper Compression Connector
This guide provides step-by-step instructions for installing the A4-14R-C copper compression connector, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
A4-14R-C connectors, Copper wire, Cleaning cloth
- Prepare the wire
Strip the insulation from the copper wire to the length specified in the tool chart, ensuring not to nick or damage the conductor strands.
- Clean the wire
Use a cleaning cloth to clean the stripped end of the wire to ensure a good connection.
- Insert the wire into the connector
Insert the stripped wire into the A4-14R-C connector until it stops, ensuring a snug fit.
- Crimp the connector
Using the appropriate crimping tool and die, crimp the connector by placing it in the tool and applying pressure evenly across the crimp zones as indicated in the tool chart.
- Verify the connection
Use a multimeter to check the continuity of the connection to ensure it is secure and functioning properly.
