Overview

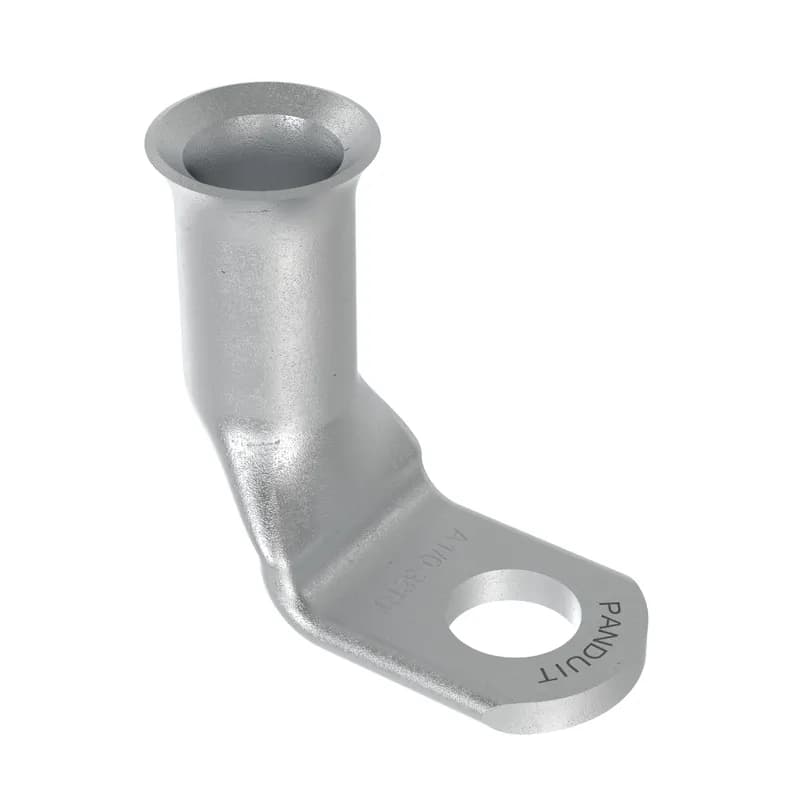

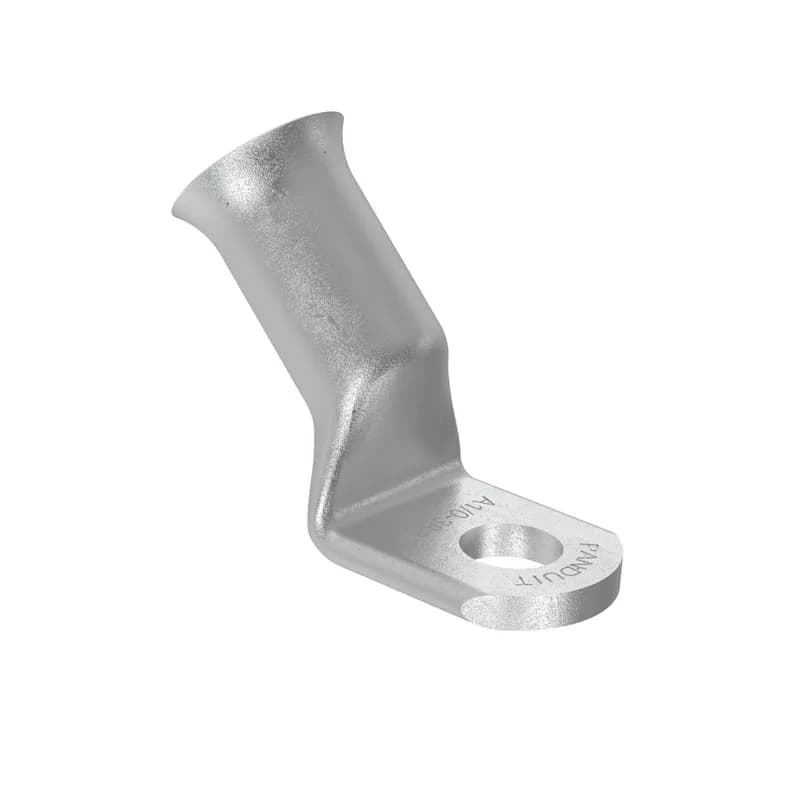

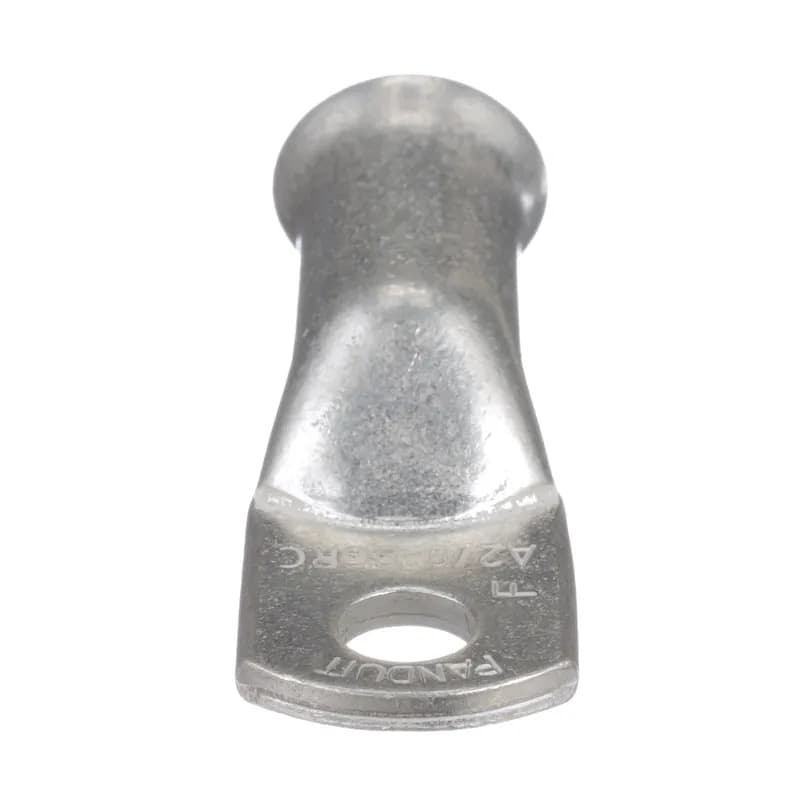

- Copper compression lug for 1/0 AWG conductors
- 3/8" stud hole size
- Standard barrel construction without inspection window
- Tin-plated to meet ASTM Class C specifications for corrosion resistance
- Designed for use with Class K flexible stranded copper conductors
- High pullout strength for heavy-duty applications
- Embossed wire size identification
- Requires Panduit tooling (Die Index KC22-1/0)
- Standard package quantity: 25
Specifications
Amperage Rating | 90 A |
Barrel Type* | Standard |
Color | Silver |
Material | Copper |
Mounting | 13/16 In. |
Mounting Type | 3/8" Stud |
Series | A1/0-38R-C |
Size | 1/0 AWG |
Standard | cULus Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
Stud Size | 3/8 In. |
Type | Compression Lug |
Package Dimensions (L x W x H) | 8.1 IN x 4.2 IN x 3.1 IN |
Package Weight (Imperial) | 5.34 lbs |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
How to Install the A1/0-12R-C Compression Connector
This guide provides step-by-step instructions for installing the A1/0-12R-C compression connector, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
A1/0-12R-C compression connectors, Copper wire, Cleaning cloth
- Prepare the wire
Strip the insulation from the copper wire to the length specified in the tool chart, ensuring not to nick or damage the conductor strands.
- Clean the wire
Use a cleaning cloth to clean the stripped end of the wire to ensure a good connection.
- Insert the wire into the connector
Insert the stripped wire into the A1/0-12R-C connector until it reaches the stop.
- Crimp the connector
Using the appropriate crimping tool and die, crimp the connector by evenly spacing the crimps on the barrel, starting near the tongue end and moving towards the wire end.
- Verify the connection
Use a multimeter to check the continuity of the connection to ensure it is secure and functioning properly.
